VIA EPIA EK8000EG

PRODUCT IS CURRENTLY NOT AVAILABLE !

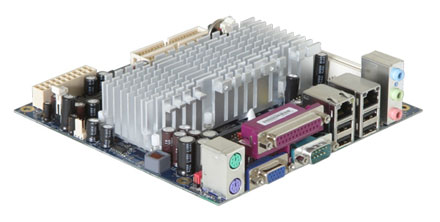

VIA EPIA EK8000EG
  • Fanless !

The VIA EPIA EK Mini-ITX mainboard is available with the 1GHz or fanless 800MHz VIA Luke CoreFusion™ processor platform and boasts a rich array of connectivity and digital media features to make possible a new generation of bandwidth efficient network devices focused on digital media applications.

Integrated into the VIA Luke CoreFusion™ processor platform is a host of digital media features including the VIA UniChrome™ IGP Pro graphics processor with MPEG-2/4 hardware decoding acceleration to enable smooth playback and transmission of digital media, as well as the VIA Vinyl VT1618 6-channel audio with VIA Smart5.1 Surround sound. Hardware security is availab
[more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Available in 1-3 days

4 von 5 Sternen
6 ratings

Add to cart

The VIA EPIA EK Mini-ITX mainboard is available with the 1GHz or fanless 800MHz VIA Luke CoreFusion™ processor platform and boasts a rich array of connectivity and digital media features to make possible a new generation of bandwidth efficient network devices focused on digital media applications.

Integrated into the VIA Luke CoreFusion™ processor platform is a host of digital media features including the VIA UniChrome™ IGP Pro graphics processor with MPEG-2/4 hardware decoding acceleration to enable smooth playback and transmission of digital media, as well as the VIA Vinyl VT1618 6-channel audio with VIA Smart5.1 Surround sound. Hardware security is available too, with the VIA PadLock Security Engine. Designed to offer real-time military-grade protection of data stored and exchanged, the VIA PadLock Security Engine enables developers to offload the computational process involved in complex encryption algorithms, freeing processor loading to handle more data faster.

Offering a flexible upgrade path from previous generations of VIA EPIA Mini-ITX mainboards, the VIA EPIA EK Mini-ITX mainboard sets new standards for flexibility and connectivity with dual LAN support that includes the option for a single Gigabit Ethernet port, as well as up to four COM and eight USB ports, a printer port, a PCI port, and Digital I/O (4 GPI/GPO). The mainboard also boasts both Serial and Parallel ATA support and utilizes DDR400 memory.

The VIA EPIA EK Mini-ITX has a maximum power consumption of just 19W, and is fully compatible with all Mini-ITX, FlexATX and MicroATX chassis and associated accessories such as the new VIA 120W DC-DC converter, external PCI riser card, VIA DVI interface and VIA LVDS panel support module, and is compatible with Microsoft® Windows® 2000/XP, XPe and CE, as well as Linux, making it the ideal platform for developers to create energy efficient always-on network based devices for digital media applications.

VIA EPIA EK-Series Mini-ITX Mainboard Specifications
Model Name • VIA EPIA EK10000G (1.0GHz VIA Luke CoreFusion™ Processor)
• VIA EPIA EK8000EG (800MHz VIA Luke CoreFusion™ Processor)
Chipset • VT8237R Series South Bridge
System Memory • 1 DDR 400 DIMM Socket
• Up To 1GB Memory Size
VGA • Integrated VIA UniChromeTM Pro AGP Graphics with MPEG-2/4 Decoding Acceleration
Expansion Slots • 1 PCI Slot
Onboard IDE • 2 UltraDMA 133/100/66 Pin Connectors
Onboard LAN • Fast Ethernet Controller (default) or optional VT6122 Gigabit Ethernet Controller
Onboard Audio • VIA VT1618 AC'97 Codec with 6-channel Support
Onboard I/O Connectors • 2 USB pin connector for 4 additional USB 2.0 ports
• 2 SATA connectors
• 1 Buzzer
• 1 CD Audio-in pin connector
• 1 Digital I/O pin connector
• 1 SM bus pin connector
• 1 Front-panel audio pin connector for MIC-in and Line-out
• 1 WP pin connector for BIOS flash
• 3 Serial port pin connectors for COM2/3/4 (5V/12V selectable)
• 1 CIR pin connector (switchable for KB/MS)
• 1 SIR pin connector
• 2 Fan pin connectors for CPU and System fans
• 1 LVDS/DVI module female header
• ATX power connector
Back Panel I/O • 1 PS2 mouse port
• 1 PS2 keyboard port
• 1 Parallel port
• 1 Serial port
• 1 VGA port
• 2 RJ-45 LAN ports
• 4 USB 2.0 ports
• 3 Audio jacks: Line-out, Line-in and MIC-in (Vertical, Smart 5.1 Support)
BIOS • Award BIOS, LPC 4/8Mbit flash memory
Operating System • Windows 2000/XP, Linux, Win CE, XPe
Software Application • VIA FliteDeck™ Luxurious Utility
• MissionControl-H/W Monitoring, Remote SNMP Management
• FlashPort-Live BIOS Flash
• SysProbe-Live DMI Browser
System Monitoring & Management • CPU temperature reading, CPU voltage monitoring
• Wake-on-LAN, Keyboard-Power-on, Timer-Power-on, Watch Dog Timer, Fan control
• System power management, AC power failure recovery
Operating Temperature • 0 ~ 50 ° C
Operating Humidity • 0% ~ 95% (relative humidity; non-condensing)
Form Factor • Mini-ITX (6 layers)
• 17 cm x 17 cm
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 6 ratings
4 von 5 Sternen from denizesen am 13.11.2008 | | See all my comments

Leistung nicht gerade berauschend, dafür bestes Preis-Leistungsverhältnis. Nicht besonders für mehrere Prozesse geeignet, die volle Last erzeugen. Ideal geeignet für Internet, MP3 und als PC für Anschluss an Video-Beamer (z.B. Power-Point). Sehr stromsparend, auch für Dauer-Betrieb ideal.

5 von 5 Sternen from AerTronics am 31.08.2008 | | See all my comments

Gute Beratung und Angebotserstellung via Email
Schnelle Ausfuehrung der Bestellung
Alles OK

4 von 5 Sternen from johan_braeken am 22.04.2008 | | See all my comments

Passive cooling means quiet computing.
It had an 800MHz CPU, which doesn't look like much, but sometimes it's enough.
It is my MythTV backend and it only needs to take mpeg streams for capture cards, and write it to disk. Not CPU intensive at all.
I used Gentoo Linux on this very good supported motherboard to squeeze all the performance out of it.
With 19W maximum this can be your eco-friendly home server.

3 von 5 Sternen from fuer am 28.03.2008 | | See all my comments

Das Via board ist auch im dauerbetrieb als Server geeignet. Die Temp. des Kühlkörpers auf der wärmsten Stelle überschreitet die 60° kaum. Ich habe das Board in keinem Gehäuse verbaut! Dieser PC dient als Webserver und ist rundum die Uhr im Einsatz. Die Performance begeistert mich noch immer. Suspend to Disk, Suspend To Ram alles Funktioniert einwandfrei. Das einzige was ich noch nicht geschafft habe ist im Suspend Mode den PC via Netzwerk (LAN) bzw. über USB Modem rauszuholen, ev. ist da noch ein BIOS Update nötig. Weiters hab ich es noch nicht geschafft mit den USB Stick zu booten! Aber sonsten alles toll!

5 von 5 Sternen from freirad am 20.12.2007 | | See all my comments

ich wollte ein kleines mainboard mit geringem stromverbrauch und akzeptabler leistung und habe es bekommen! :-)
