Jetway J9F2-Extreme (for Core Duo/Core Single)

PRODUCT IS CURRENTLY NOT AVAILABLE !

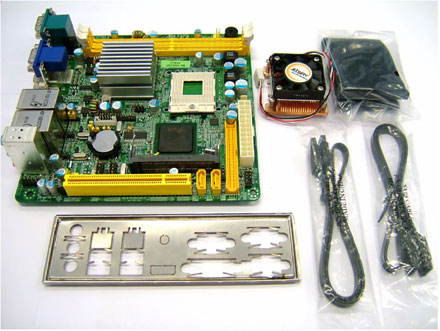

Jetway J9F2-Extreme (for Core Duo/Core Single)
  • Intel 945GM
  • VGA + DVI !
  • Mini-PCI slots
  • 2x COM Port !

- Intel 945GM+ICH7M chipset Technology
- Support Intel Core 2 Duo Mobile processor
- Support Front Side Bus 667MHz
- Dual Channel DDR2 667 Memory up to 2GB
- Support 2 Serial ATA2 Devices
- Dual Gigabit Ethernet LAN Support
- Dual COM Port
- DualView (VGA + DVI)
- 6 Channel HD Audio CODEC
- 1x Mini-PCI, 1x Mini-PCI Express




Share

169.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
13 ratings

Add to cart
Compare
CPU Intel Core Duo @ 533/667 FSB
Graphics Intel GMA 950
Formfactor ITX (17x17cm)
RAM 2x DDR-II 533/667
Audio Realtek 888 HD Codec
Base Intel ITX
USB 6x USB 2.0
Firewire 1x
IDE/SATA 2x IDE, 2x SATA
LAN 2x 10/100/1000
Parallel --
Serial 2x
yes TV-Out
yes PCI
yes Mini-PCI
yes IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
Form Factor
Mini-ITX 170 mm x 170 mm
CPU
Support Core 2 Duo, Core Duo, Core Solo Mobile Processor
Front Side Bus 667 / 533 Mhz
Package Type: Socket 479m
Memory
2 * Dual Channel 240-pin DIMM Sockets for unbuffered DDR2 667 up to 2GB
Chipset
Intel 945GM Express Chipset and ICH7M Chipset
Power Management
ACPI S3 Compliant , supports Power Saving Mode
PCI Enhanced IDE
2 * Ultra DMA 100 / 66 IDE Devices Support
Serial ATA Interface
2 * Serial ATA2 HDDs
VGA Interface
Intel Graphics Media Accelerator 950
Video Memory
Share Memory up to 224MB
LVDS Interface
Onboard 18-bit dual channel LVDS connector
Audio Interface
REALTEK ALC 888 6-Channel HD Audio CODEC
LAN Interface
Dual REALTEK RTL8111B 10 / 100 / 1000 PCI-E LAN
Extended Interface
1 * 32-bit PCI slot
1 * Mini PCI
1 * Mini PCI Express x1 Slot
Internal I/O Port
2 * High Speed USB Connectors @ 480 M-bit / s for 4 USB 2.0 Ports
1 * CPU Smart Fan Connector, 2 * DC Fan Connectors
1 * CD / AUX Audio in & SPEAK Out
1 * HDTV Output Connector
1 * LVDS Connector, 1 * LVDS Inverter Connector
1 * IEEE1394 Connector
1 * PS/2 connector for Keyboard and Mouse
1 * IrDA (CIR) (Need to purchase optional IR Receiver and Remote Control)
External I/O Port
4 * High Speed USB Connectors @ 480 M-bit / s
1 * DVI-D Port
1 * D-sub 15-pin VGA Connector
1 * HDMI Port
2 * RJ45 Connector and 2 * Serial COM Ports
1 * Mic-In connector, I * Audio input connector, 1 Audio Output connector.
BIOS
Award 8 MB Flash ROM
Power Requirement
Standard 24-pin ATX Compliance Power Supply
Dimension
170mm x 170mm
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 13 ratings
5 von 5 Sternen from gponcon am 04.12.2009 | | See all my comments

Très satisfait par cette carte, avec ses 2 connecteurs réseau, intéressant pour mettre en place une passerelle. La documentation en revanche est un peu lite. Utilisé avec un Intel Core2duo, pas très fanless.

4 von 5 Sternen from RicardoOliveira am 22.08.2009 | See all my comments
3 von 5 Sternen from Korger am 16.07.2009 | | See all my comments

Produkt einwandfrei, Lieferung auch bei dringenden Bedarf sehr kooperativ und professionell

5 von 5 Sternen from Erik_VideONet am 24.02.2009 | | See all my comments

Stacked with "goodies" like dual LAN, Dual Com-ports, PCI.

4 von 5 Sternen from dmoftalmica am 29.01.2009 | | See all my comments
