CALU-M2C - P4-M Car-PC Barebone (with Autostart-controller, car-adapter) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !

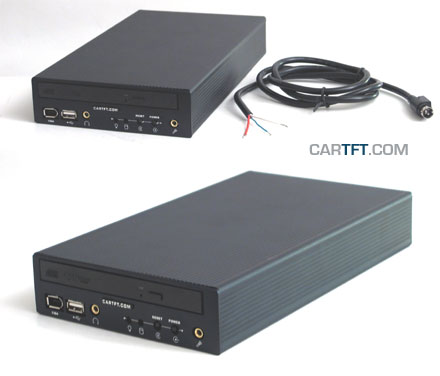

CALU-M2<b>C</b> - P4-M Car-PC Barebone (with Autostart-controller, car-adapter) *new*
  • For Celeron-M/Pentium-M
  • Integr. Autostart Controller
  • Integr. Automotive power

The CALU-M(2)C-Series has an integrated car-power supply (direct connectable to car battery and ignition plus + integrated automatic Start/Stop-Controller.

The time intervals for automatic Start and Stop can be adjusted in the BIOS of the PC !



Installation Tutorial : Support / Manuals

Graphics driver for 800x480 resolution : Here


Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

3 von 5 Sternen
2 ratings

Add to cart
Compare
CPU Intel Pentium-M/Celeron-M @ 400 FSB
Graphics Intel Extreme Graphics
Formfactor Barebone
RAM 2x DDR 266/333/400 low-profile
Audio AC97 Codec
Base Intel
USB 3x USB 2.0
Firewire 1x
IDE/SATA 2x IDE
LAN 1x 10/100
Parallel 1x
Serial 1x
no TV-Out
no PCI
no Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
no SATA
yes CPU changeable
no Compact Flash
CALU specifications
Processor (supported) Intel Pentium M processor or Celeron M processor (Dothan or Banias) 1.3GHz or higher
Memory Supports DDR 333/266 DIMM RAM
0.8" low profile
2x memory slots !
Maximum : 2 GB
Video Intel Extreme Graphics 2
Supports up to 64MB DVMT video memory
Audio Software AC '97 Audio CODEC
Peripheral Connection Front :
1 x IEEE 1394 Firewire port
1 x USB 2.0 / 1.1 Port
1 x MIC Port
1 x Ear Phone output Jack
Power-on button
Reset button
Power-on and HDD LED

Rear :
1 x RS232 COM port
1 x parallel printer port
1 x RJ45 10/100Mb Fast Ethernet
1 x Line-Out output Jack
2 x USB 2.0 / 1.1 Ports
1 x 15 pin VGA
Storage One 2.5 inch Hard Disk and 9.5mm high.
(Support Ultra DMA 33/66/100).
Weight & Size System approximately 3kg (fully equipped).
System Dimension: 155 x 255 x 55 mm
Power req. 9-16V, 5A
Accessory
Storage Supports all Standard Slim CD-ROM/DVD-ROM, CD-RW, DVD-RW Combo
Supports all 2.5" standard IDE hard drive, ATA-100/66/33.
Scope of supply Connector cable for Plus, ignition plus and ground
Barebone
CPU Kühlkörper
Data sheet Download (PDF)
Data sheet Print view
Assembling Tutorial [DE] Download (PDF)
Assembling Tutorial [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 3 von 5 Sternen
Average rating, based on 2 ratings
3 von 5 Sternen from ilmeister am 17.06.2008 | | See all my comments

Sehr empfehlenswert sehr stabil, und wird nicht heiss

3 von 5 Sternen from SupaMonkey am 14.05.2008 | See all my comments

Brilliant device - small and versatile, and has all the extra functionality you could possibly want. From auto start to an integrated power supply so you dont have to worry about buying extra things to get this baby to work!
