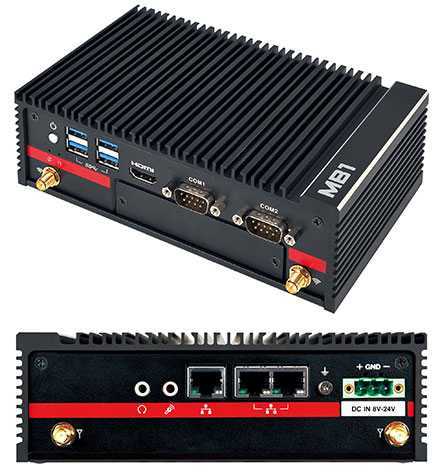

Mitac MB1-10AP-N3350 (Intel Apollo Lake N3350 2x 2.4Ghz, 3x LAN, 2x RS232) [FANLESS]

Mitac MB1-10AP-N3350 (Intel Apollo Lake N3350 2x 2.4Ghz, 3x LAN, 2x RS232) [<b>FANLESS</b>]
  • Intel Apollo Lake !
  • 2x Gigabit LAN !
  • Fanless !
  • Modular !

MiTAC's MB1-10AP Embedded Box PC is the next generation box pc with Intel® Apollo Lake processor. The whole new SOC structure packs more powerful capability for your tasks or applications.

The MB1-10AP’s 1.5 liter fan-less chassis design and expandable module design give it the flexibility to adapt to every workspace and environment, whether implemented as an Embedded Box PC. Din Rail mount support allows it to be used in factory environment and application. VESA mount support allows for space-saving and rear-mounting on flat-screen displays. Flexibilities also mean a rich array of I/O ports (including 3 x Ethernet RJ45, 4 x USB 3.0, 1 x HDMI, 2 x RS232/422/485, 1 x 3PI
[more]

Share

349.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart

MiTAC's MB1-10AP Embedded Box PC is the next generation box pc with Intel® Apollo Lake processor. The whole new SOC structure packs more powerful capability for your tasks or applications.

The MB1-10AP’s 1.5 liter fan-less chassis design and expandable module design give it the flexibility to adapt to every workspace and environment, whether implemented as an Embedded Box PC. Din Rail mount support allows it to be used in factory environment and application. VESA mount support allows for space-saving and rear-mounting on flat-screen displays. Flexibilities also mean a rich array of I/O ports (including 3 x Ethernet RJ45, 4 x USB 3.0, 1 x HDMI, 2 x RS232/422/485, 1 x 3PIN Terminal Block Power Input, 1 x Expansion Socket) to add a variety of peripherals. Storage expandability is supported for high-density hard drives in 2.5" HDD bracket design. Two mPCIe (one shared with mSATA) slots provide the support of SSD and wireless interfaces which allow effortless connection to Wi-Fi and Bluetooth networks, and 4G connectivity. HDMI and one additional expansion display module extend your visual experience with support for dual displays.

Optional Modules
MS-01VGA-D10 VGA Port Expansion Module
MS-01DVI-D10 DVI-D Port Expansion Module
MS-01DPN-D10 DisplayPort Expansion Module
MS-02COM-D10 Expansion Module with 2 x RS232 / 422 / 485
MS-08DIO-T10 Expansion Module with 8-bit Isolated DIDO (4 x DI, 4 x DO)

MB1-10AP (MB1-10AP) Specifications
MECHANICALTHERMAL DESIGNFanless
MOUNTINGWallmount / 100 mm x 100 mm VESA Mount & Din Rail Mount Combo Kit (Optional))
DIMENSIONS (W X D X H)6.9” x 4.1” x 2.2” (170 x 105 x 57 mm)
WEIGHT1.3kg (2.8 lb)
MATERIALTop cover: Aluminum Alloy / Bezel and chassis: Steel
SYSTEMCPUIntel® Apollo Lake-M N4200 / N3350 Processor
CHIPSETIntel® SoC Integrated
SYSTEM MEMORYDDR3L 1866 MHz / 1 x 204-pin SO-DIMM / Max. 8GB (Non-ECC)
GRAPHICSIntel® HD Graphics
DISPLAY INTERFACEHDMI 1.4 / Optional DisplayPort/VGA/DVI-D by Expansion Module
STORAGE SLOT1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x mSATA
ETHERNET2 x Intel® I210-IT Giga LAN (2 x PoE LAN: Optional) / 1 x Realtek RTL8154 LAN (Up to 480Mbps)
AUDIORealtek® ALC662
I/O CHIPSETNuvoton NCT6116D
TPMNuvoton NPCT750AAAYX TPM2.0 (Optional)
EXPANSION SLOTLTE/Wireless: Mini PCIe Full size (USB / PCIe), w/ SIM Card Holder (w/ Full to Half size adapter plate) / Storage: mPCIe Full size (USB / PCIe / SATA)
INTERNAL SPEAKER1 x Buzzer
INDICATORPower Button / Power LED / HDD LED
FRONT I/O1 x HDMI 1.4 / 4 x USB 3.0 / 2 x SMA Antenna (Optional for WiFi/LTE function) / 1 x Xpansion Module Door / 2 x RS232 / 422 / 485 (Support Power 5V / 12V)
REAR I/O3 x RJ-45 / 1 x Mic-in / 1 x Line-out / 1 x 3-pin Terminal Block Power Input / 2 x SMA Antenna (Optional for WiFi/LTE function)
WATCHDOG TIMER1~255 steps by software program
POWER REQUIREMENTPOWER INPUT8~24V Wide Range DC Input w/ Terminal Block Connectivity
POWER ADAPTEROptional
ENVIRONMENTALOPERATING TEMPERATURE-25°C to 70°C (For non-PoE SKU) / -25°C to 60°C (For PoE SKU) / with 0.7m/s Air Flow and Wide Temperature Memory/Storage
OPERATING HUMIDITY10% ~ 90% R/H (Non-condensing)
VIBRATION RESISTANCEOperating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64)
SHOCK RESISTANCEOperating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27)
CERTIFICATIONCE / FCC Class A
OSOS SUPPORTWindows® 10 64-bit / Linux (support by request)
PACKING LISTPACKAGE1 x Driver CD / 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets (2PCS in 1 set) / 1 x 3 pin Terminal Block Power Connector / 1 x Full to Half Size mPCIe Card Adapter Plate
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
Specifications Download (PDF)
Expansion modules Download
Dimensions Download
