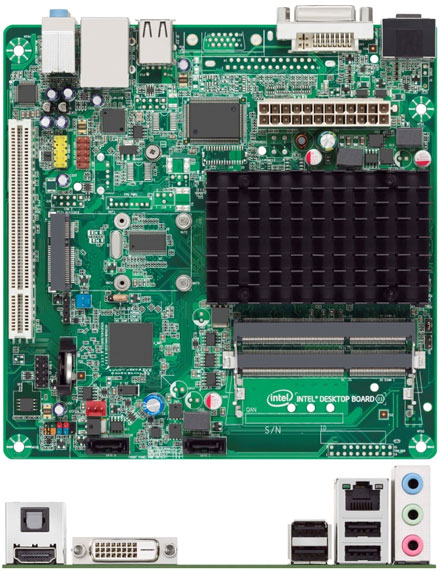

Intel D2700DC (Intel Atom 2x 2.13Ghz CPU, HDMI) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D2700DC (Intel Atom 2x 2.13Ghz CPU, HDMI) [<b>FANLESS</b>]
3D 360° View
  • Mini-PCI-Express !
  • 2x 2.13Ghz !
  • Hyper-Threading !
  • HDMI !

- Dual-core Atom with Hyper Threading
- 1080 High-Definition playback
- Cost competitive entry-level HTPC



Share

89.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
9 ratings

Add to cart
Compare
CPU Intel Atom D2700 2x2.13GHz
Graphics Intel GMA
Formfactor ITX (17x17cm)
RAM 2x SO-DDR-III
Audio 5.1 Channel HD Audio
Base Intel ITX
USB 7x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100/1000
Parallel --
Serial --
no TV-Out
yes PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
Name D2700DC
Form Factor Mini-ITX Mainboard
CPU Intel® Atom™ D2700 (2x 2.13GHz)
1MB Cache, With Hyper-Threading
Chipset Intel NM10 Express
Graphics DVI-D + HDMI
Memory 2x SO-DDR3 800/1066, 4GB max, Single channel
Power 24 Pin ATX
LAN 1x Intel 10/100/1000 MBit
Connectors (rear) - 4x USB 2.0
- 1x LAN RJ-45
- 3x Audio
- 1x DVI-D
- 1x HDMI
- 1x SPDIF
Audio 5.1 Channel HD Audio
Connectors (internal) - 2x SATA-II (3GB/s)
- 3x USB 2.0
- 1x PCI
- 1x Mini-PCIe
- Front Audio
Included - D2700DC Mainboard (with 2x 2.13Ghz Atom CPU)
- I/O ATX rear plate
- SATA cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
Cedar Trail Review [DE] Download (PDF)
Cedar Trail Review [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 9 ratings
4 von 5 Sternen from Acrobat am 17.01.2014 |

alles BESTENS - Sehr schnelle Lieferung!

3 von 5 Sternen from grigoridav am 10.06.2013 | | See all my comments

1. There is no driver available for video accelerator on Windows XP. Using Intel EMGD utility, i got no success to make working the DVI output.
2. The BIOS config interface is not good at all.
3. The INTEL CD with drivers does not work on French version of XP => manual install
4. I did not got yet success to have power LED working with this board on M350.

The only plus = it is silent.

4 von 5 Sternen from verlinde9 am 03.01.2013 | | See all my comments

Good board but watch out for Direct9.0 -> Is for example NOT compatible with Mediaportal (team-mediaportal). Had to put in a PCI card for HDMI output!.

4 von 5 Sternen from slesvig am 09.04.2012

Greetings
I wanted a "silent" HTPC. I found firstly it would not accept 2 X 2Gb sodimms so had to put in 1 X 4Gb . Secondly the graphics would not be recognised by Power DVD 9 only 12. Another £80/£90. Thirdly playback was not too good. Fourthly on a 22inch 1920X1080 picture was not good.
Otherwise for general browsing etc it was ok.
I am not a fan.
