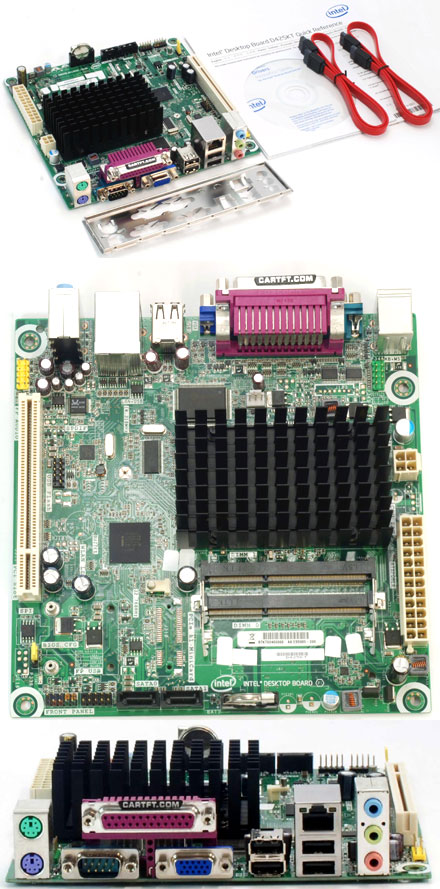

Intel D425KT (with integrated Atom 1x 1.8Ghz CPU) [FANLESS] (Remnant)

PRODUCT IS CURRENTLY NOT AVAILABLE !

Intel D425KT (with integrated Atom 1x 1.8Ghz CPU) [<b>FANLESS</b>] (Remnant)

3D 360° View

Remnant with I/O shield, 1x SATA cable, driver CD, manual. 2 years warranty.

Intel® Desktop Board D425KT with integrated Intel® Atom™ processor D425 and the Intel® NM10 Express Chipset enables low-power consumption and reduces the package footprint by 70 percent. The board also features 10/100 integrated LAN and USB Solid State Drive (SSD) keep-out-zone design – an ideal combination for a diskless usage model.

With breakthrough low-power silicon, the Intel Desktop Board D425KT can also be used with a passive thermal solution based on the recommended boundary conditions.

While this desktop board is small in size, it delivers a powerf [more]

79.95 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Compare

CPU	Intel Atom D425 1x1.8Ghz
Graphics	Intel GMA 3150
Formfactor	ITX (17x17cm)
RAM	2x DDR-III 800/1066
Audio	Realtek High Definition Audio
Base	Intel ITX

USB	8x USB 2.0
Firewire	--
IDE/SATA	2x SATA
LAN	1x 10/100
Parallel	1x
Serial	1x

no	TV-Out
yes	PCI
no	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

yes	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

Name	D425KT
Form Factor	Mini-ITX Mainboard
CPU	Intel Atom D425 @ 1x 1.8GHz
Chipset	Intel NM10 Express
L2 Cache	2x 512kb
Graphics	Intel GMA 3150
Memory	2x SO-DDR3 800/1066 RAM (bis zu 4GB)
Power	24 Pin ATX
Connectors (rear)	- 1x D-SUB15 (VGA) - 4x USB 2.0 - 3x Sound (Line Out, Line In, Microphone) - 1x LAN 10/100 MBit - 1x PS/2 - 1x RS232 - 1x Parallel
Audio	Realtek High Definition Audio
Connectors (internal)	- PCI - 4x USB - 1x USB f. SSD/Flash card - 2x SATA
Included	- D425KT Mainboard (with 1x 1.8Ghz Atom CPU) - I/O ATX rear plate - 2x SATA cable - Quickstart-Guide - Drivers CD

Data sheet	Download (PDF)
Data sheet	Print view
Review [DE]	Download (PDF)

Please login for creating product ratings.

Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: Average rating, based on 2 ratings

from josef_fmte am 16.11.2010

Im Vergleich zum D410PT, welches alleine mit dem 20 poligen ATX Stecker startet, benötigt man für das D425KT auch noch den 4-Poligen P4-Stecker der separat anzuschließen ist (vielleicht ist er bei benutzung des 24poligen atx steckers nicht notwendig, das konnte ich nicht testen).
Auf alle Fälle kann man das Board daher nicht mit den 20poligen PICOPSUs benutzen. Mit dem M2-ATX gehts hingegen einwandfrei, sobald man zusätzlich zum 20poligen kabel noch den 4 poligen P4 Anschluss einsteckt.
Wer eine Embedded Anwendung mit dem D410PT betreibt, kann ohne Treiberinstallationen auf das D425KT wechseln, lediglich ein Neustart ist erforderlich.
