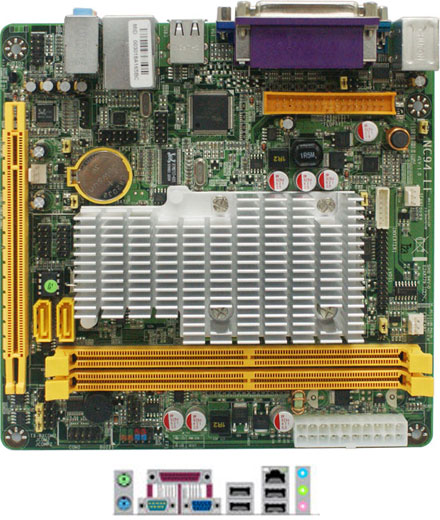

Jetway NC94FL-525-LF (with integrated Atom 2x 1.8Ghz CPU) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NC94FL-525-LF (with integrated Atom 2x 1.8Ghz CPU) <b>[FANLESS]</b>
  • Dual-Core !
  • Intel Atom !
  • GPIO
  • FANLESS !

The Jetway NC94FL-525-LF is an alternative mainboard for Intel D525.





Share

104.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
1 ratings

Add to cart
Compare
CPU Intel Atom D525 2x 1.8Ghz
Graphics Intel GMA 3150
Formfactor ITX (17x17cm)
RAM 2x DDR-II 677/800
Audio Realtek ALC662
Base Intel ITX
USB 8x USB 2.0
Firewire --
IDE/SATA 2x SATA
LAN 1x 10/100
Parallel 2x
Serial 2x
yes TV-Out
no PCI
no Mini-PCI
no IDE
no DVI
yes 800x480 Resolution
yes Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash
CPU INTEL ® Atom Processor D525 (45nm,1.80GHz,1024MB L2 Cache)
Chipset INTEL® Atom Processor D510 / D525 + NM10 Express Chipset
Memory 2 * 240-pin DIMM Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Expansion Slots 1 * PCI-E x16 slot (by 4)
Storage 2 * Serial ATA2 3Gb/s connectors
1 * Floppy connector
Audio Realtek ALC662 6-Channel HD Audio CODEC w SPIF in and out
Ethernet LAN INTEL 82552V 10M/100M LAN
USB Embedded 8 * USB 2.0/1.1
Special Features - Intel Atom Processor D525
- Support DC FAN
- Support CPU Smart Fan
- Support Watch Dog Technology
Rear Panel I / O - 4 * USB 2.0/1.1 ports
- 1 * COM port
- 1 * Parallel port
- 1 * PS/2 Mouse & 1 * Keyboard connector
- 1 * RJ-45 port
- 3 * Audio I/O ports ( Line-in, mic and line-out )
- 1 * VGA port
Internal I / O - 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
- 3 * NB / Chassis Fan connectors;
- 1 * 20-pin ATX Power connector
- 1 * GPIO header
- 1 * 18-bit Single Channel LVDS header
- 1* CD IN
- 1*LPC
- 1 * AUDIO header
- 1* RS232/RS422/RS485 connectors
BIOS Award 8MB SPI Flash ROM
Form Factor Mini ITX Form Factor(17cmx17cm)
Scope of supply - Jetway NC94FL-525-LF ITX Mainboard
- DriverCD
- Manual
- 1x SATA cable
- ATX I/O shield
Data sheet Download (PDF)
Data sheet Print view
Specifications [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from daggett29 am 12.12.2010 | | See all my comments

super teil läuft bei mir mit 512 MB und win xp sp 2 einwandfrei
