BACK : VGA Touchscreen

CTF846 - VGA 8" TFT - Touchscreen USB - Video - Autodimmer - USB-HUB - Audio [<b>LED-Backlight</b>] CTF846 - VGA 8" TFT - Touchscreen USB - Video - Autodimmer - USB-HUB - Audio [LED-Backlight]
Stock situation : in stock

Auto-Dimmer !
Audio speakers !
USB-HUB !
LED-Backlight !

Data sheet Print view


. 319.00 EUR . incl.19% VAT plus shipping

CTF846 - VGA 8" TFT - Touchscreen USB - Video - Autodimmer - USB-HUB - Audio [LED-Backlight]

Front view

Rear view

Complete view

LCD Size

Aspect ratio Height to Width

Capable PC-VGA resolutions

Physical TFT resolution (=native resolution)

Amount of showable pixel modes (RGB(=3)x native resolution)

Maximum backlight in nits or cd/m²

VGA connector

Amount of video inputs and standard

Amount of audio inputs

Touchscreen connector

Color of display housing

Power input range (12VDC=car, 24VDC=lorry)

Power consumption

Housing dimensions

Visible LCD area

Certifications

Weight (only display)

Adjustable LCD backlight

Display can turn on/off automatically, depending on signal status

Picture-in-picture capability

Infrared remote control unit for display

Incl. headrest mounting unit

Incl. touchscreen control pencil

Earphone output

Adjustable aspect ratio in video mode (4:3 or 16:9)

Mirrorable video picture (video-mode)

Input for rear camera

Displays are tested for dead pixels prior to shipping.

.TFT-Display

Front		Rear

Full

.Specifications

LCD Size	8"	Aspect Ratio	4:3

VGA Resolutions	640x480-1920x1080	Physikal resolution	800x600

Dot resolution	2400x600	Brightness	600

VGA Input	D-SUB 15	Video Input	3x PAL/NTSC (RCA)

Audio Input	2x RCA (Stereo)	Touchscreen	USB

Case color	black	Power Input	12-24VDC

Power Consumption	9W	Case size	232 x 162 x 36 mm

Visible area	162 x 122 mm	Certificates	CE, E1

Weight	0	Bauform	On-Dash

Warranty months	24

.Features

Adjustable backlight		Auto Power-On

Picture In Picture		IR Remote

Headrest mount		TS pencil

Earphone		Adjustable video aspect

Mirrorable video		Reverse camera input

Additional informations :

New on 26.04.2009:
- 5-wire Touchscreen (instead of 4-wire)

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTF-846 TFT-Display is the latest development from CarTFT.com and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has an integrated speaker, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

On the rear side you also will find a free USB-port, which you can use with any USB-device you want. The connection to the PC happens with the same cable, which connects the touchscreen !

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-846 can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..

Spezifications
Screen size	8" digital
Aspect Ratio	4:3 wide TFT screen
Dot Resolution	2400x600= 1,440,000 dots
Physical Resolution	800x600
Supported Resolutions	640x480-1024x768
Color configuration	RGB stripe
Power input	DC 12/24V
Power consumption	max. 10W
Video system	3x Video inputs (PAL/NTSC) 1x VGA input
Dimensions	Display Case : 232mm x 162mm x 36mm Display : 162 x 122 mm
Video input signal	1.0Vp-p, composite video
Brightness	600 cd/m²
Contrast	500:1
Vibration	IEC68-2-6
Operating Temperature	-30° to 85°C
Features	Full function OSD control (englisch)
	Built-in speaker
	free USB-port (rear side)
	Auto-Dimmer for TFT backlight
	Auto Power On/Off
	5-wire touchscreen
	VESA compliant mounting holes (75mm) + metal rail
	LED backlight
	Automatic switching to rear camera (signal sensing on AV3)

What is included ?	- 8" VGA Touchscreen TFT with Video/Audio-support
	- Infrared Remote Control
	- Car dash mounting bracket
	- Touchscreen pencil
	- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2.5 meters length
	- Power Adapter f. EU 230V
	- Cigarette Lighter Adapter
	- Touchscreen Driver-CD
	- Manual

BACK

.Support files

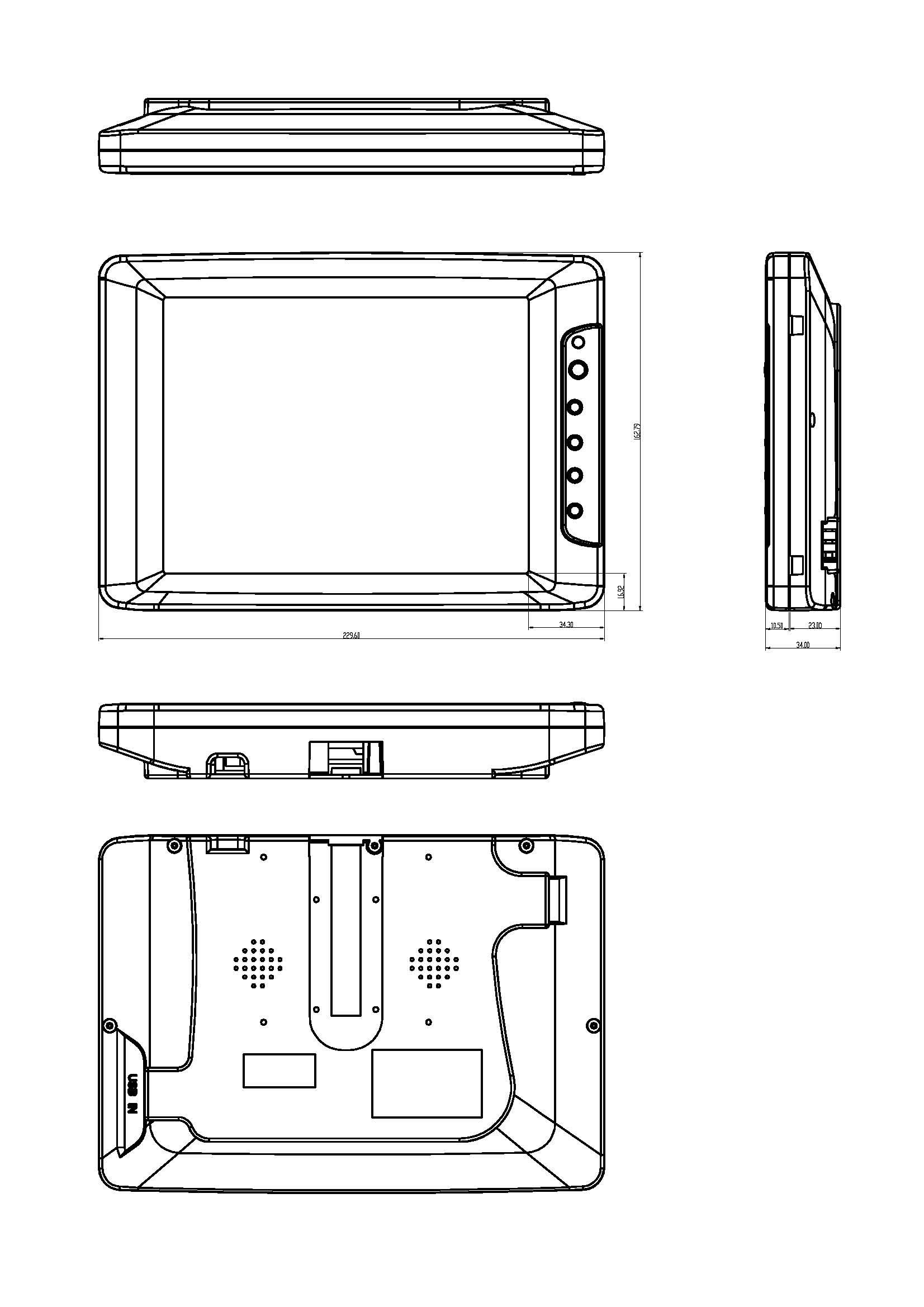

			Drawing

.Customer ratings from CarTFT.com
Product-Link

HuDiNi | 30-07-2011 |

Die Touch-Funktion dieses Monitors ist top. Bemängeln möchte ich jedoch die offensichtlich falsche Angabe zur Helligkeit. Ich habe zum Vergleich ein 380nits-Hitachi-Display herangezogen. Das Displa More

Moersl | 27-06-2011 |

Perfektes Bild, Touchsreen-Funktion ist ebenso tadellos. Und Bisher hab im weder Kälte noch starke Hitze durch direkte Sonneneinstrahlung probleme bereitet. Die automatische Umschaltung des AV3 für di More

efred | 28-03-2011 |

Top Monitor. Unter Linux hatte ich zuerst Probleme, aber mit dieser Anleitung geht's problemlos: http://bit.ly/eqIepv
