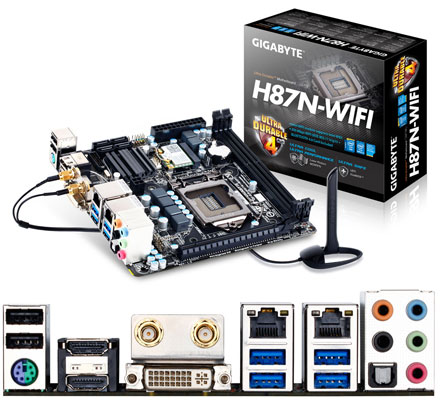

Gigabyte GA-H87N-WIFI (for i3, i5, i7 [Sockel LGA1150], Haswell, 2x LAN, 2x HDMI, WLAN/BT, Intel Wireless Display) *new*

PRODUCT IS CURRENTLY NOT AVAILABLE !
Gigabyte GA-H87N-WIFI (for i3, i5, i7 [Sockel LGA1150], Haswell, 2x LAN, 2x HDMI, WLAN/BT, Intel Wireless Display) *new*
3D 360° View
  • Intel WiFi, Intel WiDi !
  • Dual Gigabit LAN !
  • Gigabyte Features !
  • Intel Haswell !

  • Supports 4th Generation Intel® Core™ processors
  • Mini ITX Form Factor (17*17cm)
  • GIGABYTE Ultra Durable™ 4 Plus Technology
  • Supports Intel® WiFi/ WIDI technology
  • Integrated Bluetooth 4.0 and Intel Wi-Fi module
  • GIGABYTE Hybrid digital power engine
  • GIGABYTE UEFI DualBIOS™
  • GIGABYTE 333™ Onboard Acceleration (USB 3.0, SATA 3.0 & 3x USB Power)
  • GIGABYTE On/Off Charge™ for USB devices
  • Dual LAN with high ESD Protection
  • Dual HDMI 1.4 and DVI-I ports
  • Intel® Small Business Advantage


Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart
Compare
CPU LGA1150
Graphics Intel HD Graphics
Formfactor ITX (17x17cm)
RAM 2x DDR-III
Audio Realtek ALC892 7.1
Base Intel ITX
USB 4x USB2.0, 6x USB3.0
Firewire --
IDE/SATA 4x SATA 6Gb/s
LAN 2x 10/100/1000
Parallel --
Serial --
yes TV-Out
no PCI
yes Mini-PCI
no IDE
yes DVI
yes 800x480 Resolution
no Passive-Cooling
yes PCI-Express
no PCMCIA
yes SATA
yes CPU changeable
no Compact Flash
CPU
    Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package L3 cache varies with CPU
(Please refer "CPU Support List" for more information.)
Chipset
    Intel® H87 Express Chipset
Memory
    2 x 1.5V DDR3 DIMM sockets supporting up to 16 GB of system memory
    * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3 1600/1333 MHz memory modules Support for non-ECC memory modules Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard GraphicsIntegrated Graphics Processor:
    1 x DVI-I port, supporting a maximum resolution of 1920x1200 2 x HDMI ports, supporting a maximum resolution of 4096x2160
    * Support for HDMI 1.4a version. Maximum shared memory of 1 GB
Audio
    Realtek® ALC892 codec High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
LAN
    Intel® GbE LAN chip (10/100/1000 Mbit)(LAN1) Atheros® GbE LAN chip (10/100/1000 Mbit)(LAN2)
    * Teaming is not supported.
Wireless Communication module
    Wi-Fi 802.11 b/g/n, supporting 2.4 GHz Single-Band Bluetooth 4.0, 3.0+HS, 2.1+EDR
Expansion Slots
    1 x PCI Express x16 slot, running at x16
    (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x mini-PCI Express slot for the wireless communication module
Storage InterfaceChipset:
    4 x SATA 6Gb/s connectors supporting up to 4 SATA 6Gb/s devices Support for RAID 0, RAID 1, RAID 5, and RAID 10
USBChipset:
    Up to 4 USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header) Up to 6 USB 3.0/2.0 ports (4 ports on the back panel, 2 ports available through the internal USB header)
Internal I/O Connectors
    1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 1 x USB 2.0/1.1 header 1 x serial port header 1 x S/PDIF Out header 1 x Clear CMOS jumper
Back Panel Connectors
    1 x PS/2 keyboard/mouse port 2 x HDMI ports 2 x antenna connectors 1 x DVI-I port 4 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 1 x optical S/PDIF Out connector 5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
I/O Controller
    iTE® I/O Controller Chip
H/W Monitoring
    System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS
    2 x 64 Mbit flash Use of licensed AMI EFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.0, SM BIOS 2.6, ACPI 2.0a
Unique Features
    Support for Q-Flash Support for Xpress Install Support for APP Center
    * Available applications in APP Center may differ by motherboard model. Supported functions of each application may also differ depending on motherboard specifications.
    @BIOS
    EasyTune
    EZ Setup
    Smart TimeLock
    USB Blocker Support for ON/OFF Charge Support for Wi-Fi Share Support for Cloud Station
Bundle Software
    Norton Internet Security (OEM version) Intel® Rapid Start Technology Intel® Smart Connect Technology Intel® Smart Response Technology Intel® Small Business Advantage Intel® Wireless Display
Operating System
    Support for Windows 8/7
Form Factor
    Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark
    Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP. If drivers are available from the vendors, we will update them on the GIGABYTE website.
