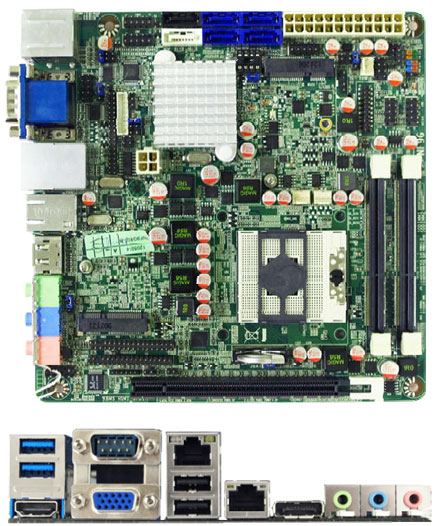

Jetway NF9G-QM77 (Intel Q77)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF9G-QM77 (Intel Q77)

  • Intel® QM77 Express Chipset
  • Supports Intel Core™ i3, i5, i7 Mobile Processors for Socket G (rPGA988)
  • 2 * Dual Channel DDR3-1333/1066 up to 16GB
  • Intel 82579LM & 82574L Gigabit LAN
  • Intel Active Management Technology ( iAMT 8.0)
  • PCI Express x16 Slot
  • Integrated 24-bit Dual Channel LVDS
  • 4-port SATAII 3Gb/s & 2-port SATA III 6Gb/s with RAID 0, 1, 5, 10 Support
  • HDMI, DP and VGA Video Outputs
  • Support Jetway PCI-E Daughter card
  • Built-in Watchdog Timer Technology
  • Mini-ITX Form Factor (170mm x 170mm)


Share

249.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
1 ratings

Add to cart
CPU Supports Intel Core™ i3, i5, i7 Mobile Processors for Socket G (rPGA988)
Chipset INTEL® QM77 Chipset
Memory 2 * SODIMM Sockets for un-buffered Dual CH DDR3 1333/1066 Max. up to 16GB
Expansion Slots 1 *PCIe x 16
2 * Mini PCI-E socket
Storage 2 * Serial ATA3 6Gb/s & 4 * Serial ATA2 3Gb/s connectors support RAID 0, 1, 5, 10
1 * mSATA socket (Selectable with full size Mini PCI-E socket)
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Intel 82579LM & 82574L PCI-E Gigabit Ethernet LAN
LVDS Onboard 24-bit dual channel LVDS connector
USB Embedded 6 * USB 2.0/1.1 & 4 * USB 3.0
Special Features Support ACPI S3
Support CPU Smart FAN
Support Watch Dog
Rear Panel I / O 2 * USB 2.0/1.1 ports & 2 * USB 3.0 ports
2 * RJ-45 port
1 * HDMI port
1 * COM port
1 * DP port
1 * VGA port
3 * Audio Phone Jack
Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports
1 * USB 3.0 headers for 2 USB 3.0 ports
CPU /NB / Chassis Fan connectors
3 * COM headers (COM4 for RS232/422/485)
1 * GPIO header
1 * CIR header
1 * Chassis Intrusion header
1 * AUDIO header
1 * 24-pin & 4-pin 12V ATX Power connectors
BIOS AMI EFI 64MB SMT Flash ROM
Form Factor Mini-ITX Form Factor (170mm x 170mm)
Functional ATM, Automation, Medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation, NAS
Certificate CE, FCC, RoHS
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Specifications Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 1 ratings
5 von 5 Sternen from 9IwcVl2sC am 07.03.2014 |

Super Mainboard für mobile CPU der 2. und 3. Generation.
Der incl. CPU Kühler taugt nichts ,dass ist aber normal.
Sehr schnelle Lieferung.

F.L
