BACK : VGA Touchscreen

CTF400-L - VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Autodimmer - Audio [LED-Backlight]
Stock situation : in stock

Auto-Dimmer ! Audio speakers ! Auto-PowerOn ! LED-Backlight !       Data sheet      Print view		. 329.00 EUR . incl.19% VAT    plus shipping

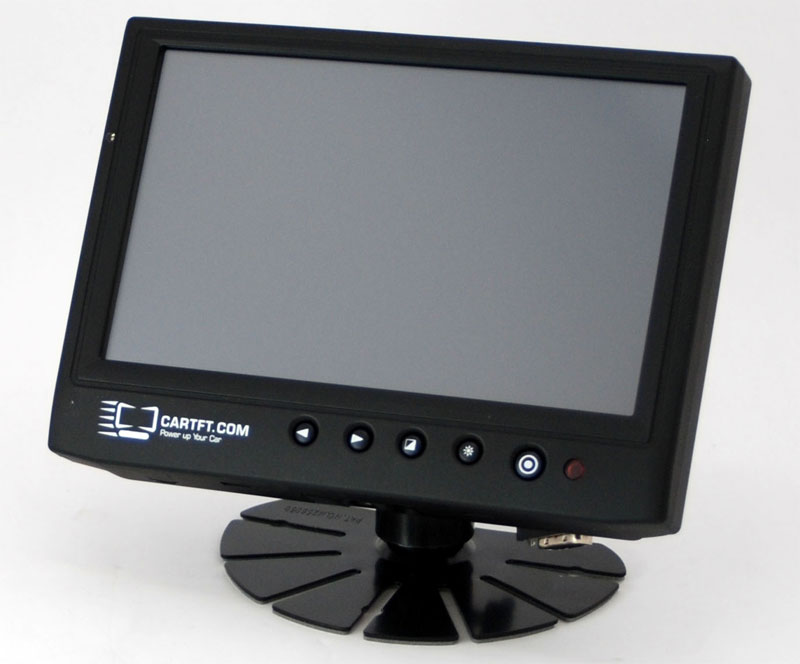

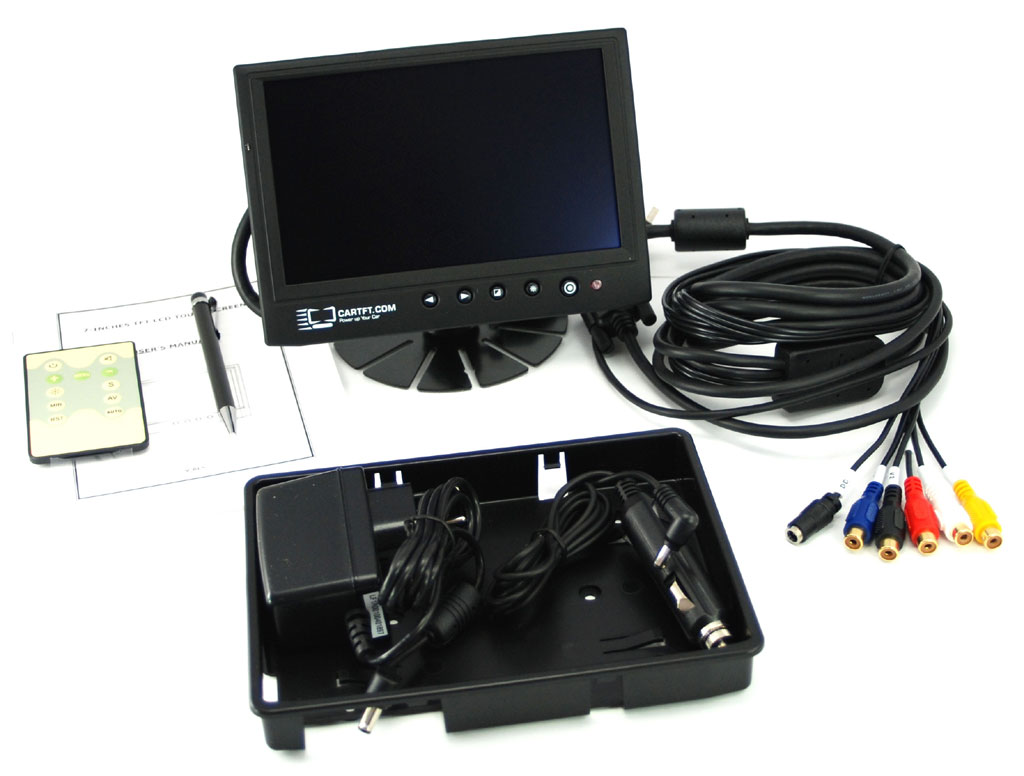

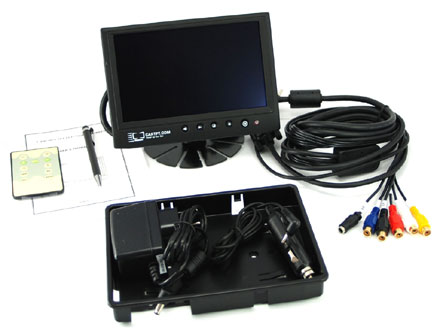

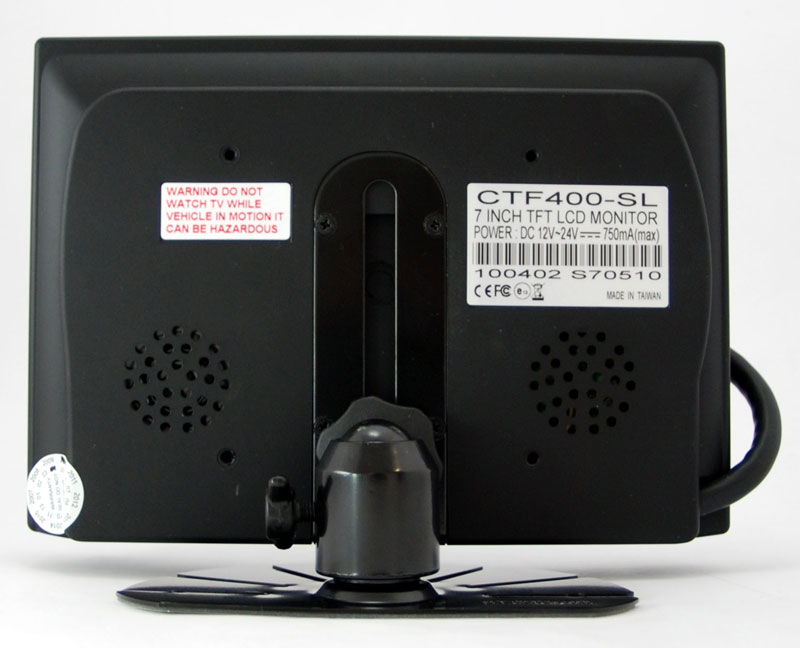

CTF400-L - VGA 7" TFT - Touchscreen USB - PAL/NTSC - IR Remote - Autodimmer - Audio [LED-Backlight] Front view Rear view Complete view LCD Size Aspect ratio Height to Width Capable PC-VGA resolutions Physical TFT resolution (=native resolution) Amount of showable pixel modes (RGB(=3)x native resolution) Maximum backlight in nits or cd/m² VGA connector Amount of video inputs and standard Amount of audio inputs Touchscreen connector Color of display housing Power input range (12VDC=car, 24VDC=lorry) Power consumption Housing dimensions Visible LCD area Certifications Weight (only display) Adjustable LCD backlight Display can turn on/off automatically, depending on signal status Picture-in-picture capability Infrared remote control unit for display Incl. headrest mounting unit Incl. touchscreen control pencil Earphone output Adjustable aspect ratio in video mode (4:3 or 16:9) Mirrorable video picture (video-mode) Input for rear camera Displays are tested for dead pixels prior to shipping. .TFT-Display Front Rear Full .Specifications LCD Size 7" Aspect Ratio 16:9 VGA Resolutions 640x480-1920x1080 Physikal resolution 800x480 Dot resolution 2400x480 Brightness 400 VGA Input D-SUB 15 Video Input 3x PAL/NTSC (RCA) Audio Input 2x RCA (Stereo) Touchscreen USB Case color black Power Input 12-24VDC Power Consumption 9W Case size 178 x 128 x 28 mm Visible area 154 x 93 mm Certificates CE, E1 Weight 0 Bauform On-Dash Warranty months 24 .Features Adjustable backlight Auto Power-On Picture In Picture IR Remote Headrest mount TS pencil Earphone Adjustable video aspect Mirrorable video Reverse camera input Additional informations : The new CTF-400-L TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness. New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner. The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night. AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable. The CTF-400-L can be used with any PC/MAC with VGA- and USB port. Driver-CD included, compatible with : - Windows 95/98/ME/NT4/2000/XP - XP Tablet PC Edition - Windows CE 2.12, 3.0, .net - Linux RedHat,Mandrake,.. - Macintosh OS 9.x, 10.x - DOS,.. Spezifications Screen size 7" digital Aspect Ratio 16:9 wide TFT screen Dot Resolution 2400x480= 1,152,000 dots Physical Resolution 800x480 Supported Resolutions 640x480-1920x1080 Color configuration RGB stripe Power input DC 12/24V Power consumption max. 8W Video system 3x Video inputs (PAL/NTSC) 1x VGA input Dimensions Display Case : 178x128x28 mm Display : 154 x 93 mm Video input signal 1.0Vp-p, composite video Brightness 400 cd/m² Contrast 350:1 Vibration IEC68-2-6 Operating Temperature -30° to 85°C Features Full function OSD control (englisch) Built-in Stereo-speakers Auto Power On/Off Auto-Dimmer VESA mounting holes (75mm) + metal rail Automatic switching to rear camera (by signal detection on AV3) What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support - Infrared Remote Control - Car dash mounting bracket + headrest mounting shroud - Touchscreen pencil - VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length - Power Adapter f. EU 230V - Cigarette Lighter Adapter - Touchscreen Driver-CD - Manual Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz
BACK

.Customer ratings from CarTFT.com  Product-Link
bkose | 20-07-2010 | Love this screen with LED background, there is almost no shine on screen with sun.
