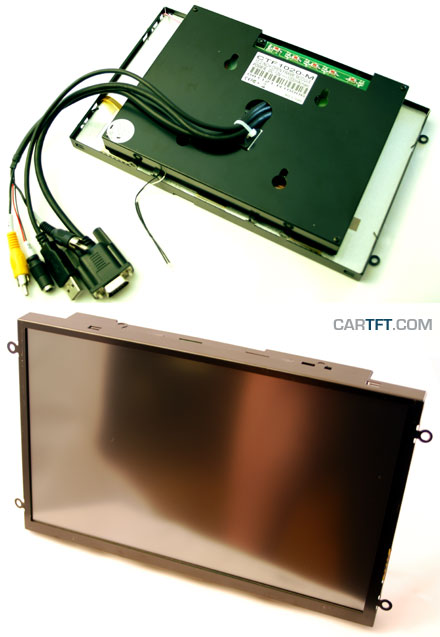

CTF1020-ML - VGA 10.2" TFT - Touchscreen USB - Video - OPEN-FRAME (LED Backlight)

CTF1020<b>-ML</b> - VGA 10.2" TFT - Touchscreen USB - Video - <b>OPEN-FRAME (LED Backlight)</b>
  • Open-Frame !
  • Auto Power On !
  • Auto-Dimmer !
  • LED Backlight !

Update (14.01.2014): Now with LED-Backlight !

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and butt
[more]

Share

349.00 EUR
incl. 19% VAT, plus shipping
In Stock (4 pcs)

4 von 5 Sternen
3 ratings

Add to cart

Update (14.01.2014): Now with LED-Backlight !

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

With the new Open-Frame TFT display-series from CarTFT you get back control : The ruggedized metal frame enables you a stable installation. The single modules (Mainboard, Touchscreen controller, Power inverter and button-frame) can be screwed off from the rear side and beeing positionated elsewhere. This way you can install the connector cables more easier and the display thickness shrinks also.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units):
- Speakers
- Different cable lengths
- Other display models/sizes
- Touchscreen RS232 instead of USB
- Other connector types
- [...] Ask us !


Additional informations :
With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

AC-Adapter for home usage and a car cigarette lighter adapter is included.

The CTF-1020-ML can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Spezifications
Screen size 10.2" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Brightness 400 nits
Contrast 400:1
Operating temperature -30°C to 85°C
Power input DC 9-30V
Power consumption max. 11W
Video system 2x Video inputs (PAL/NTSC)
1x VGA input
Dimensions 237.6 x 148.5 x 35.7 mm
Display : 223.9 x 135.11 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (english)
Auto-Dimmer
Auto Power On/Off
What is included ? - 10.2" VGA Open-Frame Touchscreen TFT with Video-support
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Dimensions Download (PDF)
800x480 Driver (Windows 7) Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 3 ratings
3 von 5 Sternen from sipilaju am 20.11.2009 | | See all my comments
3 von 5 Sternen from djelement am 18.09.2009 |

TFT & Rahmenkonstruktionsqualität überzeugen.
Bild bei Tageslicht sehr schlecht (spiegelt extrem).
Wenn das Bild besser wär, fänd ich den Preis akzeptabel.

4 von 5 Sternen from A-ToWn-sTyLe am 24.07.2009 | See all my comments

Das selbe wie beim CTF-400M nur in groß. Bild und Kontrast überzeugen, aber wenn dann ein bisschen die sonne draufleuchtet dann wird das Bild schwer erkennbar... leider ist der Preis etwas hoch, aber die Größe macht das ganze wieder wett! Am besten irgendwo lichtgeschützt einbauen und spaß damit haben ;)
