Intel D945GCLF (with integrated Atom 1.6Ghz CPU)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Intel D945GCLF (with integrated Atom 1.6Ghz CPU)
  • Intel Atom Silverthorne !
  • 1.6Ghz !
  • Intel Rapid BIOS Boot
  • 4x Rear USB 2.0

The Atom-CPU is a perfect basis for a low-cost system. It works very energy saving and therfor is perfect for mobile usage. But also can be used as a server, Car-PC or Multimedia solutions.

Atom-CPU mainly was developed for the upcoming „Mobile Internet Devices“ (MID), which are fielded between notebooks and cell phones. „The processors were equipped in 45nm production with the worlds smallest transistors“, said Intels Vice President Sean Maloney.

As IT-world currently is crying for „GreenIT“ schreit, this mainboard can be the answer. For example Intel was able to reduce the power consumption of the CPU from precessor D201GLY2
[more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
73 ratings

Add to cart
Compare
CPU Intel Atom 230 1.6Ghz
Graphics Intel GMA 950
Formfactor ITX (17x17cm)
RAM 1x DDR-II 533/667
Audio Realtek High Definition Audio
Base Intel ITX
USB 6x USB 2.0
Firewire --
IDE/SATA 1x IDE, 2x SATA
LAN 1x 10/100
Parallel 1x
Serial 1x
no TV-Out
yes PCI
no Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
no Passive-Cooling
no PCI-Express
no PCMCIA
yes SATA
no CPU changeable
no Compact Flash

The Atom-CPU is a perfect basis for a low-cost system. It works very energy saving and therfor is perfect for mobile usage. But also can be used as a server, Car-PC or Multimedia solutions.

Atom-CPU mainly was developed for the upcoming „Mobile Internet Devices“ (MID), which are fielded between notebooks and cell phones. „The processors were equipped in 45nm production with the worlds smallest transistors“, said Intels Vice President Sean Maloney.

As IT-world currently is crying for „GreenIT“ schreit, this mainboard can be the answer. For example Intel was able to reduce the power consumption of the CPU from precessor D201GLY2 from 20W to 2.05W, which is really incredible ! Here other mainboards can not compete with !



For Operating you need a P4 adapter or a PSU with P4 connector


Bootup-Durations :
- Cold boot : 29 sec.
- Standby : 3 sec.
- Hibernation : 21 sec.

Name D945GCLF
Form Factor Mini-ITX Mainboard
CPU Intel Atom 230 @ 1x 1.60GHz (Silverthorne 45nm)
Chipset Intel 82945G (ICH7)
L2 Cache 512kb
Graphics Intel GMA 950
Memory 1x DDR2 533/667 RAM
Power 20 Pin ATX, P4-connector
Connectors (rear) - 2x PS/2
- 1x Parallel
- 1x D-SUB15 (VGA)
- 1x RS232
- 4x USB 2.0
- 1x LAN 10/100MBit
- 3x Sound (Line Out, Line In, Microphone)
Audio Realtek High Definition Audio
Connectors (internal) - PCI
- Audio
- 2x USB
- 2x SATA
- 1x IDE

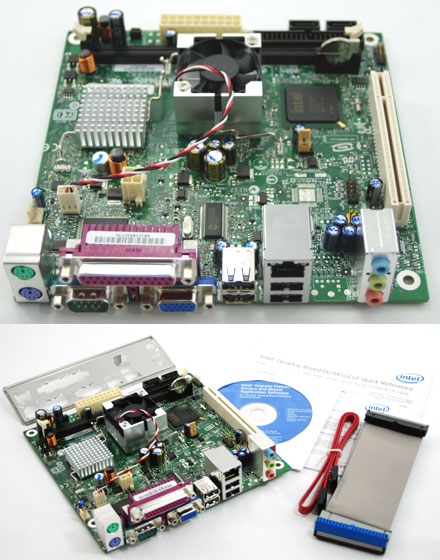

Included - D945GCLF Mainboard (with 1.6Ghz Atom CPU)
- I/O ATX rear plate
- SATA cable
- IDE cable
- Quickstart-Guide
- Drivers CD
Data sheet Download (PDF)
Data sheet Print view
Review [DE] Download (PDF)
Manual [EN] Download
Specifications [EN] Download
Review [EN] Download (PDF)
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 73 ratings
3 von 5 Sternen from tomren am 25.07.2008 |

Preis Leistung ist der Hammer!!!

Derzeitig eingesetztes Epia M-10000 Board hat Speicherzugriff von 8,5ns.

Das Intel D945GCLF 1,6 Ghz hat Speicherzugriff von 1,6ns.

Mein Test war Punkto Leistung mehr als erwartet.

Das BIOS unterstützt sämtliche varianten zum booten von usb in USB2.0 Geschwindigkeit.
Auserdem werden Sämtliche am USB erkannte Laufwerke eingehängt.

Stromverbrauch mit 160GB Sata Platte ist auf 230V Seite 44Watt.

Was ich dennoch schade finde ist das Board hat keine zweite RS232. und der Lüfter ist um 1cm zu hoch.

Update from :2010-08-03 07:03
Gutes Board!
Guter Preis!

Alles OK!

Bin sehr zufrieden mit dem Mainboard und mit der Firma!

5 von 5 Sternen from Scary89 am 25.06.2010 |
2 von 5 Sternen from xhaon am 23.03.2010 | See all my comments

Good motherboard for little jobs, low energy need, only need pci-e 1X and dvi ports.

5 von 5 Sternen from cschroe am 13.03.2010 | | See all my comments

Das Board ist top. Klein, leistungsstark und gut verarbeitet. Ich betreibe es mit einem Netzteil Typ picoPSU-90DC/DC, 2,5" Hitachi HDD 160GB, angeschlossen ist ein Fritz!-WLAN-USB-Stick, ein USB-Reciever der Tastatur, und während der Installtion von Windows 7 war zusätzlich ein DVD-+RW angeschlossen. Keinerlei Probleme. Das System läuft seit ca 3 Monaten. Als Monitot kommt ein 15"er zum Einsatz.

5 von 5 Sternen from bbygm91J am 17.02.2010 | | See all my comments

Bestes Preis/Leistungs-Verhältnis. Genau das was ich gesucht habe! Die Leistung ist sogar für die graphisch anspruchsvollsten CarPC Front-Ends allemal ausreichend. Und 3D Anwendungen oder Games laufen ja auf den wenigsten CarPCs. Absolut unschlagbar für mobile Anwendung (Auto, Boot, etc.) und sehr niedriger Stromverbrauch.
