CALU-MC-PCMCIA - P4-M Car-PC Barebone (with Autostart-controller, car-adapter) -- PCMCIA *FANLESS*

PRODUCT IS CURRENTLY NOT AVAILABLE !
CALU-M<b>C</b>-PCMCIA - P4-M Car-PC Barebone (with Autostart-controller, car-adapter) -- <b>PCMCIA</b> *FANLESS*
  • For Celeron-M/Pentium-M
  • Integr. Automotive PSU
  • PCMCIA
  • FANLESS carpc system

Fanless CarPC-barebone for use with Intel P4/Celeron M CPU.
Celeron-M 1.7Ghz is recommeded for fanless operation.

The CALU-M(2)C-Series has an integrated car-power supply (direct connectable to car battery and ignition plus + integrated automatic Start/Stop-Controller.

The time intervals for automatic Start and Stop can be adjusted in the BIOS of the PC !
As an additional highlight this barebone offers a PCMCIA slot.



Installation Tutorial : Support / Manuals

Graphics driver for 800x480 resolution : [more]

Share

409.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
1 ratings

Add to cart
Compare
CPU Intel Pentium-M/Celeron-M @ 400 FSB
Graphics Intel Extreme Graphics
Formfactor Barebone
RAM 2x DDR 266/333/400 low-profile
Audio AC97 Codec
Base Intel
USB 2x USB 2.0
Firewire 1x
IDE/SATA 1x IDE
LAN 1x 10/100
Parallel 1x
Serial 1x
no TV-Out
no PCI
no Mini-PCI
yes IDE
no DVI
yes 800x480 Resolution
yes Passive-Cooling
no PCI-Express
yes PCMCIA
no SATA
yes CPU changeable
no Compact Flash

Fanless CarPC-barebone for use with Intel P4/Celeron M CPU.
Celeron-M 1.7Ghz is recommeded for fanless operation.

The CALU-M(2)C-Series has an integrated car-power supply (direct connectable to car battery and ignition plus + integrated automatic Start/Stop-Controller.

The time intervals for automatic Start and Stop can be adjusted in the BIOS of the PC !
As an additional highlight this barebone offers a PCMCIA slot.



Installation Tutorial : Support / Manuals

Graphics driver for 800x480 resolution : Here

CALU specifications
Processor (supported) Intel Pentium M processor or Celeron M processor (Dothan or Banias) 1.3GHz or higher
Memory Supports DDR 400/333/266 DIMM RAM
0.8" low profile
2x memory slots !
Maximum : 2 GB
Video Intel Extreme Graphics 2
Supports up to 64MB DVMT video memory
Audio Software AC '97 Audio CODEC

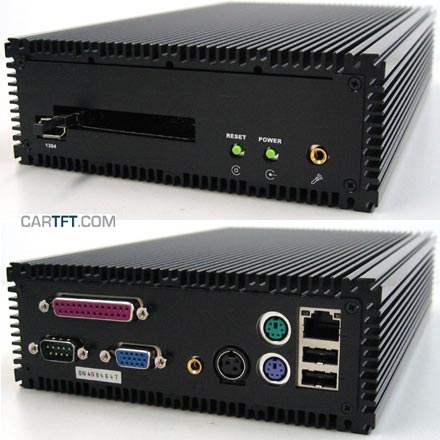

Peripheral Connection Front :
1 x PCMCIA Slot
1 x IEEE 1394 Firewire port
1 x MIC Port
1 x Ear Phone output Jack
Power-on button
Reset button
Power-on and HDD LED

Rear :
1 x RS232 COM port
1 x parallel printer port
1 x RJ45 10/100Mb Fast Ethernet
1 x Line-Out output Jack
2 x USB 2.0 / 1.1 Ports
1 x 15 pin VGA
Storage One 2.5 inch Hard Disk and 9.5mm high.
(Support Ultra DMA 33/66/100).
Weight & Size System approximately 3kg (fully equipped).
System Dimension: 155 x 255 x 55 mm
Power req. 9-16V, 5A
Accessory
Storage Supports all 2.5" standard IDE hard drive, ATA-100/66/33.
Scope of supply Connector cable for Plus, ignition plus and ground
Barebone
CPU Kühlkörper
Data sheet Download (PDF)
