CTF1020-WC - VGA 10.2" TFT - Touchscreen USB - Video - Autodimmer - Audio - Webcam

CTF1020-WC - VGA 10.2" TFT - Touchscreen USB - Video -  Autodimmer - Audio - Webcam
3D 360° View
  • Webcam !
  • Auto-Dimmer !
  • Auto-PowerOn !

The new CTF-1020 TFT-Display is the latest development from CarTFT.com and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

A special feature is the webcam which is integrated in the front (connected to PC via USB on same port as the touchscreen). With this camera you can video phone while on the road !

The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.
[more]

Share

329.00 EUR
incl. 19% VAT, plus shipping
In Stock (11 pcs)

4 von 5 Sternen
5 ratings

Add to cart
Compare

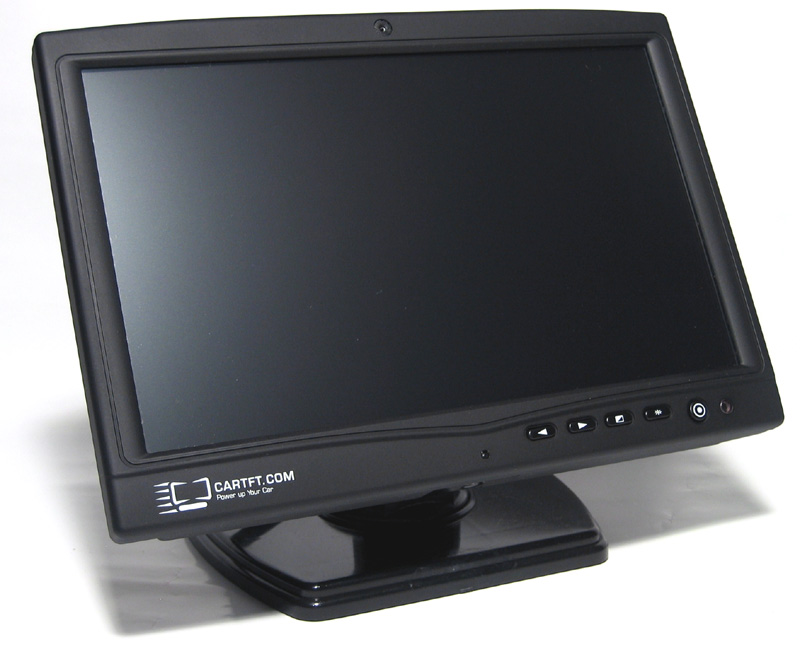

Front

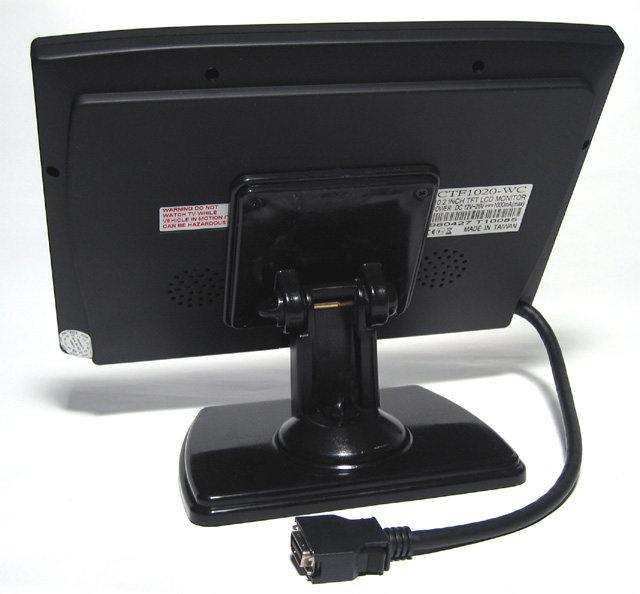

Rear
Side
LCD Size 10.2"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1080
Native resolution 800x480
Dot resolution 2400x480
Brightness 400
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 12W
Case size 250 x 176 x 26 mm
Visible area 222 x 134 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
no Adjustable video aspect
yes Mirrorable video
yes Reverse camera input

The new CTF-1020 TFT-Display is the latest development from CarTFT.com and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

A special feature is the webcam which is integrated in the front (connected to PC via USB on same port as the touchscreen). With this camera you can video phone while on the road !

The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-1020 can be used with any PC/MAC with VGA- and USB port. (Note : Webcam only useable with Windows-PC !).

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..


Webcam Specifications :
- Sensor Array : CMOS Sensor 1.3M Pixels
- Optical format : 1/4”
- Image are(mm): 1300x1028
- Sensitivity : 1.0V/Lux-sec(500nm)
- S/N Ratio : 44dB
- Lens Focal length : 1.2mm
- Lens Angle : 66 degree
- White Balance : Auto
- Exposure : Auto
- Frame Rate : 1.3M @ 15fps, VGA@30fps, QVGA @30fps
- Support UVC : Yes




Spezifications
Screen size 10.2" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 12/24V
Power consumption max. 12W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 250mm x 176mm x 26mm
Display : 222 x 134 mm
Video input signal 1.0Vp-p, composite video
Brightness 400 cd/m²
Contrast 400:1
Vibration IEC68-2-6
Operating Temperature -30° to 85°C
Features Full function OSD control (english)
Built-in Stereo-speakers
Auto-Dimmer for TFT backlight
Auto Power On/Off
Webcam (integrated in front)
VESA compliant mounting holes (75mm) + metal rail
Automatic switching to rear camera (by signal detection on AV3)

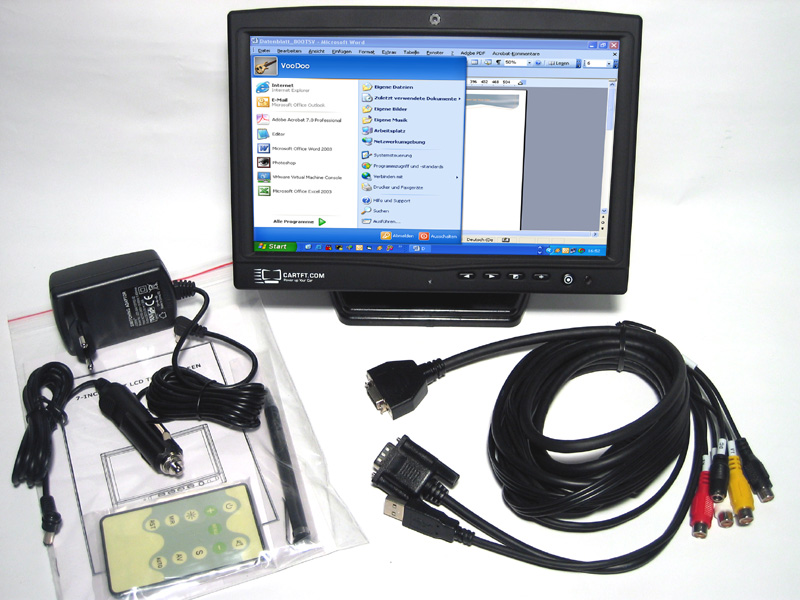

What is included ? - 10.2" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash VESA mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2.5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet Print view
800x480 Driver (Windows 7) Download
