VIA EPIA EX15000G (only recommended to use with DVI displays)

PRODUCT IS CURRENTLY NOT AVAILABLE !

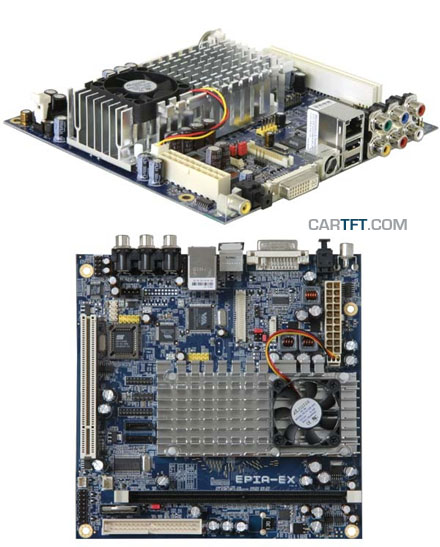

VIA EPIA EX15000G (only recommended to use with DVI displays)
  • DVI

- CPU: VIA C7 1500MHz CX700FSB400
- Processor is cooled actively
- 1x DDR II 533MHz max 1GB / 1x PCI
- 1x 10/100 LAN
- 1x ATA 133/100/66
- 2x SATA
- 6x USB 2.0 / 1xFireWire
- Sound & Grafik (UniChromeTM Pro II) on Board
- DVI
- TV-Out
- incl. LVDS-connector


Targeted at the fast-emerging market for x86-based consumer electronics, the VIA EPIA EX-Series Mini-ITX mainboard boasts leading edge multimedia, memory and peripheral support, as well as a complete consumer I/O, all contained within the signature compact platform and very low thermal envelope, with an average operating power consumption of less
[more]

Share

149.95 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

4 von 5 Sternen
7 ratings

Add to cart

- CPU: VIA C7 1500MHz CX700FSB400
- Processor is cooled actively
- 1x DDR II 533MHz max 1GB / 1x PCI
- 1x 10/100 LAN
- 1x ATA 133/100/66
- 2x SATA
- 6x USB 2.0 / 1xFireWire
- Sound & Grafik (UniChromeTM Pro II) on Board
- DVI
- TV-Out
- incl. LVDS-connector


Targeted at the fast-emerging market for x86-based consumer electronics, the VIA EPIA EX-Series Mini-ITX mainboard boasts leading edge multimedia, memory and peripheral support, as well as a complete consumer I/O, all contained within the signature compact platform and very low thermal envelope, with an average operating power consumption of less than 14W.

The VIA EPIA EX mainboard is powered by the highly efficient 1.5GHz or fanless 1.0GHz VIA C7® processor and is the first mainboard to feature the new VIA CX700M2 system media processor, an all-in-one digital media IGP chipset integrating the VIA UniChrome™ Pro II 2D/3D graphics core and an extended array of high end video and audio technologies for the ultimate digital media device. This includes hardware decoding acceleration of MPEG-2/-4 and WMV9 video, an HDTV encoder that utilizes VIA's Advance ProScale® Technology to scale the input resolution for 640x480 up to 1024x768 encode for 1080i, 720p standard HDTV resolution output, the Chromotion™ CE engine for crystal clear video, and VIA Vinyl Multi-channel HD audio through the VIA VT1708 HD audio codec for a richer listening experience.

A full complement of consumer I/O includes ports for composite, component and S-Video, S/PDIF audio, and onboard connectors for LVDS and DVI displays, with USB2.0 and IEEE1394 peripheral connectivity, full featured SATA II multi-configuration RAID, and 10/100Mbps Fast Ethernet for seamless broadband connectivity, plus a Gigabit Ethernet option. Up to 1GB of the power efficient DDR2 400/533MHz memory is supported, which optimizes system performance for today's digital media applications.

VIA EPIA EX series Mini-ITX Mainboard Specifications
Model Name • EPIA - EX15000G / EPIA - EX 10000EG
Processor • VIA C7 1.5GHz / VIA C7 1.0GHz
Chipset • VIA CX700M2
System Memory • DDR2 533 DIMM socket (Upto 1GB)
VGA • Integrated VIA UniChromeTM Pro II 3D/2D AGP graphics with MPEG-2/4 and WMV9 video decoding acceleration
Expansion Slots • 1 PCI Slot
Onboard IDE • 1 UltraDMA 133/100/66/33 connector
Onboard Serial ATA • 2 SATA connector
Onboard Audio VIA VT1708A High Definition Audio Codec
Onboard TV Out • VIA VT1625M HDTV Encoder
Onboard 1394 • VIA VT6307S IEEE 1394 Firewire
Back Panel I/O • 1 DVI connector
• 1 RJ45 with USB stack 2.0 connector
• 1 miniDIN for S-Video output
• 1 Triple RCA jack for composite video and stereo audio outputs
• 1 Triple RCA jack for component video output
• 1 S/PDIF coaxial connector
• 1 S/PDIF optical connector
Onboard I/O Connectors • 2 USB pin connector for 4 additional USB 2.0 ports
• 1 1394 pin connector for 1 1394 port
• 1 Front-panel audio header for HP-out and MIC-in
• 1 Audio Line-in header
• 1 LPC header
• 1 LVDS connector to support 1-CH LVDS panel
• 1 TV out header for SCART and D-terminal (Optional)
• 1 Video pin connector for VGA output, CCIR656/601 video input and SMBUS
• 1 PS2 mouse/keyboard header
• 2 SATA connectors
• 2 Fan pin connectors for CPU and System fans
• 1 ATX power connector
BIOS • Award BIOS
• LPC 4/8Mbit flash memory
Operating System • Windows 2000/XP, Linux, Win CE, XPe
System Monitoring & Management • Wake-on-LAN, Keyboard-Power-on, Timer-Power-on
• System power management, AC power failure recovery
Operating Temperature • 0 ~ 50 ° C
Operating Humidity • 0% ~ 95% (relative humidity; non-condensing)
Form Factor • Mini-ITX (6-layer)
• 17 cm x 17 cm
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 7 ratings
2 von 5 Sternen from fogi am 29.08.2008 | | See all my comments

It's good this have audio output in RCA and video outputs in DVI, S-Video, RCA-Video and Composite. I think VGA will work too with adapter. It's bad there's only two channels of audio outputs. Two times it losed DVI output and I had to clear CMOS with jumper. That was annoying!

3 von 5 Sternen from b.pereira am 11.05.2008 | See all my comments

Why only with DVI display you can connect an adapter for VGA

5 von 5 Sternen from myrus am 30.01.2008 | See all my comments

Magnific board for DVI display, amazing sound and vidio qualaty

4 von 5 Sternen from thosch am 30.12.2007 | | See all my comments

Es hat mich dann doch einige Nächte gekostet, mit diesem Board, einer Technisat TVStar 2 PCI Karte, einem Morex 3777 Gehäuse sowie Slimline DVD Brenner und 3,5" SATA-Festplatte einen HTPC unter Windows XP Home zu basteln. Die Sat-Karte passt nur nach Modifikation der Rückwand des Gehäuses: Der Rahmen muss entfernt werden, sonst sitzt sie zu weit vorne. Das Blech der Karte muss gerade gebogen werden und ein zusätzliches Loch zur Befestigung gebohrt werden. Unter Verwendung eines LCD-Fernsehers mit HDMI-Anschluss kann nicht installiert werden oder auf das BIOS-Setup zugriffen werden, da muss man einen DVI-Monitor nehmen. Normaler Betrieb ist dann aber schon möglich unter Auflösung 1280 x 720, allerdings nur mit Overscan (zumindest bei meinem Fernseher). Installation der neuesten Treiber von www.viaarena.com ist Pflicht! Aktivierung der Hardware-Beschleunigung des Boards ist nur mit dem PowerDVD Dekoder (6 oder 7 Ultra, 7 normal geht anscheinend nicht, ich verwende 6) möglich. Die CPU Last ist dann bei SDTV von Sat oder DVD bei 50 - 60 %. Andere Dekoder aktivieren nicht die Hardware-Beschleunigung, dann liegt die CPU-Last nahe 100% und das Bild ruckelt. Ansonsten, Service von Oliver Aigner ist extrem schnell und gut!

3 von 5 Sternen from Birne am 07.11.2007 | See all my comments
