Jetway NC9NDL-2550 (Intel Cedar Trail-D) [REFURBISHED]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NC9NDL-2550 (Intel Cedar Trail-D) <b>[REFURBISHED]</b>
  • 2x Gigabit LAN !
  • 6x COM port !
  • 12VDC Input !
  • Mini-PCI Express !

Remnant offer. Refurbished. 2 years warranty.

  • INTEL® Cedar Trail-D Processor D2550 + NM10 Chipset
  • Support 2 * DDR3 800/1067MHz Single CH up to 4GB
  • Support DirectX 9 Graphics
  • Support 2 * Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • 1 * 24 bits Single Channel LVDS header
  • Supports 2 * Realtek RT8111EVL Gigabit LAN
  • Support 6 * COM ports (COM2 for RS232/422/485)
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)

Product Accessories
- 4x COM cab [more]

Share

129.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
2 ratings

Add to cart

Remnant offer. Refurbished. 2 years warranty.

  • INTEL® Cedar Trail-D Processor D2550 + NM10 Chipset
  • Support 2 * DDR3 800/1067MHz Single CH up to 4GB
  • Support DirectX 9 Graphics
  • Support 2 * Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 6-CH
  • 1 * 24 bits Single Channel LVDS header
  • Supports 2 * Realtek RT8111EVL Gigabit LAN
  • Support 6 * COM ports (COM2 for RS232/422/485)
  • Support Watch dog Technology
  • Support CPU Smart FAN
  • Compliance with ErP standard
  • Mini-ITX Form Factor (170mm x 170mm)

Product Accessories
- 4x COM cable
- Manual
- CD
- 2x SATA cable
- I/O shield

CPU INTEL® Cedar Trail-D Processor D2550 CPU (1.86GHz)
Chipset INTEL®NM10 Express chipset
Memory 2 * DDR3 1067MHz Single CH SO-DIMM up to 4GB
Expansion Slots 1 * PCI slot 1 * Mini PCI-E socket
Storage 2 * Serial ATA2 3Gb/s connectors
Audio Realtek ALC662 6-Channel HD Audio
Ethernet LAN 2 * RTL8111EVL PCI-E Gigabit LAN
LVDS Onboard 24-bits single channel connector
USB Embedded 7 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I/O 4 * USB 2.0/1.1 ports 2 * RJ-45 port 3 * Audio I/O ports ( Line-in, MIC and Line-out ) 1 * VGA port 1 * HDMI port 2 * COM ports (COM2 for RS232/422/485) 1 * +12V DC-in jack
Internal I/O 2 * USB 2.0/1.1 headers for 3 USB 2.0 ports 1 * PS/2 Mouse & 1 * Keyboard header 2 * NB / Chassis Fan connectors; 1 * LVDS header/1 * Inverter header 1 * AUDIO header 4* RS232 headers
BIOS AMI 16MB UEFI DIP Flash ROM
Functional ATM, Automation, Medical Equipment, Kiosk, Networking, POS, General Application, Transportation
Packing Color Box Dimension:200(W) x 200(D) x 70(H)mm
Certificate CE, FCC, RoHS
Temperature Operating within 0~40 centigrade (Suggest to use system FAN) Storage within -20-85 centigrade
Form Factor Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from derecerca am 16.06.2009 | See all my comments

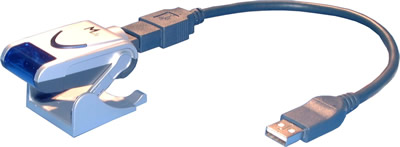

Standard infrared adapter compatible with all windows systems. It only needs one usb port and you can connect your mobile or smartphone already! Ideal for your car

5 von 5 Sternen from myrus am 30.01.2008 | See all my comments

very good just plugin to usb
