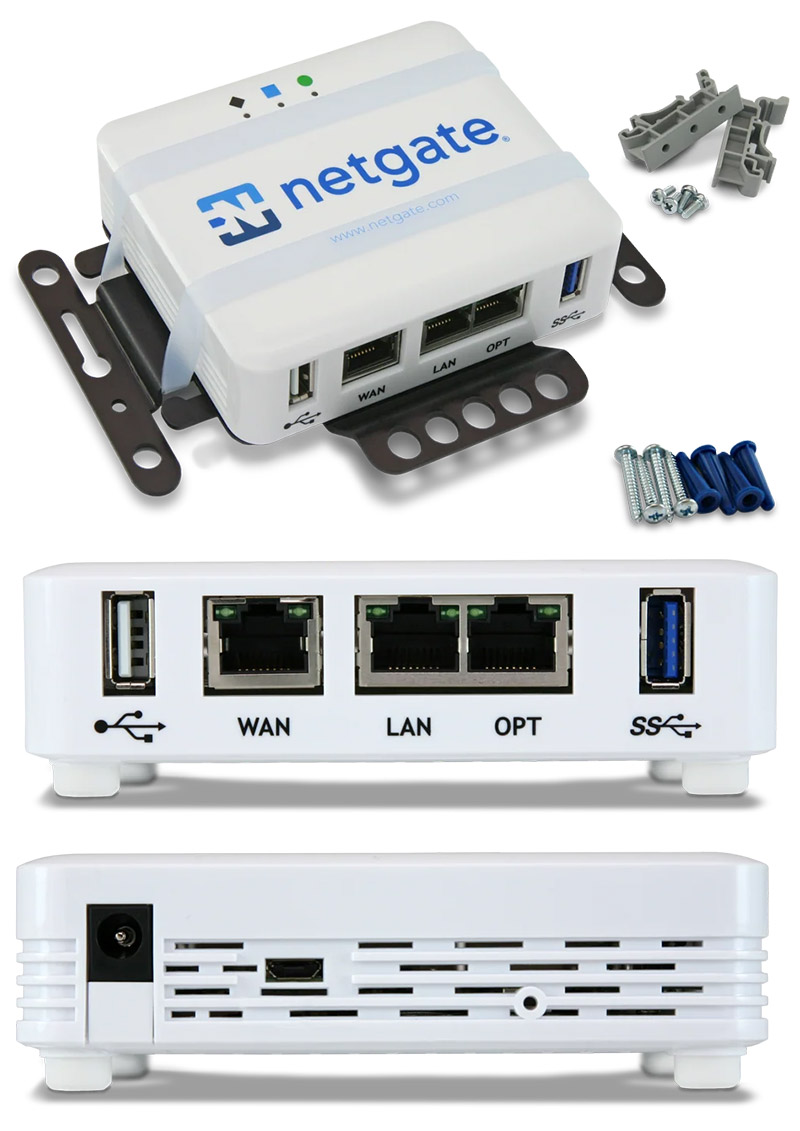

POE 1100 Security Gateway (pfSense Plus, 3x GbE, ARM Cortex-A53)

PRODUCT IS CURRENTLY NOT AVAILABLE !
POE 1100 Security Gateway (<b>pfSense Plus</b>, 3x GbE, ARM Cortex-A53)

The POE 1100 Security Gateway is a compact network appliance for home networks and small offices. It combines pfSense Plus software with a dual-core ARM Cortex-A53 processor, three Gigabit Ethernet ports and silent, passive operation.

With up to 927 Mbps L3 forwarding and up to 607 Mbps firewall throughput, the system provides a capable platform for routing, firewall and VPN applications. The stated performance tests were conducted with pfSense Plus software version 22.01.

Key Features:

  • pfSense Plus software
  • Dual-core Marvell Armada 3720LP ARM Cortex-A53 processor at 1.2 GHz
  • 3x GbE Ethernet (WAN/LAN/OPT)
  • 1 GB DDR4 RAM [more]
    Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart

The POE 1100 Security Gateway is a compact network appliance for home networks and small offices. It combines pfSense Plus software with a dual-core ARM Cortex-A53 processor, three Gigabit Ethernet ports and silent, passive operation.

With up to 927 Mbps L3 forwarding and up to 607 Mbps firewall throughput, the system provides a capable platform for routing, firewall and VPN applications. The stated performance tests were conducted with pfSense Plus software version 22.01.

Key Features:

  • pfSense Plus software
  • Dual-core Marvell Armada 3720LP ARM Cortex-A53 processor at 1.2 GHz
  • 3x GbE Ethernet (WAN/LAN/OPT)
  • 1 GB DDR4 RAM and 10.6 GB eMMC storage
  • Fanless design with passive cooling
  • USB Micro-B console port as well as USB 3.0 and USB 2.0
  • Support for routing, firewall, VPN, multi-WAN, load balancing and monitoring

SoC Marvell Armada 3720LP (88F3720) dual core ARM Cortex A53 processor @ 1.2GHz
System Memory 1 GB DDR4 RAM on board
Storage 10.6 GB eMMC storage
Network Interfaces 1x Marvell 88E6141 networking switch
3x GbE Ethernet (WAN/LAN/OPT)
Console Port 1x USB Micro-B console port
USB 1x USB 3.0
1x USB 2.0
Misc Reset button, heatsink, 3 Status LED
Power 12V 2A DC 5.5mm x 2.1mm x 10mm jack, center pin positive
power over USB not supported
Power Consumption 3.48W (idle)
Operating Temperature 0°C (32°F) to 45°C (113°F)
Enclosure Plastic
110 x 84.6 x 31.75 mm (4.33" x 3.33" x 1.25")
Cooling Passive cooling system
Certification CE, FCC, RoHS, UKCA, NDAA, TAA
Package Contents 3 foot USB Micro-B to USB-A console cable
Data sheet Download (PDF)
Data sheet Print view
