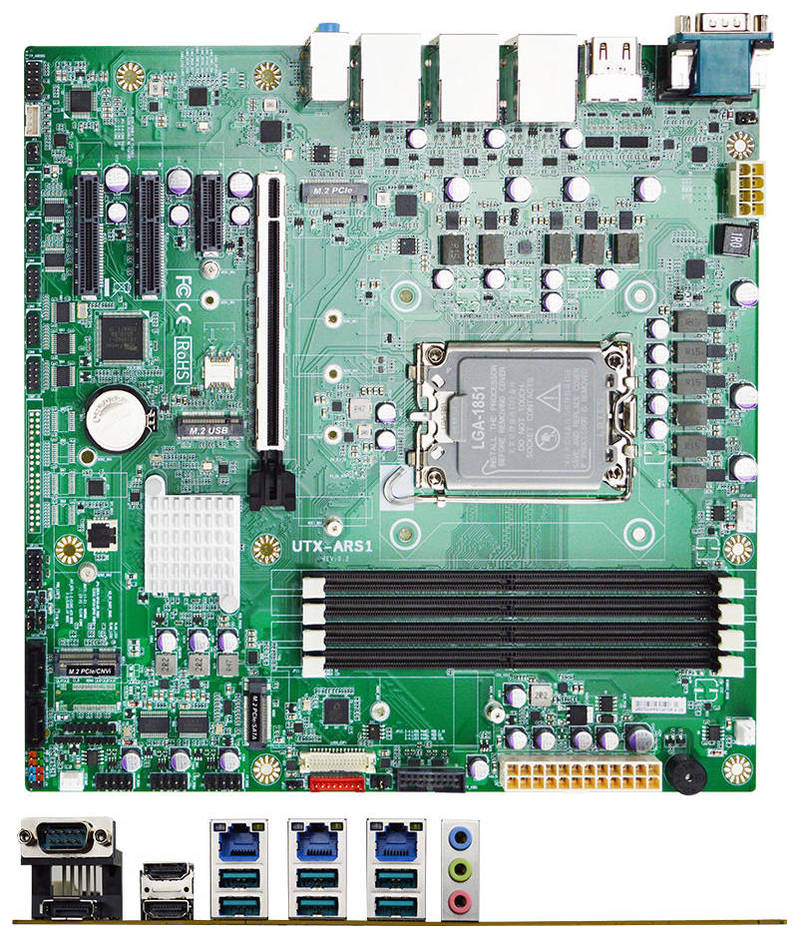

JETWAY UTX-ARS1-Q870 Micro-ATX (Intel Q870, LGA1851) [3x 2.5GbE, PCIe Gen5 x16]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY UTX-ARS1-Q870 Micro-ATX (Intel <b>Q870</b>, LGA1851) [3x 2.5GbE, PCIe Gen5 x16]
  • Intel Arrow Lake-S !
  • Intel Q870 !
  • 3x 2.5GbE !
  • PCIe Gen5 x16 !

The JETWAY UTX-ARS1-Q870 is a Micro-ATX motherboard for Intel® Core Ultra Series 2 processors with an LGA1851 socket (formerly Arrow Lake-S) and up to 125W TDP. It supports up to 256GB DDR5-6400 CU-DIMM memory in dual-channel configuration. The Intel® Q870 chipset, three 2.5GbE interfaces, two HDMI® 2.1 TMDS outputs, DisplayPort 1.4a and LVDS/eDP provide versatile options for high-performance industrial PC systems. For expansion, it offers one PCIe Gen5 x16 slot, two PCIe Gen4 x4 slots, one PCIe Gen4 x1 slot and four M.2 sockets.

  • Intel® Core Ultra Series 2 LGA1851 Socket processor (formerly Arrow Lake-S, max. 125W TDP)
  • Intel® Q870 chipset
  • 4 x DDR5 6400 [more]
    Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:

The JETWAY UTX-ARS1-Q870 is a Micro-ATX motherboard for Intel® Core Ultra Series 2 processors with an LGA1851 socket (formerly Arrow Lake-S) and up to 125W TDP. It supports up to 256GB DDR5-6400 CU-DIMM memory in dual-channel configuration. The Intel® Q870 chipset, three 2.5GbE interfaces, two HDMI® 2.1 TMDS outputs, DisplayPort 1.4a and LVDS/eDP provide versatile options for high-performance industrial PC systems. For expansion, it offers one PCIe Gen5 x16 slot, two PCIe Gen4 x4 slots, one PCIe Gen4 x1 slot and four M.2 sockets.

  • Intel® Core Ultra Series 2 LGA1851 Socket processor (formerly Arrow Lake-S, max. 125W TDP)
  • Intel® Q870 chipset
  • 4 x DDR5 6400 MT/s CU-DIMM, up to 256GB
  • 3 x 2.5GbE: Intel® I226-V, Intel® I226-LM and Realtek® RTL8156
  • 2 x HDMI® 2.1 TMDS, 1 x DP1.4a, 1 x dual-channel LVDS with co-layout eDP
  • Supports up to four displays
  • 2 x SATA III with Intel® VMD RAID 0, 1 and SATA RAID 0, 1, 5
  • 2 x M.2 M-Key, 1 x M.2 B-Key for 4G/5G modules, 1 x M.2 E-Key
  • 1 x PCIe Gen5 x16, 2 x PCIe Gen4 x4, 1 x PCIe Gen4 x1
  • 6 x USB 3.2 Gen 2x1, internal headers for 2 x USB 3.2 Gen 1 and 6 x USB 2.0
  • Up to 10 x COM, Intel® PTT (integrated fTPM), optional TPM 2.0 dTPM


 FORM FACTORMicro-ATX: 244.0 (W) x 244.0 (D) mm (9.6" x 9.6")
 CPUIntel® LGA1851 Socket, Processor Arrow Lake-S (MAX. TDP 125W)
For additional compatible CPUs, please contact regional sales
CHIPSETIntel® Q870
MEMORY4 x DDR5 6400MT/s, Dual Channel CU-DIMM, up to 256GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM)
TPM2.0 (dTPM, Optional)
RTC BATTERYLithium Battery
DIMENSION (W X D)244.0 (W) x 244.0 (D) mm (9.6" x 9.6")
OS SUPPORTWindows® 11 (64bit)
Linux
 POWER REQUIREMENTATX Power Supply
POWER ON MODEAT / ATX (Default) Mode
CONNECTORInternal 24+8-pin ATX Header
 GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP)
DP1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 4 Displays
 CODECRealtek Audio Codec
Line-in1 x Audio Jack for Line-in
Line-out1 x Audio Jack for Line-out
MIC-in1 x Audio Jack for MIC-in
AMPLIFIER3W
 ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
1 x RJ45 for Realtek® RTL8156 2.5GbE
 USB6 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 2 x USB 3.2 Gen 1
Internal Header for 6 x USB 2.0
 COM1 x DB-9 for RS-232/422/485
Internal Header for 5 x DB-9 for RS-232
Internal Header for 4 x RS-232 (Optional)
 GPIO8-Bit
SMBUSYes
I2CYes
FAN1 x CPU Fan Header
2 x System Fan Header
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
 SATA2 x SATA III
RAIDIntel® VMD RAID 0, 1 & SATA RAID 0, 1, 5
 M.21 x M-Key 2242/2260/2280/22110 (PCIe Gen4 x4) support NVMe
1 x M-Key 2242/2280 (PCIe Gen 4 x4 / SATA III) support NVMe
1 x B-Key 3042/3052 (USB 3.2/USB 2.0) for 4G/5G Module
1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1)
PCIe1 x PCIe Gen 5 x16
2 x PCIe Gen 4 x4
1 x PCIe Gen 4 x1
SIM1 x Nano SIM Card Slot
 SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS
China RoHS
WEEE
REACH
TSCA Declaration
PRO65 Declaration
CMRT Report
 PACKAGE1 x UTX-ARS1 Mother Board
3 x COM Cable
2 x SATA Cable, 50cm
1 x I/O Shield
2 x Jumper
