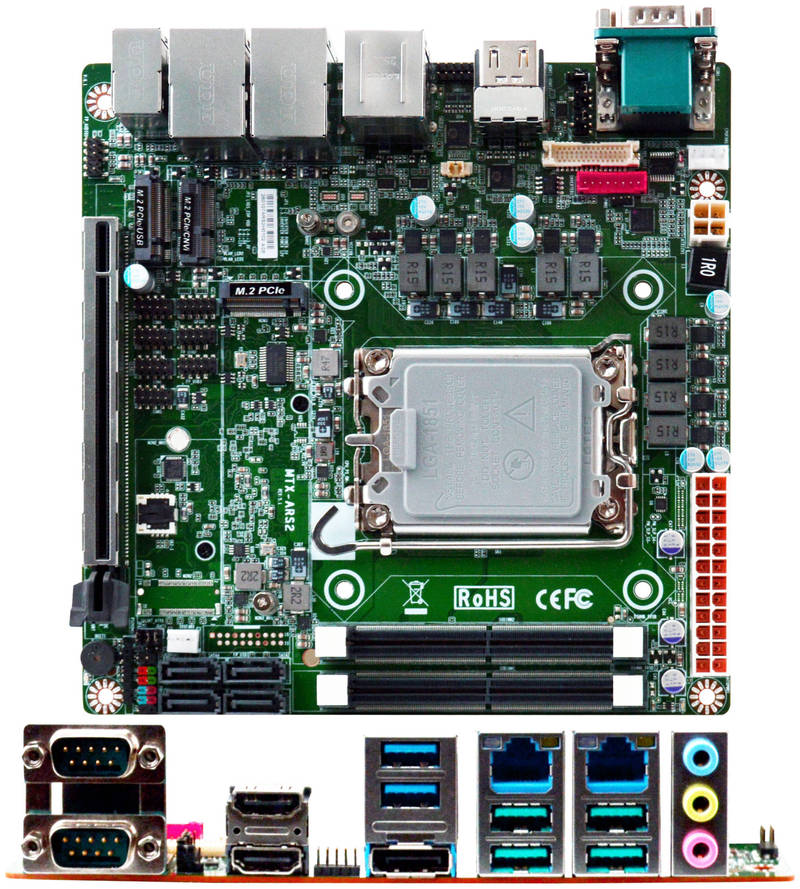

JETWAY MTX-ARS2-H8100010 MiniITX (Intel H810, LGA1851, Arrow Lake-S, 2x 2.5GbE LAN) [Intel PTT]

PRODUCT IS CURRENTLY NOT AVAILABLE !
JETWAY MTX-ARS2-H8100010 MiniITX (Intel H810, LGA1851, Arrow Lake-S, 2x 2.5GbE LAN) <b>[Intel PTT]</b>
  • Arrow Lake-S, TDP 65W !
  • H810 Chipset !
  • 2x 2.5GbE, 6x COM !
  • MTX-ARS2-H8100010 !

  • Powered by Intel® LGA1851 Socket Processors (Arrow Lake-S) with H810 chipset
  • High-Performance Memory: 2 x DDR5 6400MT/s Dual Channel CSO-DIMM, up to 128GB
  • Dual Ethernet Ports: 2 x 2.5GbE for fast and reliable networking
  • Triple Display Support: 2 x HDMI®, 1 x DP, 1 x LVDS/eDP
  • Rich Storage & Expansion: 4 x SATA, 1 x M.2 M-key, 1 x M.2 E-key, 1 x M.2 B-key, 1 x PCIe Gen 5 x16
  • Comprehensive I/O: 2 x USB 3.2 Gen2, 8 x USB 2.0, 1 x RS232/422/485, 5 x RS232
  • ATX Power Supply
  • Enhanced Security: Intel® PTT (fTPM)

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTORMini-ITX
CPUIntel® LGA1851 Core? Ultra Socket Processor (Formerly Arrow Lake-S, TDP 65W)
CHIPSETIntel® H810
MEMORY2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 128GB
BIOSAMI 256Mb Flash ROM
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (fTPM)
DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
OS SUPPORTWindows® 11 (64bit)
Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODEAT / ATX
CONNECTOR24+4-pin ATX PWR
DISPLAY
GPUIntel® Graphics
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, Co-lay eDP)
DP1 x DP1.4a (Max Resolution: 4096 x 2160@60Hz)
HDMI®2 x HDMI® 2.1 TMDS (Max Resolution: 4096 x 2160@60Hz)
MULTIPLE DISPLAYSupport 3 Displays
AUDIO
CODECRealtek Audio Codec
Line-in1 x Audio Jack for Line-In
Line-out1 x Audio Jack for Line-Out
MIC-in1 x Audio Jack for MIC-In
LAN
ETHERNET2 x RJ45 for Intel® I226-V 2.5GbE
USB PORT
USB2 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
4 x USB 2.0
Internal Header for 4 x USB 2.0
SERIAL PORT
COM1 x DB-9 for RS-232/422/485
1 x DB-9 for RS-232
Internal Header for 4 x RS-232
INTERNAL I/O
GPIO8-Bit
SMBUSYes
I2CYes
ADDITIONAL1 x Chassis Intrusion
1 x PS/2
1 x Audio Header
STORAGE
SATA4 x SATA III
EXPANSION
PCIe1 x PCIe Gen 5 x16
M.21 x M-Key 2280 (PCIe Gen 4x4) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) support CNVio
1 x B-Key 3042 (PCIe Gen 4 x1/USB3.2 Gen 1/USB2.0 interface) support 4G/5G Module
SIM1 x SIM Card Slot
ENVIRONMENT & CERTIFICATION
SHOCK15G, 11ms duration
VIBRATION1 Grms/ 5~ 500Hz/ Operation
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% Relative Humidity, Non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS, China RoHS, REACH, WEEE, Minerals Conflict-Free, PRO65 Declaration, CMRT Report
Packing ListMTX-ARS2-H810 MB
COM Port Cable, 22cm, Pitch 2.0
SATA Cable, 50cm
SATA Power Y cable, 5.0pitch for 32cm, 2.54pitch for 20cm
I/O Shield
Jumper
