Akasa Newton N16 Enclosure (for ASUS NUC 16 Pro, dual HDMI®, up to 28W TDP) [A-NUC109-M1B]

PRODUCT IS CURRENTLY NOT AVAILABLE !
Akasa Newton N16 Enclosure (for ASUS NUC 16 Pro, dual HDMI®, up to 28W TDP) <b>[A-NUC109-M1B]</b>
  • ASUS NUC 16 Pro !
  • Dual HDMI® !
  • Bis 28W TDP !
  • 2.1L FANLESS !

Fanless aluminium case for ASUS NUC 16 Pro with dual HDMI® interface. Full thermal solution for CPU and dual M.2 SSDs, supporting up to 28W TDP.

  • Passive aluminium fanless cooling design for silent operation
  • Full thermal solution with CPU and dual M.2 SSD thermal modules, thermal compound and thermal pads
  • Designed for ASUS NUC 16 Pro (Grand Canyon) Mini-PC/Board/Kit with HDMI
  • Full native I/O interface support with dual HDMI® and dual LAN
  • Space-saving 2.1L volume form factor
  • VESA mounting supported; optional wall mount bracket kit and 10-inch rackmount front panel available

Share

0.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.
Add to cart
MaterialAluminium with black anodisation
Panel MaterialAluminium with black anodisation
Thermal ModuleCPU: aluminium heatsink with thermal compound for CPU
M.2 SSD: aluminium heatsink with thermal pad for dual M.2 SSD
Motherboard Type5" X 4"
Motherboard SupportASUS NUC 16 Pro (Grand Canyon) Mini-PC/Board/Kit - HDMI
NUC16GDK, NUC16GDB, NUC16GDK-B
Maximum TDP Support28W
Dimensions188.6 x 204 x 53.6 mm (W x D x H)
Volume2.1L
Drive BaysOnly suitable with M.2 SSDs

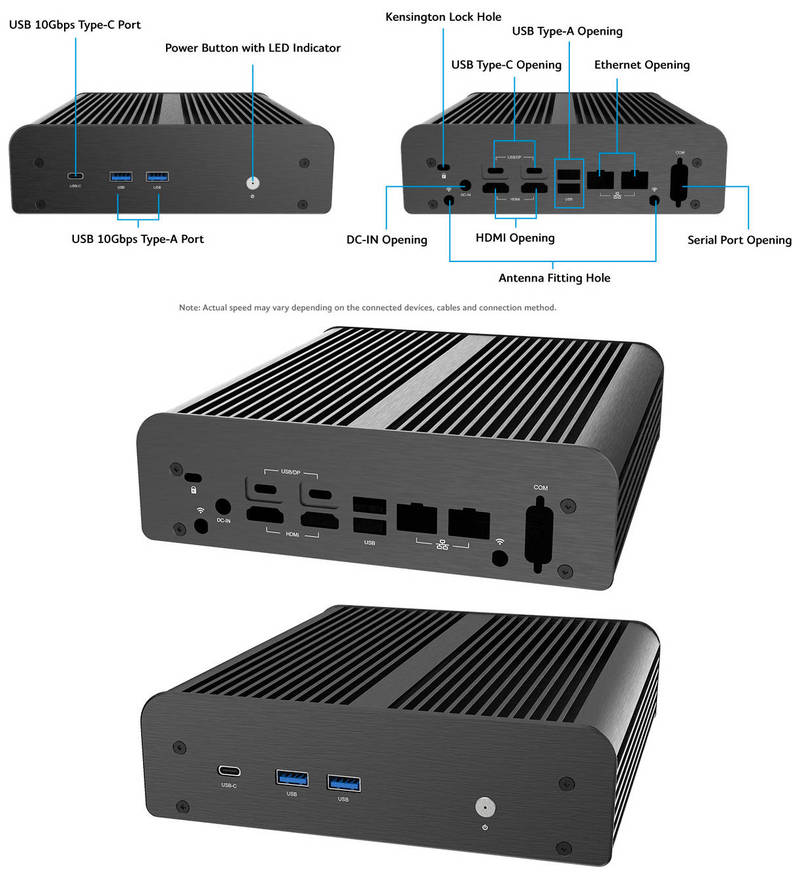

Front I/O InterfacesPower button with status LED opening, USB 3.2 Type-A port x2, USB 3.2 Type-C port
Rear I/O InterfacesDC-IN opening, USB Type-C opening x2, HDMI opening x2, USB Type-A opening x2, Ethernet opening x2, Antenna fitting hole x2, Serial port opening, Kensington lock hole
Antenna Fitting Holes2
SecurityKensington lock
VESA MountingSupported
Wall MountingOptional wall mount bracket kit available (Product Code: A-NUC109-KT01)
Rack Mounting (10 Inch)Optional 10-inch rackmount front panel available (Product Code: A-NUC109-FP02)
Optional External Power Adapter120W, 19V (Optional Akasa model: AK-PD120-04M)
Product CodeA-NUC109-M1B
Data sheet Download (PDF)
Data sheet Print view
Akasa Catalogue Download (PDF)
