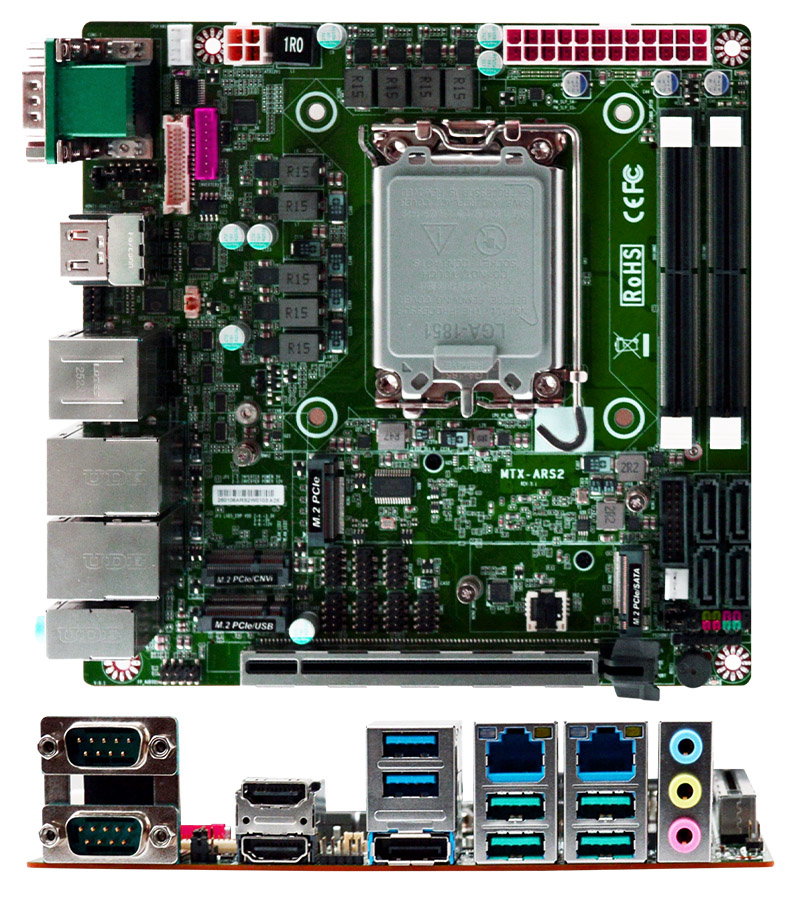

Jetway MTX-ARS2-Q870 MiniITX (Intel Q870 Chipset, Socket LGA1851, Arrow Lake-S, 2x HDMI, 2 x LAN, 5x RS232)

Jetway MTX-ARS2-Q870 MiniITX (Intel Q870 Chipset, Socket LGA1851, Arrow Lake-S, 2x HDMI, 2 x LAN, 5x RS232)<br>
  • Arrow Lake-S, TDP 65W !
  • Q870 Chipset !
  • 6 x COM, 6 x USB3.2 !
  • MTX-ARS2-Q8700010 !

  • Powered by Intel® LGA1851 Socket Processors (Arrow Lake-S) with Q870 chipset
  • High-Performance Memory: Dual DDR5 CSO-DIMM, up to 128GB
  • Dual Ethernet Ports: 2 x 2.5GbE for fast and reliable networking
  • Quad Display Support: 2 x HDMI®, 1 x DP, 1 x LVDS/eDP
  • Rich Storage & Expansion: 4 x SATA, 2 x M.2 M-key, 1 x M.2 E-key, 1 x M.2 B-key, 1 x PCIe Gen 5 x16
  • Comprehensive I/O: 8 x USB 3.2 Gen2, 4 x USB 2.0, 1 x RS232/422/485, 5 x RS232
  • ATX Power Supply

Share

519.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTOR Mini-ITX
CPUIntel® LGA1851 Core™ Ultra Socket Processor (Formerly Arrow Lake-S, TDP 65W)
CHIPSETIntel® Q870
MEMORY2 x DDR5 6400MT/s, Dual Channel CSO-DIMM, up to 128GB
BIOSAMI 256Mb Flash ROM
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (fTPM)
DIMENSION (W X D)170.0 (W) x 170.0 (D) mm (6.7″ x 6.7″)
OS SUPPORTWindows® 11 (64bit)
Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODE AT / ATX
CONNECTOR 24+4-pin ATX PWR
DISPLAY
GPU Intel® Graphics
DP1 x DP2.1 (Max Resolution:7680 x 4320@60Hz)
HDMI® 2 x HDMI® 2.1 (Max Resolution: 4096 x 2160@60Hz)
LVDS1 x 24-bit Dual Channel LVDS (Max. Resolution: 1920 x 1200 @60Hz, co-layout eDP)
MULTIPLE DISPLAY Support 4 Displays
AUDIO
CODEC Realtek Audio Codec
Line-in1 x Audio Jack for Line-In
Line-out1 x Audio Jack for Line-Out
MIC-in1 x Audio Jack for MIC-In
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I226-LM 2.5GbE
USB PORT
USB6 x USB 3.2 Gen 2x1 (10Gbps, Formerly USB 3.1 Gen 2)
Internal Header for 2 x USB 3.2 Gen 1x1
Internal Header for 4 x USB 2.0
SERIAL PORT
COM1 x DB-9 for RS-232/422/485
1 x DB-9 for RS-232
Internal Header for 4 x RS-232
INTERNAL I/O
GPIO 8-Bit
SMBUSYes
I2C Yes
ADDITIONAL1 x Chassis Intrusion
1 x PS/2
1 x Audio Header
STORAGE
SATA 4 x SATA III
RAID 0, 1, 5, 10
EXPANSION
PCIe 1x PCIe Gen 5 x 16
M.21 x M-Key 2280 (PCIe Gen 4x4) support NVMe
1 x M-Key 2242 (PCIe Gen 4 x4/SATA interface) support NVMe
1 x E-Key 2230 (USB 2.0/PCIe Gen 4 x1) support CNVio
1 x B-Key 3042 (PCIe Gen 4 x1/USB3.2 Gen 1/USB2.0 interface) support 4G/5G Module
SIM1 x SIM Card Slot
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE-20°C ~ 60°C (-4°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 85°C (-4°F ~ 185°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
SHOCK / VIBRATION 15G, 11ms duration
1 Grms/ 5~ 500Hz/ Operation
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS, China RoHS, REACH, WEEE, Minerals Conflict-Free, PRO65 Declaration, CMRT Report
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
