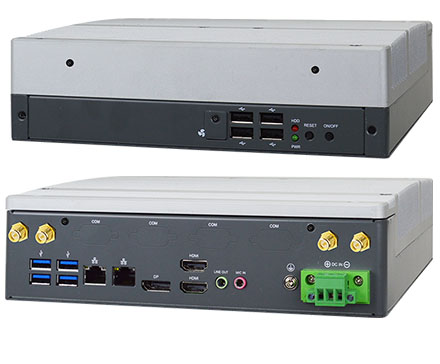

Jetway HB650I02-Q470-B (Intel LGA1200 Comet Lake-S, Q470, 2x LAN)

Jetway HB650I02-Q470-B (Intel LGA1200 Comet Lake-S, Q470, 2x LAN)
  • Q470E !
  • LGA1200 !
  • 2x LAN !

  • 1. Intel® 10/11th LGA 1200 Socket Comet Lake-S Processor
  • 2* Dual CH DDR4 2933MHz SO-DIMM up to 64GB
  • 8* USB, 2* RJ45,1* Line-out, 1* Mic, 1* DP, 2* HDMI, 4* COM (Max)
  • 1* M.2 M-key 2280, 1* M.2 E-key 2230, 1* M.2 B-key 3042/3052
  • Support TPM2.0 (option)
  • Dimensions: 224 * 199 * 63 mm
  • DC19V/ 120W Adapter





Share

719.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – HB650I02-Q470-B (non-WiFi)
– HB650I02I-Q470-B (WiFi)
– HB650I02-Q470-T (TPM/non-WiFi)
– HB650I02I-Q470-T (TPM/WiFi)
CPU/Chipset – Intel® 10/11th LGA 1200 Socket Core i9/i7/i5/i3/Pentium/Celeron Comet Lake-S Processor (Max. 65W TDP)
– Intel Q470E Express chipset
MB Model – MI02-10
– MI02-12 (TPM2.0)
BIOS – AMI Flash ROM
Memory – 2* Dual CH DDR4 2933/2666/2400MHz SDRAM SO-DIMM up to 64GB
* Core i9 / i7 CPUs support DDR4 up to 2933MHz
* Core i5 / i3 CPUs support DDR4 up to 2666MHz
* Pentium / Celeron CPUs support DDR4 up to 2400MHz
Network – 1 * Intel i219LM GbE
– 1 * Intel i225LM 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 2* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– Support Triple Displays
Storage – 1* M.2 M-key (2280, PCIex4/SATA interface) support NVME
Expansion – 1* M.2 E-key (2230, PCIex1/USB2.0) support CNVi
– 1* M.2 B-key (3042/3052, PCIex1/USB3.0) W/SIM card slot
Rear Panel I/O – 2* RJ45
– 4* USB3.2(Gen.1)
– 1* DP
– 2* HDMI
– 1* Line out, 1* Mic
– 1* DC in (Industrial Connector)
– 4* COM (option)
Front Panel I/O – 1* Power button , 1* Reset
– 1* Power LED, 1* HDD LED
– 4* USB2.0
– 1* FAN link con
Internal Connector – SIM Card Holder
Power Source – Adapter : AC 90~240V input / DC19V_120W output
– MB : DC12~28V input
Compliance – CE, FCC, LVD, RoHS, ErP Ready
Dimensions – System : 224 (W) * 199 (D) * 63 (H) mm
– Package : 406 (W) *359 (D) * 148 (H) mm
– Net Weight: 4 KG
– Gross Weight: 5 KG
Temperature – Operating Temperature: -20 ~ 60° C
(Under the condition of using M.2 interface SSD)
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)
OS Support – Windows 11, Linux
