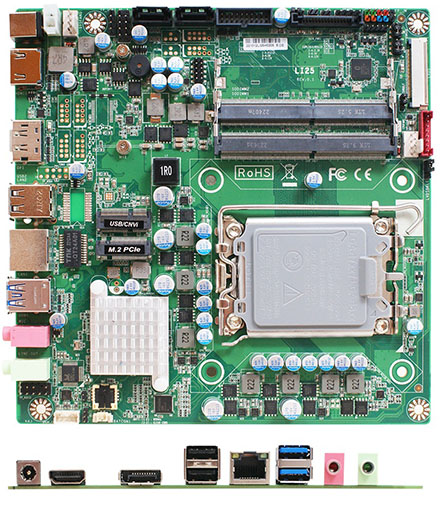

Jetway LI25-H6100 Thin-ITX (Intel LGA1700 Socket, Alder Lake-S H610, Half-Height)

Jetway LI25-H6100 Thin-ITX (Intel LGA1700 Socket, Alder Lake-S H610, Half-Height)
  • Intel Alder Lake-S H610 !
  • Half Hight !
  • Mini ITX !

  • Intel® 12/13th LGA1700 Socket Processor (Max. 65W TDP)
  • Intel® Alder Lake-S H610 Chipset
  • 2* DDR4 3200MHz UDIMM up to 64GB
  • 1* HDMI, 1* DP, 1* LVDS or eDP
  • 1* GbE
  • 2* USB3.2 (Gen.2), 2* USB3.2(Gen.1), 5* USB2.0
  • 1* M.2 M-key, 2242/2280(PCI-Ex4), 1* M.2 E-key, 2230, 2* SATAIII (6Gb/s)
  • Onboard TPM2.0 (Option)
  • 19V DC-in





Share

249.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – LI25-H6100
– LI25-H6102 (TPM2.0)
Form Factor – Mini-ITX (170 * 170mm)
Processor System – Intel® 12/13th LGA1700 Socket Core i9/i7/i5/i3/Pentium/Celeron Processor (Max. 65W TDP)
– Intel® Alder lake-S H610 chipset
– AMI Flash ROM BIOS
Memory – 2* DDR4 3200MHz Dual Channel SO-DIMM up to 64GB
Storage – 2* SATAIII (6Gb/s)
– 1* M.2 M-key (2242/2280 PCI-Ex4 Gen.3 interface)
Expansion – 1* M.2 E-key (2230, CNVi/PCI-Ex1/USB2.0, Support WIFI/BT Module)
Ethernet – 1* REALTEK® RTL8111H 10/100/1000Mbps
Graphics – Intel® HD Graphics, shared memory
– 1* EXT HDMI2.0 (Max Resolution: 4096×2160@60Hz)
– 1* EXT DP1.4 (Max Resolution: 7680×4320@60Hz)
– 1* INT LVDS (Max Resolution: 2560*1600@60Hz)
– 1* INT EDP1.2 (Max Resolution: 1920*1080@60Hz)
– Support Triple Displays
Audio – HD audio: Realtek ALC897
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 2* USB3.2 (Gen.1)
– 3* USB2.0 (PH2.54)
– 1* 8bit GPIO (5V)
– 2* SATAIII (6Gb/s)
– 1* SATA Power
– 1* LVDS(or eDP) + 1* Inverter
– 1* 2pin Power connector
– 1* Chassis intrusion
– 1* FP_ Audio
– 1* 4pin Speaker header (for 3W Amplifier, PH2.0)
– 1* 4pin Speaker header (for Buzzer, PH2.54)
– 1* FP_JW
– 1* SMBUS + 1*AT model
– 1* CPU FAN Header (Smart FAN) + 1* SYSTEM FAN Header (W/O Smart FAN)
External I/O – 2* USB3.2 (Gen.2)
– 2* USB2.0
– 1* HDMI2.0
– 1* DP1.4
– 1* RJ45
– 1* Line-Out
– 1* MIC
– 1* DC Jack (19V DC in)
Power 19V DC in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, LVD, RoHS, REACH (Option)
Temperature – Operating Temperature: 0 ~ 60° C (with 0.7m/s air flow)
– Storage Temperature: -20 ~ 70° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10 / 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
