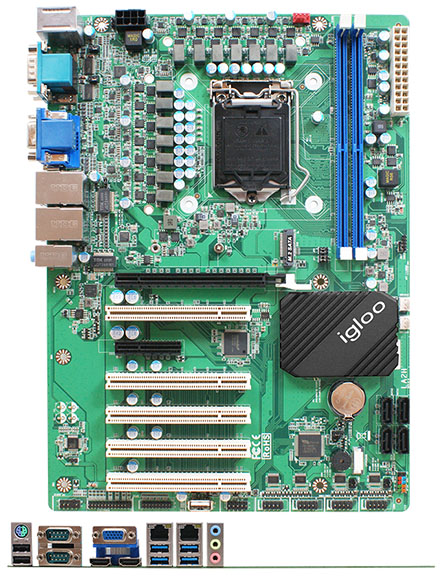

Jetway LA2H-H420E ATX (Intel Sockt LGA1200, H420E Chipset, 2x COM, 2x LAN)

Jetway LA2H-H420E ATX (Intel Sockt LGA1200, H420E Chipset, 2x COM, 2x LAN)
  • H420E !
  • 2x COM !
  • ATX Formfactor !

  • Intel® LGA1200 Socket supports 10/11th Gen Core Processor (Max. 125W)
  • Intel® Comet Lake-S H420E chipset
  • 2* DDR4 2933/2666MHz up to 64GB
  • 1* Intel® i225-V 2.5GbE, 1* Intel® i219-LM GbE
  • 4* SATA III (6Gb/s, SATA4 CO-LAY M-key), 1* M.2 M-Key (SATA)
  • 1* VGA, 2* HDMI
  • 2* RS232/422/485, 4* RS232, 4* USB3.2(Gen1), 5* USB2.0
  • 1* PCI-E x16, 1* PCI-E x4, 5* PCI Slots
  • 1* CPU FAN, 2* System FAN
  • TPM 2.0
  • 24 + 8 Pin ATX Power Input
  • ATX Form Factor (305 x 220mm)





Share

339.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – LA2H-H420E
– LA2H-H420E2 (TPM2.0)
Form Factor – ATX (305 * 220mm)
Processor System – Intel® LGA1200 Socket supports 10th/11th Gen Core Processor (Max. 125W)
– Intel® H420E chipset
– AMI 256M Flash ROM
– Support TPM2.0 (option)
Memory – 2* DDR4 LONG DIMM 2933/2666MHz DRAM up to 64GB
Storage – 4* SATAIII (6.0Gb/s , SATA4 Co-lay M-key)
– 1* M.2 M-key (2242/2280, SATA interface Co-lay SATA4)
Expansion – 1* PCI-E x16 slot
– 1* PCI-E x4 slot
– 5* PCI slots
Ethernet – 1* Intel® i225-V 2.5GbE
– 1* Intel® i219-LM GbE
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution : 1920×1080@60Hz)
– 2* HDMI 1.4 (Max Resolution : 4096×2160@30Hz)
Audio – Line-in, Line-out, MIC
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 2* USB2.0
– 1* USB2.0 (TYPE A)
– 4* RS232 (COM3/4 Support 5/12V TTL)
– 4* SATAIII (6.0Gb/s)
– 1* M.2 (M-key, 2242/2280, SATA interface)
– 1* PCI-Ex16 slot (by CPU)
– 1* PCI-Ex4 slot
– 5* PCI
– 1* GPIO (16 bit, 5V, Co-lay LPT)
– 1* LPT (Co-lay GPIO)
– 1* CPU FAN (Support Smart FAN)
– 2* System FAN
– 1* Chassis intrusion
– 1* SMBUS/ I2C
– 1* AT mode
External I/O – 2* RS232/422/485 (Support 5V/12V TTL)
– 4* USB3.2 (Gen1)
– 2* USB2.0
– 1* VGA
– 2* HDMI 1.4
– 2* RJ45
– Line-in, Line-out, MIC
Power ATX PWR (8 + 24 pin)
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH compatible
Temperature – Operating Temperature: 0 ~ 60° C
– Storage Temperature: -20 ~ 85° C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Windows 11, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
