Jetway HBJC38AZ02-2LU (Intel i5-1145G7E) [12-24V DC, 6x LAN]

Jetway HBJC38AZ02-2LU (Intel i5-1145G7E) [12-24V DC, <b>6x LAN</b>]
  • Intel Tiger Lake !
  • HBJC38AZ02 Series !
  • 7x USB 3.x !
  • 6x LAN !

  • 11th Gen Intel® Tiger Lake-UP3 SoC Processor
  • Long-Life Embedded Class with Planned Lifecycle Through Q3'2035
  • 1 * Intel 2.5GbE, 5 * Intel Gigabit LAN, 2 * RS232
  • 1 * 2.5" Bay, M.2 PCIe 4.0 x4 NVME, 12-24V DC-in
  • Up to 3*4K @60Hz displays, via 1*HDMI, 1*DP, 1*USB 3.2 Gen2 Type-C (DP)
  • ECO-design for EuP/ErP




Share

1439.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart
Model Series JBC38AZ02-2LU
Part Number HBJC38AZ02-2LUB
Motherboard Specification
CPU Fanless 11th Gen Intel® Core i5-1145G7E, 1.50GHz – 4.10GHz Burst, 4-Core 8-Thread, 15W TDP, vPro (Formerly Tiger Lake)
Memory 2 x 260-pin Dual Channel DDR4-3200 SO-DIMM up to 64GB Total
Expension M.2 E-key 2230 (occupied on WIFI models), M.2 3042/3052+SIM slot for Cellular
LAN 1 * Intel i225-V 2.5GBE,
1 * Intel i219-LM gigabit LAN (iAMT)
Other Features HD Audio, ACPI S3, AHCI, Watchdog Timer 10-255 min/sec,
Storage 1 * 2.5” SATA3 bay (<10mm),
1 * M.2 M-key SATA/PCIE 4.0 x4 NVME 2242/2280
BIOS AMI UEFI Flash ROM
Chassis Specification
Enclosure Size 185 (W) x 175 (D) x 60 (H) mm

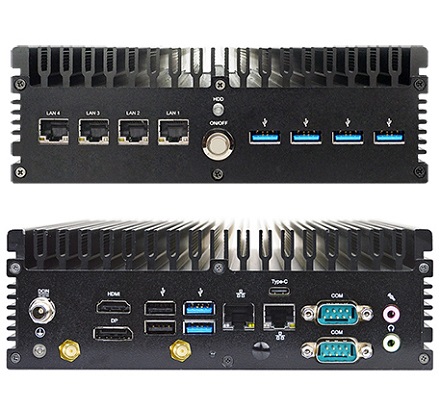

Front I/O Port Power button & LED,
4 * Intel 1GBE,
4 * USB 3.2 Gen1
Rear I/O Port 2 * USB 3.2 Gen2 (A),
1 * USB 3.2 Gen2 (type-C DP++),
2 * USB 2.0, HDMI, DP,
2 * RJ45, Lineout, Microphone,
3 * Antenna holes,
2 * Serial (RS232),
+12V-24V DC In jack
Power Adapter : AC_90~240V / DC_12V/90W
Environment Operating Temperature : -20°C ~ 50°C with M.2 SSD, 0°C ~ 50°C with 2.5" SATA
Storage Temperature : -20 ~ 70°C
Humidity : 40%-60%, non-condensing
Certificate CE,FCC,RoHS,ErP For Barebone
CE,FCC,TUV,UL,CCC,CB,ErP For Power Adapter
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
