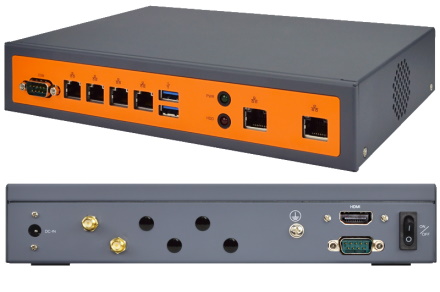

Jetway HBJC130F73106-395G (Intel Kabylake, 6x LAN)

Jetway HBJC130F73106-395G (Intel Kabylake, 6x LAN)
  • 6x LAN !

  • Intel® Skylake Celeron 3855U/3955U SoC Processor (Default)
  • 1* 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 16 GB
  • 4/6* 10/100/1000 Base-TX Ethernet Ports
  • 1* Full size Mini-SATA Socket (SATA + USB Signal)
  • 2* Mini PCIe Slots (1* full size & 1* half size)
  • 1* SIM card holder
  • Supports on board TPM1.2/2.0 (option)
  • 1* RS232 Console, 2* USB3.0
  • Supports Antenna up to 4


Share

549.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Processor – Intel® Skylake Celeron 3855U/3955U SoC Processor (Default)
Chipset – SoC Integrated
Memory – 1 * SO-DIMM DDR4-2133MHz up to 16GB
Storage – 1 * 2.5” SATA3 6Gb/s internal drive bay
– 1 * full size mSATA
Network – 1 * Intel® i219LM GbE & 3 * Intel® i225V (Default on board)
– 2 * Intel® i350 GbE (Expansion by request)
Expansion slot – 1 * half size Mini PCIe slot (for WiFi expansion)
– 1 * full size Mini PCIe slot with 1 * SIM card holder
Front Panel I/O – 1 * Power LED , 1 * HDD LED
– 2 * USB 3.0
– 1 * COM
– 4 * RJ45 (3 * i225V + 1 * i219LM)
– 2 * RJ45 (Intel i350 / option)
Rear Panel I/O – 1 * Power switch
– 1 * HDMI (Max. resolution:4096 x 2304@24Hz)
– 1 * COM or GPIO (Option)
– 1 * DC-in jack
– Support Antenna up to 4
Other Features – TPM1.2 or TPM2.0 (On board option)
– Reserve internal pin header 8-bit Digital I/O interface (4-in /4-out)
– 0~255 segments by software programmable
– 1 * System FAN
Power Source – FSP DC Adapter / AC 90~240V input / DC12V-5A-60W / LV6
Compliance – CE, FCC, LVD, RoHS
Safety – Vibration test: N.C
– Shock test: N.C
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 232 (W) x 152 (D) x 44 (H) mm
Packing – Net Weight: 1.8KG
– Gross Weight: 2.8KG
– Color Box dimension: 250 (W) * 115 (D) * 365 (H) mm
OS Support – 32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 1 Year limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
