Jetway HBFBZ10-6412-B (Intel Elkhart Lake) [2x 2.5GbE, 2x USB3.1]

Intel® Elkhart Lake !
4x 2.5GbE !
12V DC-in !

Intel® Elkhart Lake SoC Processor
1 * DDR4 3200MHz SODIMM up to 16GB
4 * 2.5GbE
Support TPM2.0
2 * USB , 1* HDMI, 1 * COM (RJ45 type)
1 * M.2-2242, 1 * M.2-2230, 1 * M.2-3042
12V DC-in

419.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.

RAM :

SSD (M.2 NVME):

OS:

Build/Install:

Model	– HBFBZ10-6412-B – HBFBZ10I-6412-B – HBFBZ10-6412-E (EMMC) – HBFBZ10I-6412-E (EMMC) – HBFBZ10-6412-T (EMMC&TPM;) – HBFBZ10I-6412-T (EMMC&TPM;)
CPU/Chipset	– Intel® Elkhart Lake SoC Processor (J6412)
BIOS	– AMI Flash ROM
Memory	– 1* DDR4 3200MHz SO-DIMM up to 16GB
Network	– 4* Intel i255V 2.5GbE
Graphics	– Intel® HD Graphics, shared memory – 1* HDMI 2.0 (Max Resolution: 4096×2160@60Hz)
Storage	– 1* M.2 M-key (2242, PCIe Gen.3 x2/SATA interface) support NVME, (co-layout M.2 B-key)
Expansion slot	– 1* M.2 E-key (2230, PCIe Gen.3 x1/USB2.0 interface) – 1* M.2 B-key (3042/3052, USB3.1 interface) co-layout M.2 M-key (If you use M.2 B-key type-3042/3052 card, M.2 M-key type-2242 is not available; vice versa)

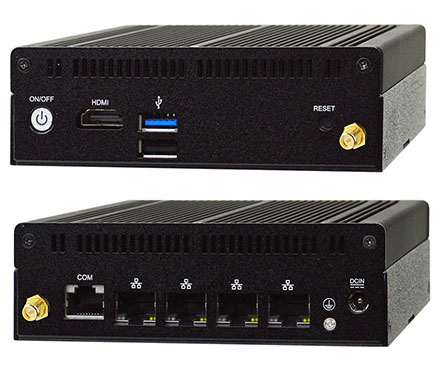

Rear Panel I/O	– 4* RJ45 – 1* COM (RJ45 type) – 1* DC-in jack
Front Panel I/O	– 1* Power button + Power LED – 1* Reset – 1* USB3.1 – 1* USB2.0 – 1* HDMI (Max. 4096×2160@60Hz resolution)
Internal Connector	– 32GB eMMC onboard (by model) – 1* SIM card holder
Compliance	– CE, FCC, RoHS, ErP Ready
Power Source	– MB : DC12V input – Adapter : AC 90~240V input / DC12V-3.3A-40W output
Compliance	– CE, FCC, LVD, RoHS, ErP Ready
Temperature	– Operating Temperature: -20 ~ 60° C (Under the condition of using M.2 interface SSD) – Storage Temperature: -20 ~ 80° C – Humidity: Between 40% and 60%, non-condensing
Dimensions	– System: 125 (W) x 109 (D) x 39.5 (H) mm
OS Support	– Windows 10, Windows 11, Linux

Data sheet	Download (PDF)
Data sheet	Print view
Jetway Catalog (Rackmount)	Download (PDF)
Jetway Catalog (Barebones)	Download (PDF)
