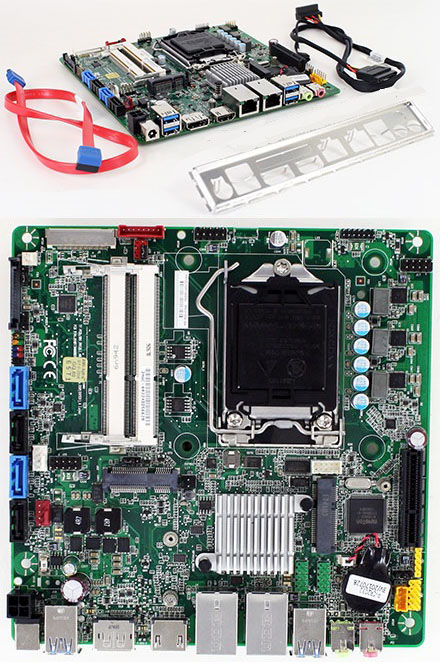

Mitac PH12LI-Q87-19V-BCP Thin-ITX (Intel Q87, LGA1150, 2x LAN) [SPECIAL OFFER]

PRODUCT IS CURRENTLY NOT AVAILABLE !

Mitac PH12LI-Q87-19V-BCP Thin-ITX (Intel Q87, LGA1150, 2x LAN) <b>[SPECIAL OFFER]</b>

3D 360° View

19V !
half-height !

Special Offer, only half-height I/O-Shield included
Support Intel 4^th generation Intel Core Processor
LGA1150 Socket H3 CPU compatible (up to 65W)
Intel^® vPro™ Technology support for business security
Dual high speed Gigabit Ethernet connection
Two PCI Express Mini Card connector for expansion
Features 4 SATA3 (6Gbps)
4 Hi-Speed external USB3.0 ports support
Dual display connectivity by DP-out & HD-out
Embedded LVDS connectivity

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

RAM :

Form Factor

Low-profile Mini-ITX (20 millimeters [0.79 inches] x 170.18 millimeters
[6.7 inches] x 170.18 millimeters [6.7 inches])

Processor

Intel Haswell H3 LGA1150 CPU Socket Support up to Dual/Quad core 65W

Chipset

Intel Lynx Point Q87 Chipset

Memory

Support for DDR3 1066/1333/1600 MHz SO-DIMMs Support for up to 16 GB of system memory
204-pin DDR3 SO-DIMM	2

Display

HD-in & HD-out connector 40P Embedded LVDS connector

Audio

RealTek* ALC888 audio codec for 7.1 (8-channel) High Definition Audio (HD Audio) Included are: Back panel audio connectors: Line-out & Mic 1 x Audio header for stereo speakers 1 x Audio header for front Panel Mic/Hp 1 x Audio header for DMIC

Expansion Capability

PCI Express x 4 slot	1
PCI Express Full-/Half-Mini Card slot	1
PCI Express Half-Mini Card slot	1

Peripheral Interfaces

USB 2.0 front panel ports	3 (Headers)
Serial port header	2
SATA 3.0 Gb/s	4

Legacy I/O

Legacy I/O Controller (NCT6683D)

Security

Intel^® vPro™ Technology support
TPM security by Nuvoton NPCT420AA0WX(optional)

LAN Support

Intel Clarkville I217-LM/I210-AT Gigabit (10/100/1000 Mb/s) IC
Dual Ethernet LAN controller including an RJ-45 back panel connector with integrated status LEDs

BIOS

UEFI Bios
64+32Mb Dual SPI
Support for Advanced Configuration and Power Interface (ACPI) setting

Instantly Available PC Technology

Suspend to RAM support Wake on PCI Express, LAN, front panel, serial, and USB ports

Hardware Monitor Subsystem

Hardware monitoring through the Nuvoton6683D legacy I/O controller, including: Remote thermal sensor Speed control for 4-pin system fan header and 4-pin CPU fan header

Power Requirement

DC-in 19V (7.4mm*5.0mm / OD) / ATX 2-pin 19V

Environment

Operating Temperature: 0°C to +50°C Storage Temperature: -20°C to +70°C

Safety

CE FCC UL
