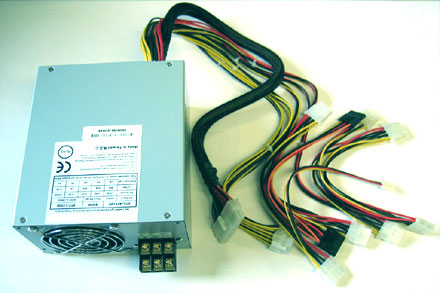

650W DC ATX Power Supply (9-18VDC) [12V]

650W DC ATX Power Supply (9-18VDC) [12V]

650W DC ATX P4 Power Supply (9-18VDC)

Now you can power every PC in your car. 650W power and Pentium-4 connector are giving you all possibilities !
The ATX connector has 24 pins. Along with the power supply there is a 24pol to 20pol ATX adapter included.



Note : Minimum power of 60W must be drawn at system startup time !
Share

609.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)
Add to cart
Dimensions 150mm[W] × 184mm[L] × 86mm[H] Standard ATX PS/2 size
Weight 4 kgs
Input Voltage Range 9 - 18VDC
Output Power maximum 650W
Output Power maximum (rails) +3.3V : 30A
+5.0V : 30A
+12.0V : 45A
Remote sensing +5V and +3.3V
Over Power Protection Load over 130%±10% of max. output power : shutdown
Over Voltage Protection +5V, +12V & +3.3V Auto-recovery
Short Circuit Protection Main outputs shutdown and latch off
Over Temperature Protection OTP Level is set at 110°C
Operating Temperature -20°C ~ +70°C
Storage Temperature -40°C~+80°C
Cooling Build-in One 80x80x25mm Ball Bearing Fan with max. air flow 42CFM
Data sheet Download (PDF)
Data sheet Print view
