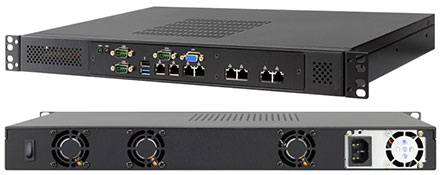

Jetway JBC153F9HB-2930B4 (Intel Bay Trail-M)

Jetway JBC153F9HB-2930B4 (Intel Bay Trail-M)

  • Intel® BayTrail-M N2930 Quad Core Processor
  • 2 * SO-DIMM DDR3L 1333MHz up to 8GB
  • 2 x Gigabit LAN , 2 x Bypass Gigabit LAN , 4 x Expansion Card Gigabit LAN
  • Form Factor : 430 x 251 x 44 mm
  • AC 90~240V_200W FLEX Power


Share

589.00 EUR
incl. 16% VAT, plus shipping
Available in 3-7 days

Add to cart
MB Model – JNF9HB-2930 / Mini-ITX
Part No Standard 4 ports GbE PCI-E expansion card 2 Paris of Bypass LAN expansion card
– HBJC153F9HB-2930-B – HBJC153F9HB-2930G4 – HBJC153F9HB-2930B4
BIOS – AMI 64MB SMT Flash ROM
CPU/Chipset – Intel® Bay Trail-M N2930 SoC Processor (Default)
Memory Support 2 * DDR3L 1333/1066MHz SO-DIMM up to 8GB
Storage – Support 2 * 2.5” SATA Drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– Support 1 * full-size mSATA/Mini-PCI Express shared slot
Expansion – 1 * full size Mini-PCIe
– 1 * SIM card slot
– Support TPM (optional)
Network – 4 * Intel i211AT GbE (1 pair support ByPass GbE)
– 1 * full-size Mini-PCIe slot (802.11 b/g/n + BT 4.0 installed in WiFi model)
Rear Panel I/O – 1 * Power switch
– AC input / 1U FLEX 200W Power build in
Front Panel I/O – 4 * RJ45 (1 pair support ByPass GbE)
– 1 * USB3.0)
– 1 * USB2.0)
– 1 * VGA)
– 2 * COM)
– 1 * PW LED, 1 * Alarm LED)
– 1 * GPIO (Not assembled when shipped, wire placed in the parts box))
– 4 ports GbE PCIe expansion card: HBJC153F9HB-2930G4)
– 2 pairs of Bypass LAN PCIe expansion card: HBJC153F9HB-2930B4
Power Source – 1U FLEX 200W Power build in
– AC 90~240V input
Compliance – CE, FCC, RoHS
Temperature – Operating temperature: 0 ~ 40° C
– Storage Temperature: -10 ~ 70° C
Dimensions – 430 (W) x 252 (D) x 44 (H) mm
Packing – Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimension: 560 (W) * 400 (D) * 380 (H) mm
OS Support – Windows 7, Windows 8.1, Windows 10, Linux
Warranty – 2 Years limited warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
