CTFPND-10C-8GB128GB (7" Android TabletPC/PND, Waterproof IP67, Ruggedized, 1.4-2.4Ghz Deca Core CPU/8GB RAM, GPS/WLAN/BT/3G/4G, Android 10)

CTFPND-10C-8GB128GB (7" Android TabletPC/PND, Waterproof IP67, Ruggedized, 1.4-2.4Ghz Deca Core CPU/8GB RAM, GPS/WLAN/BT/3G/4G, Android 10)

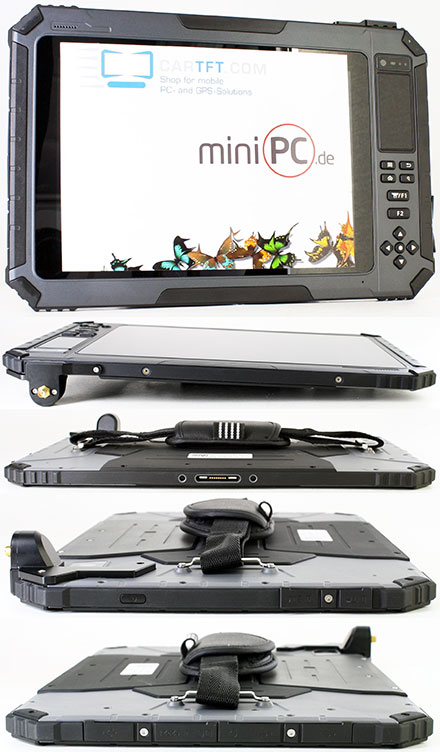

Introducing the new 10.1” capacitive multi touch display water resistant media tablet from CarTFT. CTFPND-10C-8GB128GB is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFPND-10C-8GB128GB keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFPND-10C-8GB128GB allows users to experience high definition (HD) content on the device.

● Deca-Core (10x) 1.4-2.4Ghz 64bit CPU, 8GB RAM, 128GB ROM !
● High performance media tablet with rugged design with IP67 rating
● Drop proo
[more]

Share

598.00 EUR
incl. 19% VAT, plus shipping
In Stock (3 pcs)

Add to cart

Introducing the new 10.1” capacitive multi touch display water resistant media tablet from CarTFT. CTFPND-10C-8GB128GB is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFPND-10C-8GB128GB keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFPND-10C-8GB128GB allows users to experience high definition (HD) content on the device.

● Deca-Core (10x) 1.4-2.4Ghz 64bit CPU, 8GB RAM, 128GB ROM !
● High performance media tablet with rugged design with IP67 rating
● Drop proof of 1M
● Dual Cameras (13MP/5MP)
● Speakers for high quality audio playback
● 10.1” sunligh-readable 1200nit capacitive multi touch screen
● True HD 1080P Video Playback & Output
● High capacity battery for an entire days use
● Android 10 support
● GPS/WLAN/BT/3G/4G !

If you have a project with serious size and are able to sign a NDA we can provide Androis-OS-system builder kit for this device which enables you to create your own Android OS image (eg. own boot logo, own preinstalled apps and settings, etc...) !

Dimension 320 x 228 x 12 mm
Weight from 760 g
Protection Level 1M drop proof & rugged design with IP67 rating
CPU MediaTek Helio X20 (MT6797) [2x ARM-A72@2.4GHz, 2x ARM-A53@2GHz, 2x ARM-A53@1.4GHz]
GPU Mali-T720
OS Android 10 (older version on request)
Memory 4 GB
Storage 128 GB ROM EMCP
Memory Slot MicroSD (max. 64GB)
GPS Chipset Built-In
Color Display 10.1" TFT LCD with Multi Capacitive Touch Screen
Panel Resolution & Brightness 1200 x 1920 Pixels IPS/AFFS
1200nits Sunlight readable
Battery Type Rechargeable Lithium Type
Battery Capacity 14600mAh
Speaker Yes
Sensors
Axis Accelerometer, Orientation, Gravity, Linear Acceleration, Rotation Vector, Magnetic Field, Gyroscope, Ambient Light Sensor
Cameras 13.0 Megapixels (rear side) [AF/Flash]
5.0 Megapixels (front side)
Wireless Interface WLAN 802.11a/b/g/n (2.4Ghz/5Ghz)
Bluetooth 4.0 LE (A2DP+EDR)
GSM/EDGE/GPRS/WAP (B2/B3/B5/B8)
WCDMA [HSDPA+/HSUPA+] (B1/B2/B5/B8)
TDSCDMA (B34/B39)
TD-LTE (B38/B39/B40/B41)
FDD LTE (B1/B3/B7)
I/O ports USB Type-C 24pin (Support OTG)
2x USB Host
DC port
RS232 port
3.5mm Headphone with Mic-in
Build-in Microphone
MicroSD Reader
Buttons (Menu, Back, Home, Search, Scan, Defined, Direction, Confirm, On/off)
SIM card slot
SMA GPS Antenna port (passive, female)
Environment Shock-proof : 1-19Hz/1.0mm ;19-200Hz/1.0g
Drop-proof : MIL-STD-810G/Method516.6/Procedure IV
Dust/Water proof : Class 6/7
Reliability : MTBF>50000h;MTTR<0.5h
Operating ambient temperature: -20° to 60°C
Nonoperating temperature: -40° to 80°C
Relative humidity: 5% to 95% noncondensing
Maximum operating altitude: 15,000 feet (4500 m)
Optional modules available (on request) - UHF RFID (902-928Mhz or 865-868Mhz)
- HF RFID/NFC (13.56M)
- LF RFID (125k or 134K with animal tag support)
- Barcode scanner (M3296/M3096/E203)
- Fingerprint module (G2010)
- GNSS GPS module with external antenna (RTK, 0.025m accuracy)
- RTD module with external antenna (GPS, Galileo, QZSS)
Scope of supply - CTFPND-10C-8GB128GB Android PND (grey color. Green/orange available with 100++ units order)
- Quick start Manual
- USB cable
- AC USB power adapter
- SIM-Card Adapter
Data sheet Download (PDF)
Data sheet Print view
Google Play Store Download
