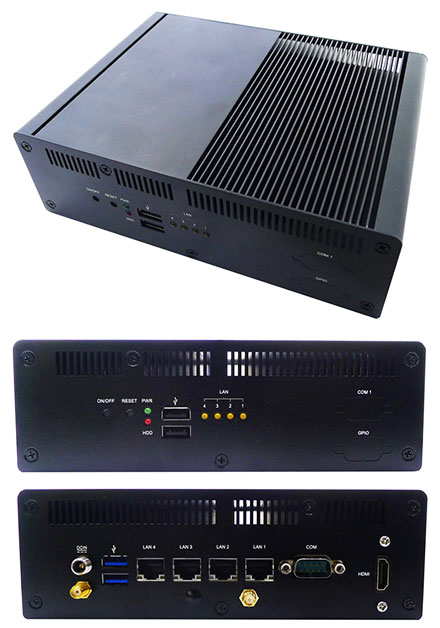

Jetway HBFDF731i-3955-V (Intel Kabylake, 4x LAN, WLAN)

Jetway HBFDF731i-3955-V (Intel Kabylake, 4x LAN, WLAN)
  • New Version 12/22 !

  • Intel® Skylake/Kabylake U-Series SoC Processor, Default: 3955U
  • 1* 260-pin Dual-channel DDR4 2133MHz SODIMM Up to 16 GB
  • 4* Ethernet Ports
  • 1* Full size Mini-SATA Socket (SATA + USB Signal)
  • 2* Mini PCIe Slots (1* full size, 1* half size)
  • 1* SIM card holder
  • Supports on board TPM2.0 (option)
  • 1* RS232 Console, 2* USB3.0, 2* USB2.0


Share

539.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – HBFDF731-3955-V (Default)
– HBFDF731Z-3955-V (Wifi)
– HBFDF731-3965-V
– HBFDF731Z-3965-V (Wifi)
CPU/Chipset – Intel® Skylake/Kabylake U-Series SoC Processor
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
BIOS – AMI Flash ROM
Memory – 1* SO-DIMM DDR4-2133MHz up to 16GB
Network – 1* Intel® i219LM GbE
– 3* Intel® i225V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* HDMI (Reserve, Max. resolution:4096 x 2304@24Hz)
Storage – 1* full size mSATA
– 1* 2.5” SATAIII Device (support 2.5” HDD with a height ≤ 10mm)
Expansion – 1* half size Mini PCIe slot (for WiFi expansion)
– 1* full size Mini PCIe slot with 1 * SIM card holder
Rear Panel I/O – 4 * RJ45 (3 * i225V + 1 * i219LM)
– 2 * USB3.0
– 1 * HDMI (Reserve, Max. resolution:4096 x 2304@24Hz)
– 1 * RS232
– 1 * DC-in jack
Front Panel I/O – 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB2.0
– 4 * NIC LED
– 1 * COM & 1 * GPIO (option)
Internal Connector – Onboard TPM2.0 (option)
Power Source – MB: DC-in 12V
– Adapter: AC_90~240V / DC_12V_5A / 60W
Compliance – CE, FCC, LVD Ready
Dimensions – System: 193 (W) x 142.4 (D) x 62 (H) mm
– Box: 250 (W) x 118 (D) x 295 (H) mm
Temperature – Operating Temperature: -20 ~ 50° C (Under the condition of using mSATA or SSD)
– Operating Temperature: 0 ~ 50° C (Under the condition of using 2.5” SATA HDD)
(The test environment is closed and windless)
– Storage Temperature: -20 ~ 70° C
– Humidity: Between 40% and 60%, non-condensing
OS Support – 32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
