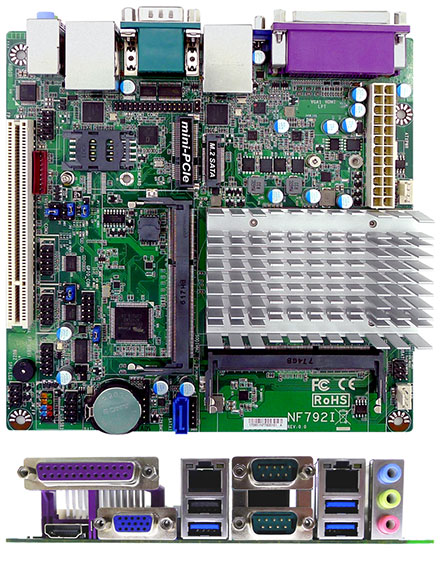

Jetway NF792i-3160 (Intel Braswell)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF792i-3160 (Intel Braswell)
  • 2x Intel I211-AT LAN

The JETWAY NF792I-3160 is a Mini-ITX form factor board adopts the Intel® Celeron N3160 SoC Processor. The board is support two 204-pins SODIMM DDR3L 1600Mhz memory, up to 8GB. Featuring the integrated Intel® i211AT Gigabit Ethernet controller for Gigabit Ethernet connection, the NF792I-3160 offers two 10/100/1000Base-TX Ethernet devices for network transmission. One SATAIII (6Gb/s) interface and one M.2 (M-key, 2242/2280) interface offer ample storage options. One PCI slot, one Mini PCIe interface, SIM card holder for 3G/LTE connection, three USB3.0 ports, five USB2.0 ports, one parallel port and four COM ports provide versatile expansion. The NF792I-3160 offers this multitude of expansion [more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Add to cart

The JETWAY NF792I-3160 is a Mini-ITX form factor board adopts the Intel® Celeron N3160 SoC Processor. The board is support two 204-pins SODIMM DDR3L 1600Mhz memory, up to 8GB. Featuring the integrated Intel® i211AT Gigabit Ethernet controller for Gigabit Ethernet connection, the NF792I-3160 offers two 10/100/1000Base-TX Ethernet devices for network transmission. One SATAIII (6Gb/s) interface and one M.2 (M-key, 2242/2280) interface offer ample storage options. One PCI slot, one Mini PCIe interface, SIM card holder for 3G/LTE connection, three USB3.0 ports, five USB2.0 ports, one parallel port and four COM ports provide versatile expansion. The NF792I-3160 offers this multitude of expansion interfaces so system integrators may be able to easily expand their embedded system and allow for increased versatility.

  • Intel® Celeron N3160 SoC Processor (TDP 6W)
  • 2 * 204-pin Dual-channel DDR3L 1600MHz SODIMM Up to 8 GB
  • 2* 10/100/1000 Base-TX Ethernet Ports
  • Support Intel AES NI and TPM (option) to secure customers data
  • 4 * COM, 3 * USB3.0 & 5 * USB2.0, 1 * HDMI, 1 * VGA, 1 * M.2 (M-key, 2242/2280)
  • 1 * PCI slot, 1* Mini PCIe slot (1* full size), 1 * SIM card holder

 Form Factor
Dimensions – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
 Processor System
CPU – Intel® Braswell N3160 Processor
Core Number – 4
Max Speed – 2.24GHz
L2 Cache – 2MB
Chipset – SoC
BIOS – AMI Flash ROM
 Expansion Slot
PCI – 1
Mini-PCIe – 1 (full size)
mSATA – 0
PCIe – 0
M.2 – 1 (M Key 2242/2260)
SIM Card Holder – 1
 Memory
Technology – Dual CH DDR3L 1600MHz SDRAM
Max. – 8GB
Socket – 2 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 1
LVDS – 1 (Max Resolution : 1920×1080@60Hz)
eDP 1.3 – 0
HDMI 1.4 – 1 (Max Resolution : 3840×2160@30Hz)
MultiDisplay – Triple Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 2 * Intel i211AT Gigabit LAN
Connector – 2 * RJ 45
 Audio
CODEC – HD Audio : Realtek ALC662VD
Channel – Line-In, Line-Out, MIC
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 1
HDMI – 1
Ethernet – 2
USB – 3 * USB 3.0 & 1 * USB 2.0
Audio – 1 (Line-in, Line-out, MIC)
Serial / Parallel – 2 / 1 (COM1: RS232/422/485)
PS2 – 0
DC-input – 0
 Internal Connector
USB – 4 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
HDMI – 0
Serial – 2
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 1 (full size)
mSATA – 0
M.2 – 1 (M key 2242/2260)
GPIO – 1 (8 bit)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
TPM Header – 1 (on board option)
SIM Card Holder – 1
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (10sec ~ 255min)
 Power Requirements
Input PWR – ATX power in
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, LVD, RoHS, REACH
 Environment
Temperature – Operating: 0°C – 60°C
– Storage: -20°C – 85°C
 Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
