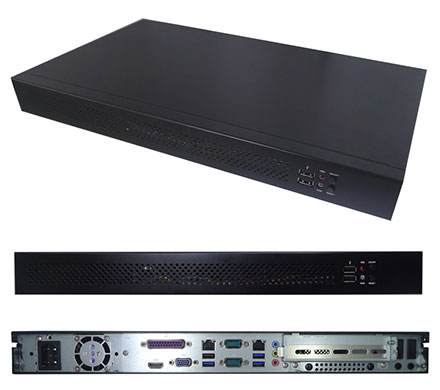

Jetway JBC150F792-3160R (Intel Braswell)

Jetway JBC150F792-3160R (Intel Braswell)
  • 12/22: New Model !
  • JBC150F792-3160B !

  • Intel® Braswell N3160 CPU
  • 2* DDR3L up to 8GB
  • 1* LPT, 1* HDMI, 1* VGA, 2* COM
  • Intel® Braswell N3160 Processor (TDP 6W)
  • Support DDR3L-1600, 2 * SO-DIMM slot, up to 8GB memory
  • 3 * USB2.0, 3 * USB3.0, 1 * HDMI, 1 * VGA, 2 * RJ45, 2 * COM, 1 * LPT, 1 * MIC, 1 * Line in, 1 * Line out


Share

579.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
MB Model –JNF792-3160 / Mini ITX
–Core Number : Braswell N3160 (Default)
Part No –HBJC150F792-3160R (non-WIFI)
–HBJC150F792W-3160R (WIFI)
BIOS –AMI 16MB SMT Flash ROM
CPU/Chipset –Intel® Braswell N3160 Processor (TDP 6W)
Memory –2 * SO-DIMM slots DDR3L-1600MHz up to 8GB
Storage –1 * 2.5” SATA3 6Gb/s internal drive bay
–1 * M.2 (M-key, 2242/2260)
Network –2* REALTEK RTL81191GbE
–1 * full-size Mini-PCIe slot (for WiFi expansion)
Rear Panel I/O –1 * Power, 1 * Reset SW
–1 * Power LED, 1 * HDD LED
–1 * USB2.0, 3 * USB3.0
–1 * HDMI (Max. resolution:3840×2160@30Hz)
–1 * VGA (Max. resolution:1920×1200@60Hz)
–1* LPT
–2 * RJ45
–1 * Line-in, 1 * Line-out, 1 * MIC
–2 * COM ports (COM1 supports RS232/422/485)
–2 * Antenna holes (Optional)
–1 * AC input
Front Panel I/O –1 * Power button, 1 * Reset button
–1 * Power LED, 1 * HDD LED
–2 * USB2.0 ports
Power Source –1U-250W / Support PFC / 150 (L) *81.5 (W) *40.5 (H) mm (FLEX)
FAN –4020 FAN * 3 / 7000 rpm / DC-12V-0.1A / 8 CFM
Expansion –PCI-E x1 * 1
Storage –3.5” HDD * 1 or 2.5” HDD * 2 (Support SATA 3)
Accessory –1 * Power Cord
–1 * Quick Installation Guide
–1 * User’s Manual
–1 * Screw Package
–1 * CD
Packing –Net Weight: 3.5KG
–Gross Weight: 4.5KG
–Color Box dimension: 530 (W) * 352 (D) * 142 (H) mm
Safety –CE , FCC , RoHS , REACH
Application –Automation
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
