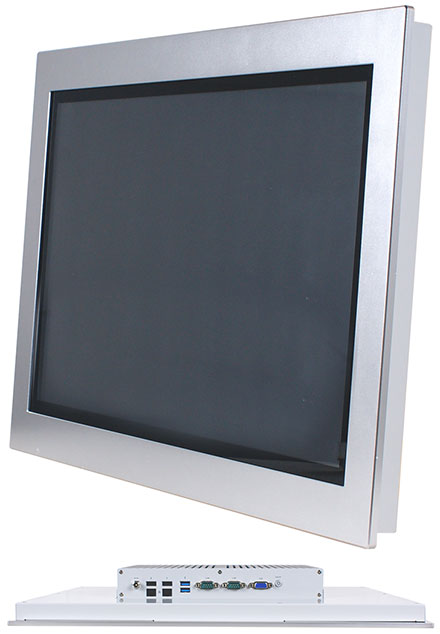

Jetway HPC-185SC-HD1900B Panel-PC (18.5" 1366x768 PCAP Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

Jetway HPC-185SC-HD1900B Panel-PC (18.5" 1366x768 PCAP Touchscreen, Intel Celeron J1900, 4GB RAM) [IP65/NEMA4 Front]

  • 18.5” 250 nits high brightness SVGA TFT LCD with LED backlight
  • Onboard Intel® Bay Trail-D J1900 2.0GHz Quad Cores CPU
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Support Dual Intel® Gigabit LAN
  • Support 4 * COM ports (COM1/2 Support RS232/422/485)
  • Support 2*USB3.0 + 2*USB2.0 ports
  • Support 2.5” SATA HDD, 1 * M.2 connector
  • 1 * Mini PCI-E
  • Support 4G SIM Card Socket
  • Support wide voltage input 9~28V
  • Plastic and IP65-rated front bezel


Share

1249.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
 Display
Front Bezel - IP65, NEMA 4 rugged protection, metal front bezel
Display Type - 18.5" With LED Backlight
Brightness ( cd/m²) - 250 nits
Display Color - 16.7M
Resolution - 1366 x768 @ 60Hz
Viewing Angle (H/V) - 178°/178°
Pixel Pitch - 0.3 x 0.3 mm
Aspect Ratio - 16:9
Contrast Ratio - 1000:1
Response Time - 5.5 ms
 Touch screen
Type - projected capacitive type
Active Range - 440.8 x 271.4mm ±2.0mm
Transparency - 85 ±5%
Surface Hardness - ≧ 6H (JIS-5400))
Glass haze value - ≦ 3%
 Main System
CPU - Intel® Bay Trail-D J1900 2.0GHz/QC
RAM - 4G 1333MHz DDR3L SAMSUNG DRAM
BIOS - 64MB SPI Flash ROM
Storage - 1 * 2.5” SATA HDD - 1 * M.2 connector (2242/2260/2280)
Watchdog Timer - 255 levels, 0~255 sec.
OS Support - Windows 7 / 8.1 / 10 / Linux
 I/O Connector
I/O Ports and Switches - 2 * USB3.0 - 2 * USB2.0 - 2 * RS232/422/485 - 1 * CRT - 2 * LAN (Intel® I211AT Gigabit LAN) - 1 * Locking Jack 9~28V DC input - 1 * Power button
 Expansion Interface
Expansion - 1 * PCI-E mini card for WIFI or 4G/3G
 Power
Power Input - AC version: 100~240V AC-DC 60W power adapter or - DC version: 9~28VDC with over current protection fuse
Power Consumption - 25W
Dimensions
Case Dimensions - 492*323*84mm
Packing Dimensions - Net Weight: 7.92KG
- Gross Weight: 9.71KG - Color Box dimension: 582*164*413mm
Certifications
Certifications - CE, FCC, IP65(Front)
 Environment
Temperature - Operating: -10°C ~ 60°C (with W.T. DRAM/HDD in airflow condition) - Operating: -10°C ~ 60°C (with W.T. DRAM/HDD)
- Storage: -20°C ~ 65°C
Shock - Operating: 15G,11ms duration
Vibration - Operating: 5~500Hz/1 Grms
 Warranty
Warranty - The warranty of 2 years, panel the warranty of 1 year
