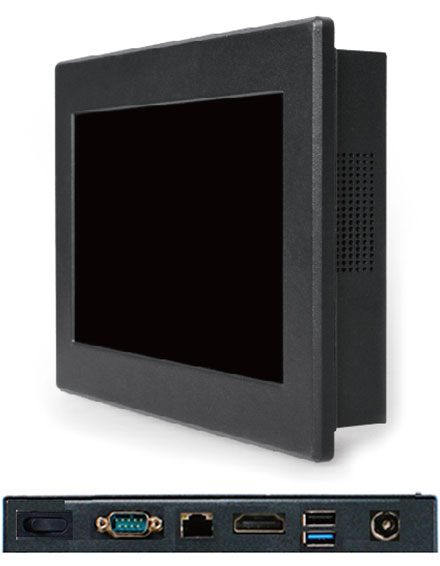

Jetway HPC-070B-2930-AB Panel-PC (7" 1024x600, Intel Celeron N2930, 2GB RAM)

PRODUCT IS CURRENTLY NOT AVAILABLE !

INTEL® BayTrail-M N2930 SOC
Onboard INTEL® BayTrail-M N2930 1.83GHz Quad Cores CPU
Onboard SAMSUNG 2G/1333MHz DDR3L Memory
Onboard 1* 32G M-Sata SSD
Support DirectX 11 3D Graphics Acceleration
Support 1* PCI-E Gigabit LAN
Support HDMI Output
Equipped with 802.11 b/g/n WIFI card & External Antenna
Support 1*Mini PCI-E Socket(Half size)
Support 1* USB2.0 Port
Support 1* USB3.0 Port
36mm thin, slice design
IP65 Rating(Option)
VESA mount(75mm x 75mm)

559.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

Panel
Panel Spec	HPC-070A
Viewable Size Image	7.0 inch With LED Backlight
Active Area	153.6(H) x90.0(V)
Resolution	1024 x 600 @60Hz
Display Color	16.7M
Pixel Pitch	0.150 x 0.150 mm
Aspect Ratio	16:9
Contrast Ratio	500:1
Max Brightness	320 cd/m²
Viewing Angle(H/V)	H150/V145
Response Time	30ms(Max)
Temperature Range	-20°C ～ +70°C(Operating)
Case
Panel Material	Alum
Case Material	Iron+ Alum
Color	Black
Coating Requirement	Spray Paint
Protection grade(IP)	IP65(Option)
Cooling Mode	Fanless Fully sealed design
System Specification
Form Factor	2.5”
Processor	INTEL® BayTrail-M N2930 1.83GHz/QC
System Chipset	INTEL® BayTrail-M N2930 (SOC)
System Memory	2G/1333MHz DDR3L SAMSUNG DRAM
BIOS	64MB SPI Flash ROM
Ethernet	1*Realtek® RTL8111G Gigabit LAN
Audio	Realtek® ALC662 HD Audio
Storage	1*32G M-SATA SSD
WIFI Module	N/A(Option)
Optical Device	N/A
Expansion	PCI-E mini card for WLAN
Display Output	HDMI
I.O Port	1USB3.0、1USB2.0、1RJ45、 1COM
Power Adapter	DC-IN (12V)
OS Support	Windows 7/8.1/10
Temperature	Operating：-10 ~ +70°C
Humidity	20%~90% (non condensing)
Shock	Operating：15G，11ms duration
Vibration	Operating：5~500Hz/1 Grms
Net Weight (kg)
Dimension	192.0129.036.0mm
Certification	FCC CE ROHS
Other	Support Non wire I.O interface output
Other Information
Application	Commercial、Banking、Digital Signage
Application	Industrial Automation
Special Features	Metal design, compact、slice
Other	Optional wall hanging telescopic bracket, etc., can also be used as the embedded security

Data sheet	Download (PDF)
Data sheet	Print view
