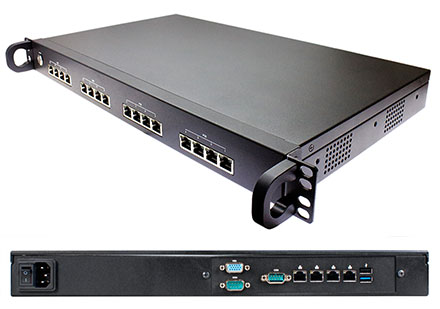

Jetway JBC152F53316-19G-B (Intel Bay Trail)

Jetway JBC152F53316-19G-B (Intel Bay Trail)

  • Intel Celeron Bay Trail J1900 SoC Processor
  • PoE Rackmount for Network Video Recorder (NVR) and Digital Security
  • Built-in 400W AC-DC Power with DC12V & 52V Output
  • 8/16 * LAN with PoE, up to 30W per port
  • Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at
  • ECO-design for EuP/ErP


Share

989.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Product Dimension 430 (W) * 252 (D) * 44 (H) mm
Product Model JBC152F53308-19G-B JBC152F53316-19G-B
MB Model & Size JNF533-1900 / 3.5” SBC
BIOS AMI 16MB SMT Flash ROM
CPU Intel® Bay Trail Processor J1900 (2.0 GHz) Quad Core
Memory 4GB on board DDR3L 1333 MHz
Storage 2.5” SATA HDD * 1
Front I/O Port Power Button with LED * 1 1000M RJ-45 * 8 & 16 (POE )
Rear I/O Port USB2.0 * 1 , USB3.0 * 1 Giga LAN Port * 4 COM * 1 (1 x RS232/422/485, 1 x RS232) VGA * 1 AC-IN & AC ON-OFF
1000M POE Port 10/100M/1000M Base-TX RJ45 Ports * 8 & 16 Conforms to IEEE802.3af, IEEE802.3at IEEE 802.3x full-duplex flow control , per port up to 23W For Switch : Marvell 88E6176 For PoE : MAX5980
Power Source 400W AC-DC OP Power inside / DC12V-3A & 52V-7A AC 90~240V input
Accessory AC Cable * 1 , Screw Package * 1 User Manual * 1 , CD * 1
Packing Net Weight:4.2KG Gross Weight:5KG Color Box Dimension:560 (W) x 400 (D) x 380 (H) mm
Temperature Operating Temperature : 0°C~60°C Storage Temperature : -10°C~70°C
Certification CE, FCC, RoHS, ErP
Applications Industrial Control System Networking Server System Security Industry
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
