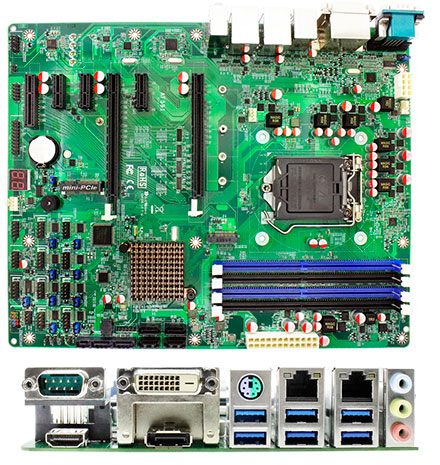

Jetway NAF591-Q170 (Intel Q170 Express)

Jetway NAF591-Q170 (Intel Q170 Express)

  • Intel® Q170 Express Chipset
  • Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
  • Support 4 * 288 pin 2133MHz Dual CH DDR4 SDRAM U-DIMM Max. up to 64GB
  • Intel i219LM & i211AT Gigabit LAN
  • Support Intel vPro, Active Management Technology ( iAMT 11.0)
  • Support TPM 2.0 function
  • Support CPU Smart FAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology
  • ATX form factor(305mm * 244mm)


Share

349.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
 Form Factor
Dimensions - ATX form factor(305mm * 244mm)
 Processor System
CPU - Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
Core Number - (by CPU)
Max Speed - (by CPU)
L2 Cache - (by CPU)
Chipset - Intel®Q170 Express chipset
BIOS - AMI 128Mb SMT Flash ROM
 Expansion Slot
PCI - 0
Mini-PCIe - 1 (full size)
mSATA - 0
PCIe - 6 [1 x16, 1 x8(shared with x16), 1 x4, 3 x1]
M.2 - 1 [PCIe x4 M-key, 2242/2260/2280/22110 shared with SATA1(ME FW option)]
CF Card Socket - 0
 Memory
Technology - 4 * DDR4 2133MHz Dual CH
Max. - 64GB
Socket - 4 * U-DIMM
 Graphics
Controller - (by CPU)
VRAM - Shared Memory
VGA - 0
LVDS - 0
HDMI 2.0 - 1 (Max. resolution 4096*2160@60Hz)
DVI-D - 1 (Max. resolution 1920*1080)
DisplayPort 1.2 - 1 (Max. resolution 4096*2304@60Hz)
MultiDisplay - Yes (Triple Display)
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel i219LM & i211AT
Connector - 2 * RJ 45
 SATA
Max Data Transfer Rate - 4 * SATAIII (6.0Gb/s), 1 * SATA Express Supports RAID 0/1/5/10
 Rear I/O
VGA - 0
DVI-D - 1
HDMI - 1
DisplayPort - 1
Ethernet - 2
USB - 6 (6 * USB 3.0)
Audio - 1 (Line-in / MIC / Line-out)
Serial - 1 (RS232/422/485 with 5V/12V selectable header)
eSATA - 0
PS2 - 1
DC-input - 0
 Internal Connector
USB - 4 ( 4 * USB 2.0)
PS2 - 0
LVDS / inverter - 0
VGA - 0
Serial - 9 (COM2 RS232/422/485, COM3~10 RS232 with 5V/12V selectable header)
SATA - 4 * SATAIII (6.0Gb/s), 1 * SATA Express
mPCIe - 1 (full size)
Parallel - 0
M.2 - 1 [PCIe x4 M-key, 2242/2260/2280/22110 shared with SATA1(ME FW option)]
CIR - 0
TPM Header - 1
GPIO 8-bit - 4in / 4 out
Chassis intrusion - 1
Audio Header - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - 24-pin/8-pin ATX PWR Con
Power On AT/ATX Supported
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
