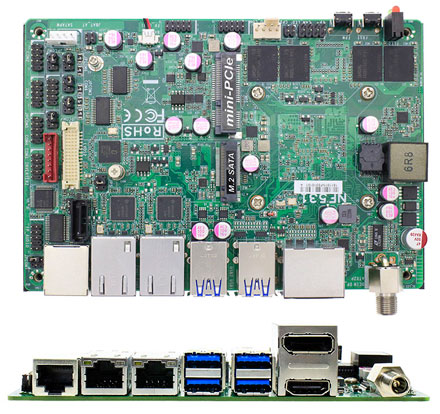

Jetway NF531D4-3150 (Intel Braswell)

Jetway NF531D4-3150 (Intel Braswell)

  • Intel® Braswell Processor
  • Onboard 2 / 4GB ( Default 4G )DDR3L 1600MHz
  • Support HDMI, Display Port , LVDS Triple Independent Displays
  • Intel i211AT Gigabit LAN, 2 * RJ45 ports
  • Integrated Realtek ALC662VD Audio CODEC with 6-CH
  • 1 * Serial ATAIII (6Gb/s)
  • 1 * External RS232(RJ45 Type) & 5 * Internal COM (COM 2 support RS232/422/485)
  • 4 * External USB3.0 & 2 * Internal USB1.1/2.0
  • 1 * Full size Mini PCIe , 1 * M.2 ( M key-2242 )
  • +9V~+36V Lockable DC-in Jack
  • 3.5” SBC Form Factor (148mm * 102mm)


Share

289.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart
Form Factor
Dimensions - 3.5” SBC (148 * 102mm)
 Processor System
CPU - Intel® Braswell N3150 2.08GHz
Core Number - 4
Max Speed - 2.24GHz
L2 Cache - 2M
Chipset - SoC
BIOS - AMI 64Mb Flash ROM
 Expansion Slot
Mini-PCIe - 1 (full size)
mSATA - 0
PCIe - 0
SIM card holder - 0
 Memory
Technology - On Board DDR3L 1600 MHz SDRAM
Max. - 4GB
Socket - 0
 Graphics
Controller - Intel® HD Graphics
VRAM - Shared Memory
VGA - 0
DVI-D - 0
LVDS - 1 ( 24-bits Dual Channel)
DisplayPort - 1 (Max.Resolution : 3840 * 2160@30Hz,2560 * 1600@60Hz)
HDMI - 1 (Max.Resolution : 3840 * 2160@30Hz,2560 * 1600@60Hz)
MultiDisplay - Yes ( Triple Independent Display )

 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - Intel i211AT Gigabit LAN
Connector - 2 * RJ 45
Audio
CODEC - HD Audio : Realtek ALC662VD
Channel - 6 Channel
 SATA
Max Data Transfer Rate - 1 * SATAIII (6.0Gb/s)
RAID - No
 Rear I/O
VGA - 0
DVI-D - 0
Display Port - 1
HDMI - 1
Ethernet - 2
USB - 4 * USB 3.0
Audio - 0
Serial - 1 (RJ-45 Type)
PS2 - 0
DC-input - 1 (+9V~+36V Lockable)
 Internal Connector
VGA - 0
USB - 2 * USB 2.0
LVDS / inverter - 1
Serial - 5 (4 * RS232 , COM 2 support RS232/422/485)
SATA - 1 (SATAIII 6.0Gb/s)
mPCIe - 1 (full size)
mSATA - 0
M.2 - 1 (M key-2242,SATA interface)
SIM card holder - 0
Chassis intrusion - 1
PS/2 - 0
GPIO - 1 ( 4in/4 out)
SMBUS/ I2C - 0
Audio Header - 1 ( Line Out & MIC)
Audio Amplifier Header - 0
AT mode - 1
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR +9V~+36V Lockable DC in
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
