CTFHD1210-S - HDMI 12.1" TFT - Touchscreen USB - Video - Audio [1024x768, 1000nits, Full metal enclosure, LED] -TRANSFLECTIVE-

CTFHD1210-S - HDMI 12.1" TFT - Touchscreen USB - Video - Audio [1024x768, 1000nits, Full metal enclosure, LED] <b>-TRANSFLECTIVE-</b>
  • Audio speakers !
  • Auto-PowerOn !
  • 1024x768 ! HDMI !
  • 1000 nits !

New ! With special sunlight readable transflective TFT and high contrast (700:1) and Anti-Glare surface !

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During d
[more]

Share

759.00 EUR
incl. 19% VAT, plus shipping
Available in 8 weeks

Add to cart
Compare
Front

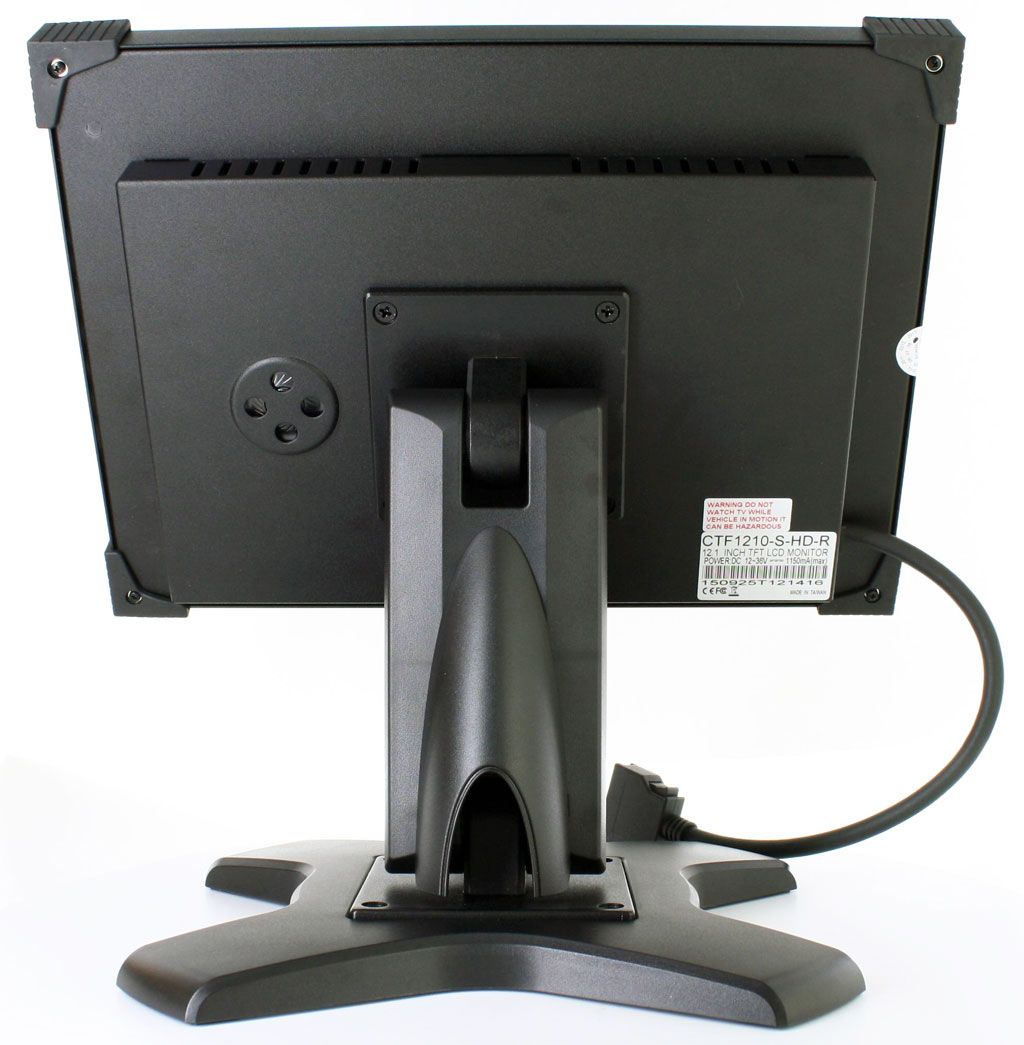

Rear
Side
LCD Size 12.1"
Aspect Ratio 4:3
VGA resolutions 640x480-1920x1200
Native resolution 1024x768
Dot resolution 3072x768
Brightness 1000
VGA Input HDMI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12/24VDC
Power Consumption 15W
Case size 303 x 223 x 40 mm
Visible area 246 x 185 mm
Certificates CE, E1, R118
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
no Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New ! With special sunlight readable transflective TFT and high contrast (700:1) and Anti-Glare surface !

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

The new CTFHD-1210-S TFT-Display is equipped with a 12.1" TFT panel and comes with many nice features. In any case it is the ideal display- and input-unit for your Laptop, CarPC or HTPC. Because of the 4:3 aspect ratio and the size of 12.1", the display is perfectly suitable for beeing used in POS-section or on boats. With the touchscreen functionality you easily can control your PC. The briliant HDMI-display ensures a maximum readability and sharpness.

The device has among other features integrated Stereo-speakers and an rear camera input.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTFHD-1210-S can be used with any PC/MAC with HDMI- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 12.1" digital
Touchscreen Resistive (also available without Touchscreen or with capacitive Multi-Touschreen)
Aspect Ratio 4:3 wide TFT screen
Dot Resolution 3072x768= 2,359,296 dots
Physical Resolution 1024x768
Viewing angle 80° (T/B/L/R)
Supported Resolutions 640x480-1920x1200
Color configuration RGB stripe
Power input DC 12/24VDC
Power consumption max. 15W
Video system 3x Video inputs (PAL/NTSC)
1x HDMI input
Dimensions Display Case : 303mm x 223mm x 40mm
Display : 246mm x 185mm
Video input signal 1.0Vp-p, composite video
Brightness 1000 cd/m²
Contrast 700:1
Vibration IEC68-2-6
Operating Temperature -30° bis 80°C
Automotive Certifications ECE R10 Electromagnetic compatibility (E13 10R-0514061)
ECE R118 Fire resistance (R24 118RII-020091)
Features Full function OSD control (englisch)
Built-in Stereo-speakers
VESA compliant mounting holes (75mm)
Auto Power On/Off
Automatic switching to rear camera (by a 12V cable)

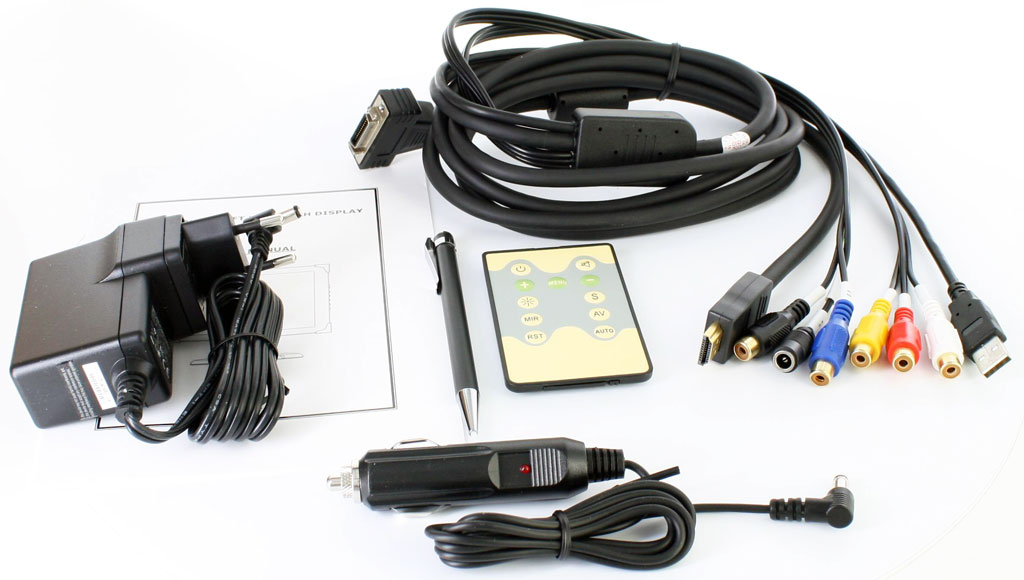

What is included ? - 12.1" HDMI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash VESA mounting bracket
- Touchscreen pencil
- HDMI/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
