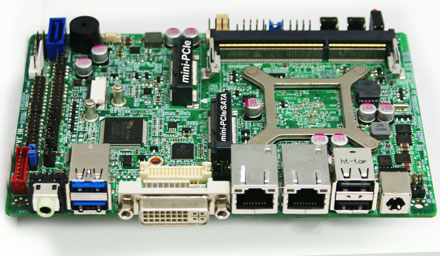

Jetway NF3A-2930 (Intel BayTrail)

Jetway NF3A-2930 (Intel BayTrail)

  • INTEL® Bay Trail-M N2930 SoC Processor (QC, 1.83G)
    INTEL® Bay Trail-I E3827 SoC Processor (DC, 1.75G)
  • Support 1 * DDR3L 1333/1066MHz Single CH up to 4GB
  • Support 1 * Serial ATAII (3Gb/s) Devices
  • Integrated Realtek ALC662 HD Audio CODEC with 2-CH
  • 1 * 24 bits Dual Channel LVDS header
  • Support DVI-I Output
  • Supports 2 * Realtek RT8111G Gigabit LAN
  • Support CPU Smart FAN
  • 148 x 102mm 3.5” SBC Form Factor




Share

239.00 EUR
incl. 19% VAT, plus shipping
Available in 3-7 days

Add to cart
CPU INTEL® Bay Trail-M N2930 SoC Processor (QC, 1.83GHz)
Chipset N/A
Memory 1 * DDR3L 1333/1066MHz Single CH SO-DIMM up to 4GB
Expansion Slots 2 * MINI PCI-E (one share with mSATA) socket
Storage 1 * Serial ATAII 3Gb/s connector
1 * mSATA socket
Audio Realtek ALC662 HD Audio CODEC with 2-Channel
Ethernet LAN 2 * RTL8111G PCI-E Gigabit LAN
USB Embedded 1 * USB 3.0 + 7 * USB 2.0/1.1
LVDS Onboard 1 * 24-bits Dual channel LVDS connector
Rear Panel I / O 1 * USB 3.0 port
3 * USB 2.0/1.1 ports
2 * RJ-45 ports
1 * Line-out port
1 * DVI-I port
1 * one-pin 9~24V DC-IN Jack
Internal I / O 2 * USB 2.0 header for 4 * USB 2.0 ports
1 * KB/MS header
1 * Audio header & 1 * HDMI-SPDIF header
Chassis Fan Connectors
1 * GPIO header
4 * COM headers (COM1 support RS232/422/485) & 4 * COM ports 5V/12V Selectable headers
1 * chassis intrusion header & 1 * AT mode selectable header
BIOS AMI 64MB SMT Flash ROM
Form Factor 3.5” SBC form factor (148mmx102mm)
Certificate CE,FCC,RoHS,ERP
Functional ATM, Automation, Medical Equipment, Security, General Application, Transportation, Digital Signage, Kiosk, POS machine, LCD TV PC, Embedded Fanless application
Temperature Operating within 0~60 centigrade
Storage within -20-85 centigrade
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
