| CPU
|
Support VIA Nano L2007 (65nm, 1.6GHz)processor
Front Side Bus 800MHz
|
|
Chipset
|
VIA VX900H Chipset
VIA Chrome9 HD DX9 3D engines ( Share System Memory: 64/128/256/512MB)
|
|
Memory
|
2 * 240-pin DIMM Sockets for un-buffered DDR3 1066MHz SDRAM up to 8GB
|
|
Expansion Slots
|
1 * 32-bit PCI slot
|
|
Power Management
|
ACPI S3/S4 Compliant ,supports VIA PowerSaver™ feature
|
|
Storage
|
2 * Serial ATA2 3Gb/s connectors with RAID 0,1 function
|
|
Audio
|
VIA VT1705 HD Audio Code with 6-Channel
|
|
Ethernet LAN
|
2 * RTL8111E 10 / 100 / 1000 PCI-E LAN
|
|
USB
|
Embedded 8 * USB 2.0/1.1
|
|
LVDS
|
Onboard 24-bit Single channel LVDS connector
|
|
Rear Panel I / O
|
4 * USB 2.0/1.1 ports
1 * PS/2 connector for Keyboard and Mouse
2 * RJ-45 ports
3 * Audio I/O ports ( Line-in, Mic and Line-out )
1 * VGA port
1 * DB-9 RS232 COM port
1 * HDMI Connector
|
|
Internal I / O
|
1 * CPU Smart Fan Connector, 2 * Sys/Chassis Fan Connectors
2 * USB 2.0/1.1 headers for 4 USB ports
1 * 9-Pin COM Port header
1 * 24 bit Single Channel LVDS header
1 * Parallel header
1 * GPIO header
1 * 24-pin ATX power connector
|
|
BIOS
|
Award 8MB DIP-SPI Flash ROM
|
|
Form Factor
|
Mini-ITX Embedded Motherboard(170mmx170mm)
|
|
Packing
|
Color Box Dimension：200(W) x 200(D) x 70(H)mm
20 PCS in Cases Gross Weight ：15.4KGS
20 PCS Net Weight：10.3KGS
20 PCS / Cases, Case size : 720(L) x 410(W) x 200(H)mm
|
|
Certificate
|
CE,FCC,RoHS
|
|
Functional
|
ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
|
|
Temperature
|
Operating within 0~60 centigrade
Storage within -20-85 centigrade |

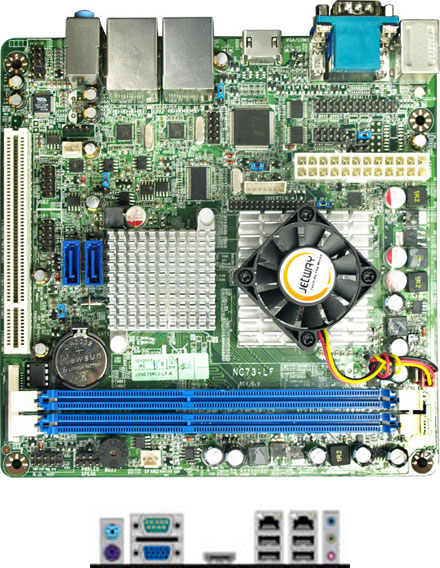

minipc.de![Jetway NC73-2007-LF (VIA VX900H) [Availability on request]](https://www.minipc.de/image_db/Jetway_NC73-2007-LF.jpg)
