MHD700-SH - VGA/DVI 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (600nits , Partly metal enclosure) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
MHD700-<b>SH</b> - VGA/DVI 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (<b>600nits , Partly metal enclosure</b>) <b>-TRANSFLECTIVE PRO-</b>
3D 360° View
  • DVI + D-SUB-15
  • One-cable-4-all !
  • Partly metal case !
  • 600 nits !

New ! With digital DVI input !

With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brillia
[more]

Share

398.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
2 ratings

Add to cart
Compare
Front
Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1080
Native resolution 800x480
Dot resolution 2400x480
Brightness 600
VGA Input D-SUB 15 + DVI
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 190 x 132 x 34 mm
Visible area 158 x 85 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
yes Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New ! With digital DVI input !

With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The MHD700 delivers an impressive 600 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is partially wrapped into a metal enclosure, the temperature range is -35°C to 85°C. The contrast ratio is 650:1.

The new MHD700 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The MHD700 can be used with any PC/MAC with VGA- (or DVI-) and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..




The display is vibration- and shock-tested (BS EN 61373 : 1999).


Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz


Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1080
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
1x DVI input
Dimensions Display Case : 190x132x34 mm
Display : 158 x 85 mm
Video input signal 1.0Vp-p, composite video
Brightness 650 cd/m²
Contrast 600:1
Vibration IEC68-2-6
Operating Temperature -30° bis 85°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Autodimmer
What is included ? - 7" VGA/DVI Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- DVI-cable
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)

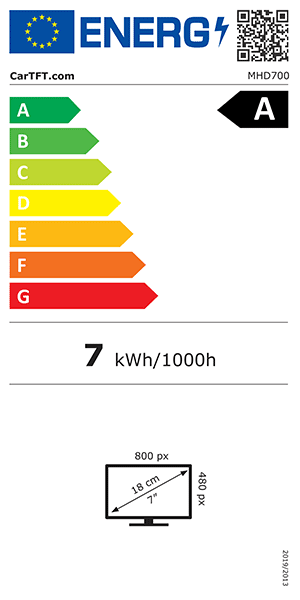

Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 2 ratings
5 von 5 Sternen from talidor am 19.03.2011 | | See all my comments

Der Sichtbarkeit ist auch bei direkter Sonneneinstrahlung sehr gut, genauso wie die Blickwinkelabhängigkeit. Touch funktioniert wunderbar, auch mit dem mitgelieferten Stift. Der Monitor läuft mit dem DC-DC USB Netzteil sowie dem M2-ATX problemlos. Die Treiber gibt es hier auf der Homepage (Touch und 800x480).

4 von 5 Sternen from alexmonovero am 20.10.2010 | See all my comments

A great screen to put it in the car since he has the new technology in order that it does not reflect with the solar light. In addition it has a tactile very useful paper
