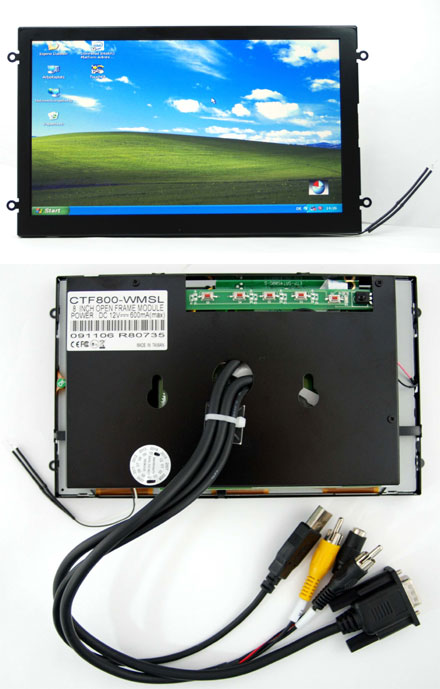

CTF800-WMSL - VGA 8.0" (16:9) TFT - Touchscreen USB - Video - OPEN-FRAME (500 nits, LED backlight) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF800-<b>WMSL</b> - VGA 8.0" (16:9) TFT - Touchscreen USB - Video - <b>OPEN-FRAME</b> (<b>500 nits, LED backlight</b>) <b>-TRANSFLECTIVE PRO-</b>
  • Open-Frame !
  • LED Backlight !
  • Auto Power On !
  • Sunlight Boosted !

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the re
[more]

Share

999.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

5 von 5 Sternen
9 ratings

Add to cart

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

New : LED-Backlight-Technology, with optimized color saturation enabling particular high and shining display. The scale of displayable color nuances is increased by 45% because of the new technology. Conventional LCDs are based on CCFL backlight, which can display approx. 72% of the standard color scale of NTSC (National Television Systems Committee). With LED-Backlight-Technology 104% of the NTSC-color scale can be displayed. This results in displaying in a highly realistic manner.

Note : This Open-Frame TFT display is an offer primarily meant for business and project customers. End consumers should only handle with unprotected electronic parts with appropriate experience.

Possible additional options (starting from a MOQ of 20 units):
- Speakers
- Different cable lengths
- Other display models/sizes
- Touchscreen RS232 instead of USB
- Other connector types
- [...] Ask us !


Additional informations :
With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

AC-Adapter for home usage and a car cigarette lighter adapter are included.

The CTF-800WMSL can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz

Specifications
Screen size 8.0" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Brightness 500 nits
Contrast 300:1
Operating temperature -30°C to 85°C
Power input DC 9-30V
Power consumption max. 10W
Video system 2x Video inputs (PAL/NTSC)
1x VGA input
Dimensions 195.4 x 119.5 x 32.6 mm
Display : 174 x 105 mm
Video input signal 1.0Vp-p, composite video
Features Full function OSD control (englisch)
Auto Power On/Off
LED backlight
Autodimmer
What is included ? - 8.0" VGA Open-Frame Touchscreen TFT with Video-support
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Dimensions Download
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 9 ratings
5 von 5 Sternen from adilenti am 17.08.2012 | See all my comments

Sehr gut ablesbar, kein vergleich zu den billig produkten!

4 von 5 Sternen from janneke am 11.10.2011 |

Hi! The screen seems to be very nice, screen is readable in sunshining and looks nice. Buttons are back on the screen and warrenty is out if you want to take those to out side (can be done but you must open the case so warranty is off). Screen menu and adjustment is ok. Screen is not working very good is you try to slide your finger on screen, it needs lots of presure. But like whit centrafuse it works good becouse you just need to tap the screen. So good screen afterall for that what it need it to be.

4 von 5 Sternen from Don111111 am 27.09.2011 | | See all my comments

Dieser Monitor ist der beste den ich hatte er hat eine sehr gute Verarbeitung Bild Quantität ist perfekt kann ich nur jedem weiter raten.

5 von 5 Sternen from csfrag am 18.06.2011 |

Top Monitor! Hatte erst zu einen billigen von Ebay gegriffen. Mit dem konnte man bei Sonnenlicht bzw. wenn's schon ein bisschen heller war kaum was sehen. Leider teures Lehrgeld^^. Im Centrafuse Forum wird der WMSL sehr gelobt. Das war dann meine Kaufentscheidung. Und ich muss sagen, das transflektive überzeugt unheimlich. Selbst wenn die Sonnen direkt einstrahlt, das Bild bleibt ordentlich sichtbar :) Auch vom Kontrastverhältnis und der Schärfe sieht der "kleine" sehr gut aus. Also lieber etwas länger sparen und gleich richtig kaufen ;) Fünf Sterne!!!

3 von 5 Sternen from gosep am 30.12.2010 | | See all my comments

Display ist ganz okay, nur leider lässt sich unter Windows XP und einen ION Board die Auflösung nicht einstellen....von Car-tft auch keine hilfe!
