Intel DG45FC (for Core2Duo FSB1333 [Socket 775], HDMI, DVI)
Stock situation : 1-3 days

FSB1333 ! HDMI ! DVI ! DirectX 10 !       Data sheet      Print view		. 999.00 EUR . incl.19% VAT    plus shipping

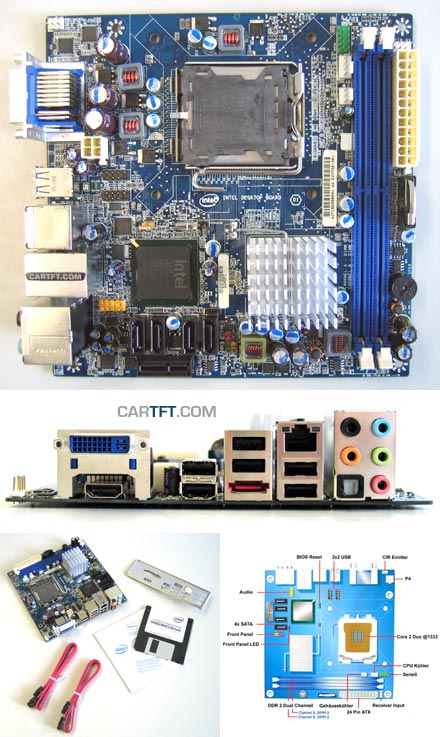

Intel DG45FC (for Core2Duo FSB1333 [Socket 775], HDMI, DVI) The Multimedia Desktop Board DG45FC is based on Intel G45 Express chipset with Sockel 775 for the Intel Core Duo family. The board is equipped with the Intel GMA X4500HD graphics chip, which supports DirectX 10 and takes load from the CPU when playing High Definition videos. The high amount of connectors and features like HDMI Port, Blue-Ray- and HD DVD-support, 8 channel audio, SPDIF and the outstanding performance are making this the perfect base for home cinema entertainment or carpc systems. Name DG45FC Form Factor Mini-ITX Mainboard CPU Intel Core 2 Duo , upto 13333FSB (Sockel 775) Chipset Intel G45 (ICH10) Graphics Intel GMA X4500HD Memory 2x DDR2 667/800 RAM (4GB max) Power 24 Pin ATX, P4-connector Connectors (rear) - 1x DVI - 1x HDMI - 6x USB 2.0 - 1x eSATA - Audio - 1x LAN 10/100/1000 MBit - SPDIF SATA 4x SATA-II (RAID), 1x eSATA Audio Intel High Definition Audio (8 channels) Connectors (internal) - PCIe 1x - Audio - 4x USB 2.0 - 4x SATA - 1x Serial Included - DG45FC Mainboard - I/O ATX rear plate - 2x SATA cable - Quickstart-Guide - Drivers CD, Raid Drivers Floppy disk Intel 3 years manufacturer warranty Note : The Original CPU heatsink which comes with Boxed CPUs is too heigh for almost all ITX enclosures. Thats why it does not fit into every enclosure. With LowProfile heatsink/fan compatible with : - M300(-LCD) - Morex enclosures 2699/3677/3777/3688 For Operating you need a P4 adapter or a PSU with P4 connector
BACK

.Support files
Review [DE]     Review [EN]

.Customer ratings from CarTFT.com  Product-Link
rodkendrick@blueyonder.co.uk | 18-06-2011 | Had Problems loading an Operating system - Windows XP, 7 and even Ubuntu would not load.the reason is the graphics drivers for the onboard card needs to be updated via the BIOS, this can be downloaded via the Intel website. Read all the info on bios flashing before doing it More sjyhtiot | 07-05-2010 | Good motherboard for carpc fabio77ts | 01-02-2010 | Scheda madre ottima, mi sono trovato veramente bene, peccatto che non abbia l'uscita s-video altrimenti era completissima. Cmq ottimo prodotto! 1  2  3  4     [ next >> ]
