CTF700-SH - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (800nits) -TRANSFLECTIVE PRO-

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTF700-<b>SH</b> - VGA 7" TFT - Touchscreen USB - Autodimmer - IR Remote - Audio (<b>800nits</b>) <b>-TRANSFLECTIVE PRO-</b>
3D 360° View
  • High brightness !
  • One-cable-4-all !
  • TRANSFLECTIVE !
  • 800 nits !

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the re
[more]

Share

419.00 EUR
incl. 19% VAT, plus shipping
Product currently unavailable. We check availability again when ordering.

4 von 5 Sternen
24 ratings

Add to cart
Compare
Front

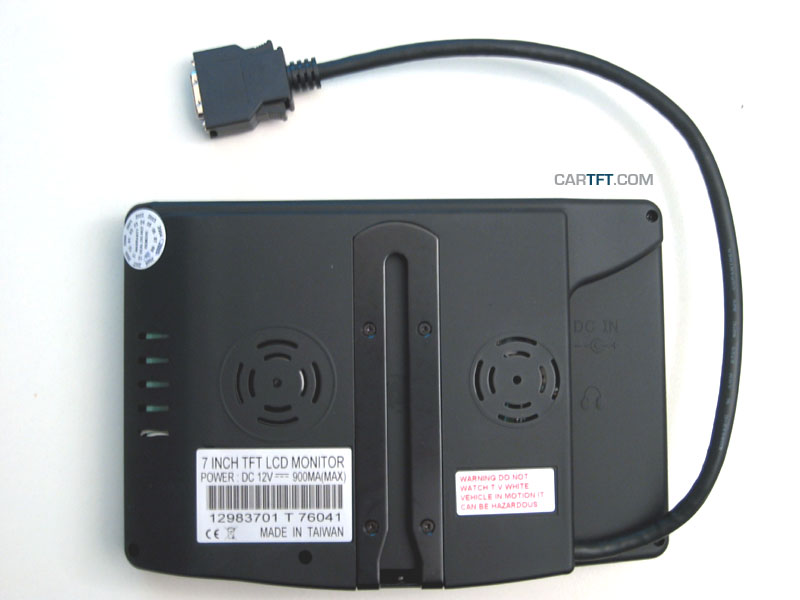

Rear
Side
LCD Size 7"
Aspect Ratio 16:9
VGA resolutions 640x480-1920x1200
Native resolution 800x480
Dot resolution 2400x480
Brightness 800
VGA Input D-SUB 15
Video Input 3x PAL/NTSC (RCA)
Audio Input 2x RCA (Stereo)
Touchscreen USB
Case color black
Power Input 12-24VDC
Power Consumption 9W
Case size 184 x 129 x 32 mm
Visible area 154 x 93 mm
Certificates CE, E1
Style On-Dash
yes Adjustable backlight
yes Auto Power-On
no Picture In Picture
yes IR Remote
no Headrest mount
yes TS pencil
yes Earphone
yes Adjustable video aspect
no Mirrorable video
yes Reverse camera input

New ! With special sunlight readable transflective TFT and Anti-Glare surface!

Using transflective panels and Anti-Glare touchscreens enables readability even under direct sunlight. For the first time with midrange-models, TFT panels with transflective technology are used. An anti-reflexion-coating additionally minimizes reflections on the surface. Transflective TFTs combine the advantages of reflexiv and transmissive display systems. The incoming light, which is making the surface of other display types to be unreadable, is reflected by the rear side of the panel. Because of this passive relexion the image is winning on brilliance. During dark light conditions the readability is still ensured by a transmissive backlight.

The CTF700-H delivers an impressive 800 cd/m2 light output – a light level that places it at the very top end of the market in terms of brightness. This light output is achieved with no increase in power consumption over previous models. The model is an active matrix transmissive TFT that offer robust industrial quality and performance with a wide operating temperature range of -30°C to 80°C.

The new CTF-700-H TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness.

The device has integrated Stereo-speakers, a rear camera input and the dimmer button in the front will enable perfect viewing pleasure also during the night.

AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable.

The CTF-700-H can be used with any PC/MAC with VGA- and USB port.

Driver-CD included, compatible with :
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..





Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz


CTF700-SH display in MAN TGX
Sunlight-readable-test with CTF700-SH in Death Valley (USA)

Spezifications
Screen size 7" digital
Aspect Ratio 16:9 wide TFT screen
Dot Resolution 2400x480= 1,152,000 dots
Physical Resolution 800x480
Supported Resolutions 640x480-1920x1200 (also eg. 1366x768)
Color configuration RGB stripe
Power input DC 11-24V
Power consumption max. 8W
Video system 3x Video inputs (PAL/NTSC)
1x VGA input
Dimensions Display Case : 184x129x32 mm
Display : 154 x 93 mm
Video input signal 1.0Vp-p, composite video
Brightness 800 cd/m²
Contrast 500:1
Vibration IEC68-2-6
Operating Temperature -30° to 80°C
Features Full function OSD control (englisch)
Built-in Stereo-speakers
Earphone-Output (rear side)
Automatic switching to rear camera (by signal detection on AV3)
Auto Power On/Off
Touchscreen-pencil integrated in rear enclosure
Autodimmer
What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support
- Infrared Remote Control
- Car dash mounting bracket
- Touchscreen pencil
- VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length
- Power Adapter f. EU 230V
- Cigarette Lighter Adapter
- Touchscreen Driver-CD
- Manual
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
800x480 Driver (Windows 7) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 24 ratings
3 von 5 Sternen from gponcon am 04.04.2013 | | See all my comments

Bonne connectivité. Performances et solidité un peu décevantes. Il n'a pas resisté à une chutte.

4 von 5 Sternen from alexmonovero am 20.10.2010 | See all my comments

A great screen to put it in the car since he has the new technology in order that it does not reflect with the solar light. In addition it has a tactile very useful paper

3 von 5 Sternen from Antimoses am 15.05.2010 | | See all my comments

Great picture, with a lot of brilliance and very readable in direct sunlight.
My only gripe is the touchscreen. It is very difficult to close/minimize/maximize windows because the screen does not react to pressure in it's edges. It's like there's an invisible non-touch area approx. 3-4 mm thick all around the edges.

5 von 5 Sternen from albert.steiner am 02.05.2010 | | See all my comments

Der bisher beste Monitor ich hoffe es bleibt dabei ...

Update from :2010-05-16 09:24
Funktioniert noch immer einwandfrei, TOP Produkt absolute Kaufempfehlung !!!

5 von 5 Sternen from kodiacc am 18.04.2010 | See all my comments

Bin begeistert von dem Monitor!!
Selbst bei starker Sonneneinstrahlung lässt sich noch alles bestens erkennen. Die Bedienung sowie die Einstellung ist kinderleicht. Das einzige was etwas stört, sind die Fingerabdrücke, die bei Sonne sehr gut zu sehen sind. Bei meinem alten Monitor hatte ich das nicht gehabt, dafür konnt man bei Sonneneinstrahlung auch nichts mehr erkennen.
Ich würde dem Monitor dennoch volle Punktzahl geben.

Mfg
