BACK : VGA Touchscreen

CTF400 - VGA 7" TFT - Touchscreen USB - Video - Autodimmer - Audio
Stock situation : in stock

Auto-Dimmer ! Audio speakers ! Rear CAM feature ! Auto-PowerOn !       Data sheet      Print view		. 298.00 EUR . incl.19% VAT    plus shipping

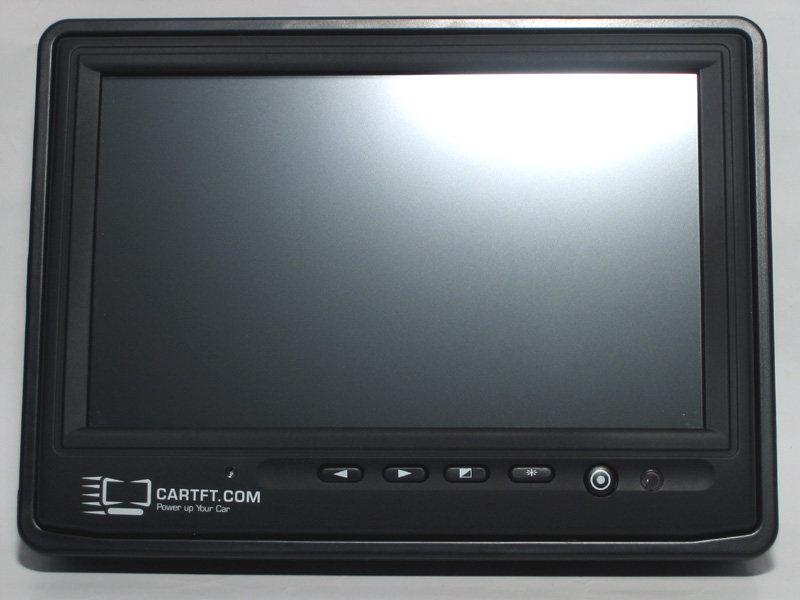

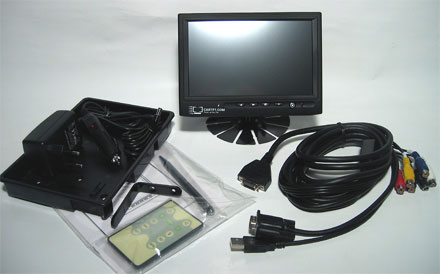

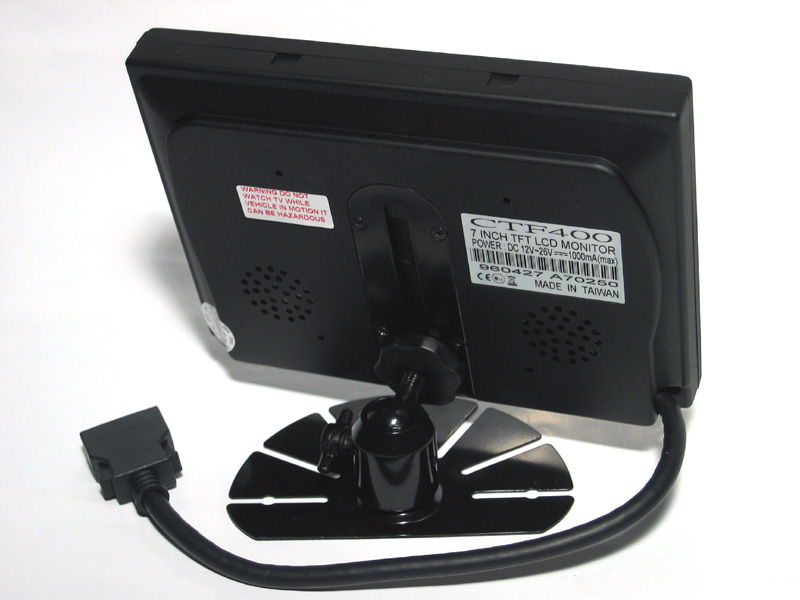

CTF400 - VGA 7" TFT - Touchscreen USB - Video - Autodimmer - Audio Front view Rear view Complete view LCD Size Aspect ratio Height to Width Capable PC-VGA resolutions Physical TFT resolution (=native resolution) Amount of showable pixel modes (RGB(=3)x native resolution) Maximum backlight in nits or cd/m² VGA connector Amount of video inputs and standard Amount of audio inputs Touchscreen connector Color of display housing Power input range (12VDC=car, 24VDC=lorry) Power consumption Housing dimensions Visible LCD area Certifications Weight (only display) Adjustable LCD backlight Display can turn on/off automatically, depending on signal status Picture-in-picture capability Infrared remote control unit for display Incl. headrest mounting unit Incl. touchscreen control pencil Earphone output Adjustable aspect ratio in video mode (4:3 or 16:9) Mirrorable video picture (video-mode) Input for rear camera Displays are tested for dead pixels prior to shipping. .TFT-Display Front Rear Full .Specifications LCD Size 7" Aspect Ratio 16:9 VGA Resolutions 640x480-1024x768 Physikal resolution 800x480 Dot resolution 2400x480 Brightness 400 VGA Input D-SUB 15 Video Input 3x PAL/NTSC (RCA) Audio Input 2x RCA (Stereo) Touchscreen USB Case color black Power Input 12-24VDC Power Consumption 9W Case size 178 x 128 x 28 mm Visible area 154 x 93 mm Certificates CE, E1 Weight 0 Bauform On-Dash Warranty months 24 .Features Adjustable backlight Auto Power-On Picture In Picture IR Remote Headrest mount TS pencil Earphone Adjustable video aspect Mirrorable video Reverse camera input Additional informations : The new CTF-400 TFT-Display is the ideal display- and input-unit for your Laptop, CarPC or HTPC. With the touchscreen functionality you easily can control your PC. The briliant VGA-display ensures a maximum readability and sharpness. The device has integrated Stereo-speakers, a rear camera input and the Auto dimmer sensor in the front will enable perfect viewing pleasure also during the night. AC-Adapter for home usage and a car cigarette lighter adapter is included as well as the IR-remote-control unit and the extra long (2,5 meters) All-In-One connector cable. The CTF-400 can be used with any PC/MAC with VGA- and USB port. Driver-CD included, compatible with : - Windows 95/98/ME/NT4/2000/XP - XP Tablet PC Edition - Windows CE 2.12, 3.0, .net - Linux RedHat,Mandrake,.. - Macintosh OS 9.x, 10.x - DOS,.. Spezifications Screen size 7" digital Aspect Ratio 16:9 wide TFT screen Dot Resolution 2400x480= 1,152,000 dots Physical Resolution 800x480 Supported Resolutions 640x480-1024x768 Color configuration RGB stripe Power input DC 12/24V Power consumption max. 8W Video system 3x Video inputs (PAL/NTSC) 1x VGA input Dimensions Display Case : 178x128x28 mm Display : 154 x 93 mm Video input signal 1.0Vp-p, composite video Brightness 400 cd/m² Contrast 350:1 Vibration IEC68-2-6 Operating Temperature -30° to 85°C Features Full function OSD control (englisch) Built-in Stereo-speakers Auto Power On/Off Auto-Dimmer VESA mounting holes (75mm) + metal rail Automatic switching to rear camera (by signal detection on AV3) What is included ? - 7" VGA Touchscreen TFT with Video/Audio-support - Infrared Remote Control - Car dash mounting bracket + headrest mounting shroud - Touchscreen pencil - VGA/Video/Audio/Touchscreen-cable (all-in-one !) 2,5 meters length - Power Adapter f. EU 230V - Cigarette Lighter Adapter - Touchscreen Driver-CD - Manual Displays with True-800x480-Support achieve a pixel accurate view at 800x480@70Hz
BACK

.Support files
Dimensions (PDF)     800x480 Driver (Windows 7)

.Customer ratings from CarTFT.com  Product-Link
Freaky Freak | 23-07-2010 | Sehr gutes Display mit guter Qualität Ich würde dass display aber direkt an 12V klemmen da dass display bei mir jedes mal beim einschalten einen hellen lichtblitz erzeugte sonst aber top Produkt Baroccoch | 10-12-2009 | Sehr schnelle Lieferung!!! Super TFT, auch die anschlüsse sind sehr einfach und praktisch. der standfus ist sehr einfach zu befestigen dank dem kleber und den vielen rillen für schrauben. die blid qal ität überzeugt sehr gut. More Mumpits | 07-12-2009 | habe ihn mit der Einbauschale in die Mittenkonsole meines Sciroccos eingebaut. Er macht sich sehr gut, die Qualität ist sehr gut und der Touchscreen reagiert präzise. Ich würde Ihn auf jeden Fall wie der kaufen, das Preis Leistungs Verhältnis stimmt! More 1  2  3  4  5  6  7  8  9     [ next >> ]
