Form Factor |

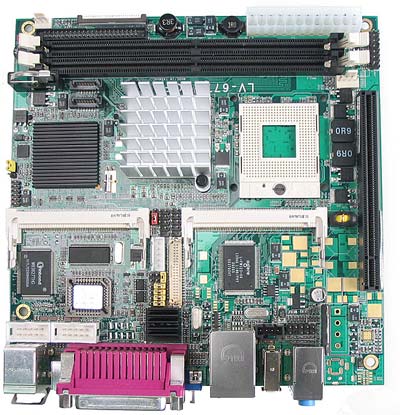

Mini-ITXexpress
Motherboard (170 x 170 mm) |
|
CPU |
Intel CoreTM Duo processor @ 533
/ 667 MHz FSB |
|
Memory |
2 x DDR2 533/667 MHz SDRAM
up to 3.0 GB |
|
Chipset |
Intel 945GM & ICH7M |
|
Real Time Clock |
Chipset integrated RTC with onboard lithium
battery |
|
Watchdog Timer |
Generates a system reset internal timer for
1min ~ 255 min |
|
Power Management |
ACPI 1.0 compliant, supports power saving mode
|
|
PCI Enhanced IDE |
1 x Ultra ATA/33 IDE channel up to 2 ATAPI devices |
|
VGA Interface |
Intel 945GM integrated GMA(Graphic Media Accelerator)
950 Technology |
|
Video Memory |
Up to 224MB shared with system memory |
|
Serial ATA Interface |
2 x Serial
ATA Interface with 150 MB/s transfer rate. |
|
Audio Interface |
Realtek ALC880 5.1 channel Audio |
|
LAN Interface |
1 x Intel 82537L Gigabit Ethernet |
|
Solid State Disk |
IDE1 supports 44-pin DiskOnModule +5V power
supply CompactFlash Type-II on the rear
. |
|
GPIO Interface |
Onboard programmable
8-bit digital I/O interface |
|
Extend Interface |
1 x Onboard x16 PCI-Express slot ( x1 mode compatible)
2 x Min-PCI
scoket |
|
External I/O Port |
1x RJ45 LAN port, 1x DB15 VGA port, 1 x PS/2
Keyboard / Mouse ports, 1 x TV-out, 1 x IEEE 1394 ports, 2 x USB 2.0 ports,
Audio, SPDIF , DC input connector ( LV-677DC version only) |
|
Internal I/O Port |
1 x RS232 & 1 x RS232/422/485, 1 x silm FDD,
1 x IrDA , 4 x USB 2.0, 1 x 8-bit GPIO,
1 x Audio, 1 x CDIN LVDS and LCD inverter
connector |
|
Power Requirement |
Standard 24-pin BTX power supply for LV-677
. ( 20-pin ATX is compatible)
8 V ~ 21 V full range DC input for LV-677DC
. |
|
Board Dimension |
170mm x 170 mm (L x
W) |
|
Operation Temperature |
0 ~ 60oC
(32 ~ 140oF) |
