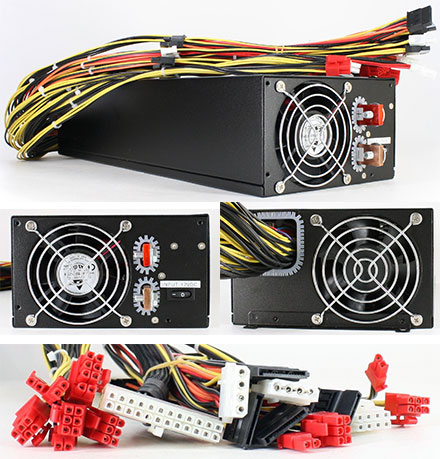

1500W DC ATX Power Supply (10-18VDC) [12V]

1500W DC ATX Power Supply (10-18VDC) [12V]
  • STC-121500H

1500W DC ATX P4 Power Supply (10-18VDC)

Now you can power every PC in your car. 1,5kW power is giving you all possibilities !
The ATX connector has 24 pins.



Note : Minimum power of 60W must be drawn at system startup time !


Share

2549.00 EUR
incl. 19% VAT, plus shipping
Available in 8 weeks

Add to cart
Dimensions 150mm[W] × 370mm[L] × 86mm[H] ATX PS/2 size
Weight 6 kgs
Input Voltage Range 10 - 18VDC
Output Power maximum 1500W
Output Power maximum (rails) +3.3V : 35A
+5.0V : 35A
+12.0V : 123A
Remote sensing +5V and +3.3V
Over Power Protection Load over 130%±10% of max. output power : shutdown
Over Voltage Protection +5V, +12V & +3.3V Auto-recovery
Short Circuit Protection Main outputs shutdown and latch off
Over Temperature Protection OTP Level is set at 110°C
Operating Temperature -20°C ~ +70°C
Storage Temperature -20°C~+80°C
Cooling Build-in 2x 80x80x25mm Ball Bearing Fan
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
